Installation Instructions 45-0023-WH (continued):
4.
To connect the receptacle on the Recessed Cable Plate with
Recessed Power to the piece of 12/2 or 14/2 with ground UL
approved building wire that you pulled from one opening in the
drywall to the second opening in the drywall, strip off
approximately 3 inches of the outer jacket of the UL approved
building wire. Be careful not to cut the jacket of the inner wires.
Connect the hot line (black) wire to the brass colored terminal
screw and neutral (white) wire to the silver colored terminal
screw. Be sure to connect the grounding (green) or bare
grounding wire to the green colored terminal screw (see
Figure 3).
5. Once you have wired the Recessed Cable Plate with Recessed
Power receptacle, begin by inserting the receptacle portion of
the plate into the retrofit work box. Once the entire recessed
plate is flush to the wall, using the two white screws supplied,
screw the receptacle portion of the plate to the work box. Next,
screw down the screws with wings. The wings will fasten tightly
against the back of the drywall. Plug all necessary video and
audio cables through the opening on the Recessed Cable Plate
with Recessed Power and down the wall to the opening you cut
out for the Recessed Cable Plate with Recessed Straight Blade
Inlet.
6. To connect the Recessed Cable Plate with Straight Blade Inlet to
the piece of 12/2 or 14/2 with ground UL approved building wire,
use the supplied three wire nuts. Connect the hot line (black)
wire to black wire, neutral (white) wire to white wire and
grounding (green) wire to the (green) or bare grounding wire
(see Figure 4). Make sure the three wire nuts are fastened
tightly. Plug all necessary video and audio cables through the
opening on the Recessed Cable Plate with Straight Blade Inlet.
Insert the straight blade inlet portion of the plate into the retrofit
work box. Once the entire recessed plate is flush to the wall,
using the two white screws supplied, screw the straight blade
inlet portion of the plate to the work box. Next, screw down the
screws with wings. The wings will fasten tightly against the back
of the drywall. Make sure to keep your UL approved building
wire away from the video and audio cables (see Figure 2).
7.
Install your flat panel TV mounting bracket per the flat panel TV
bracket manufacturer’s instructions. Make sure to read all
instructions.
8. Now plug your flat panel TV or TV/Projector into the Recessed
Cable Plate with Recessed Power (see Figure 1). Then plug
the female end of the supplied 6 ft. cord into the Recessed
Cable Plate with Recessed Straight Blade Inlet (see Figure 2)
and male end into either your surge protector or wall receptacle.
9. For shock protection, both the UR, UL recognized receptacle
and inlet components must be properly grounded.
10. Caution – use copper wire only with this receptacle and inlet.
WARNING
 DataComm Electronics’ products shall be installed and
used only as indicated in DataComm Electronics’ product
instruction sheets.
 Instruction sheets are available online at
www.datacommelectronics.com.
CAUTION
 For shock protection, this device must be properly
grounded.
 Use copper wire only with this device.
IMPORTANT INSTRUCTIONS
 Read and understand all instructions.
 Follow all warnings and instructions marked on the product.
 Do not use this product near water, for example near a bath
tub, wash bowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool.
 SAVE THESE INSTRUCTIONS.
3/19/10 Rev. 9
ONLY LICENSED PROFESSIONALS SHOULD INSTALL THIS PRODUCT
This product is patent protected by U.S. Patent numbers D553475, D554475 and 7390964.
Multiple patents pending.
RoHS Compliant.

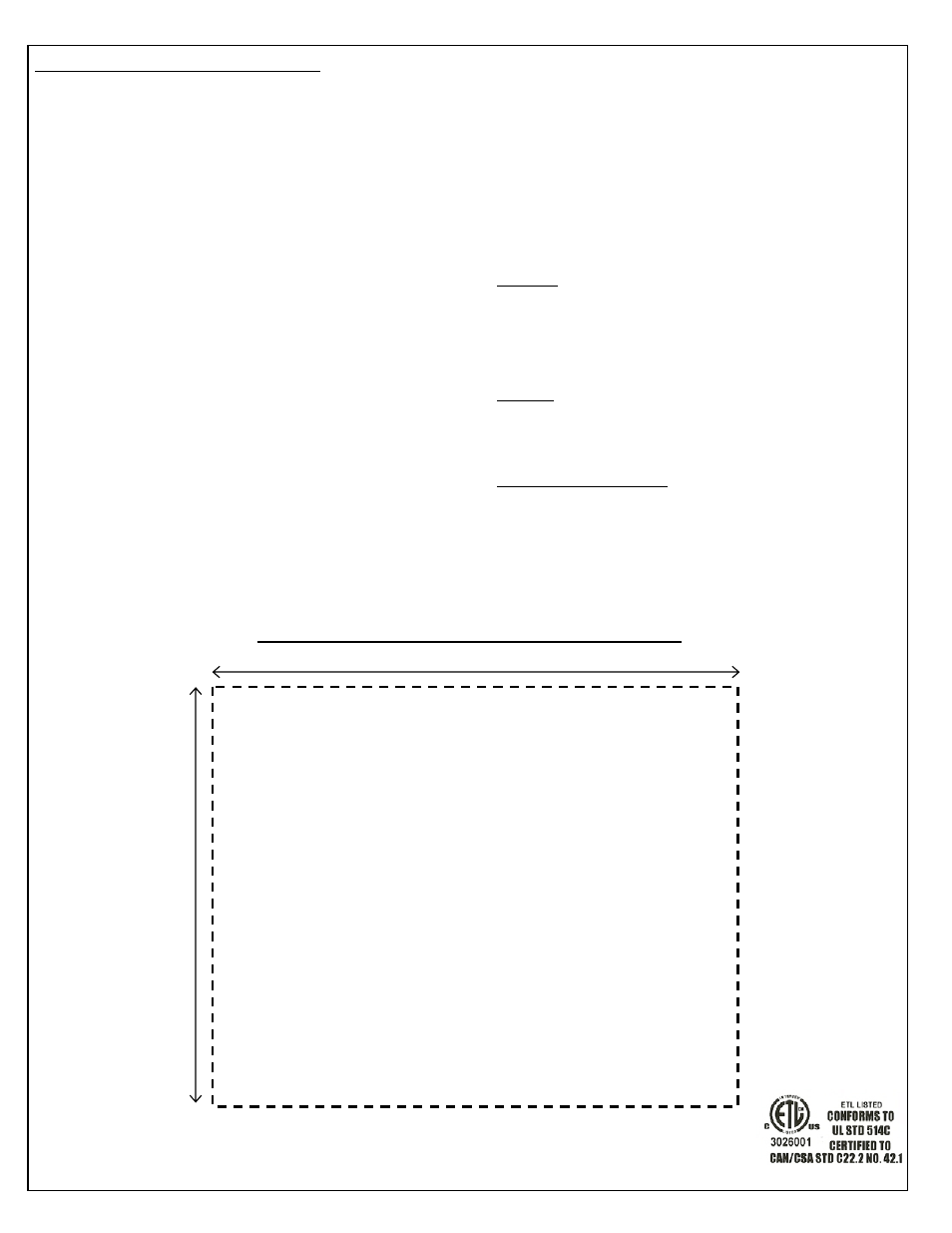

TEMPLATE
45-0021-WH Recessed Cable Plate
with Recessed Power
&
45-0023-WH Recessed Low Voltage
Cable Plate with Recessed Straight
Blade Inlet
ACTUAL SIZE
CUT ALONG DOTTED LINE 
3-3/4”
