Technical Data:
Model : IVQ - Injection Quill (non-serviceable check valve)
Size: 1/2"
Connections: 1/2" NPT Double Thread (Male)
Maximum Temperature: 400°F (204°C)
Maximum Operating Pressure: 3500 psi (241 bar)
Valve Opening Pressure: 10 psi (0.7 Bar)
Materials of Construction:
Valve Ball: 316SS, Alloy 20, or Hastelloy C
Spring Hastelloy C
Valve Body 316SS, Alloy 20, or Hastelloy C

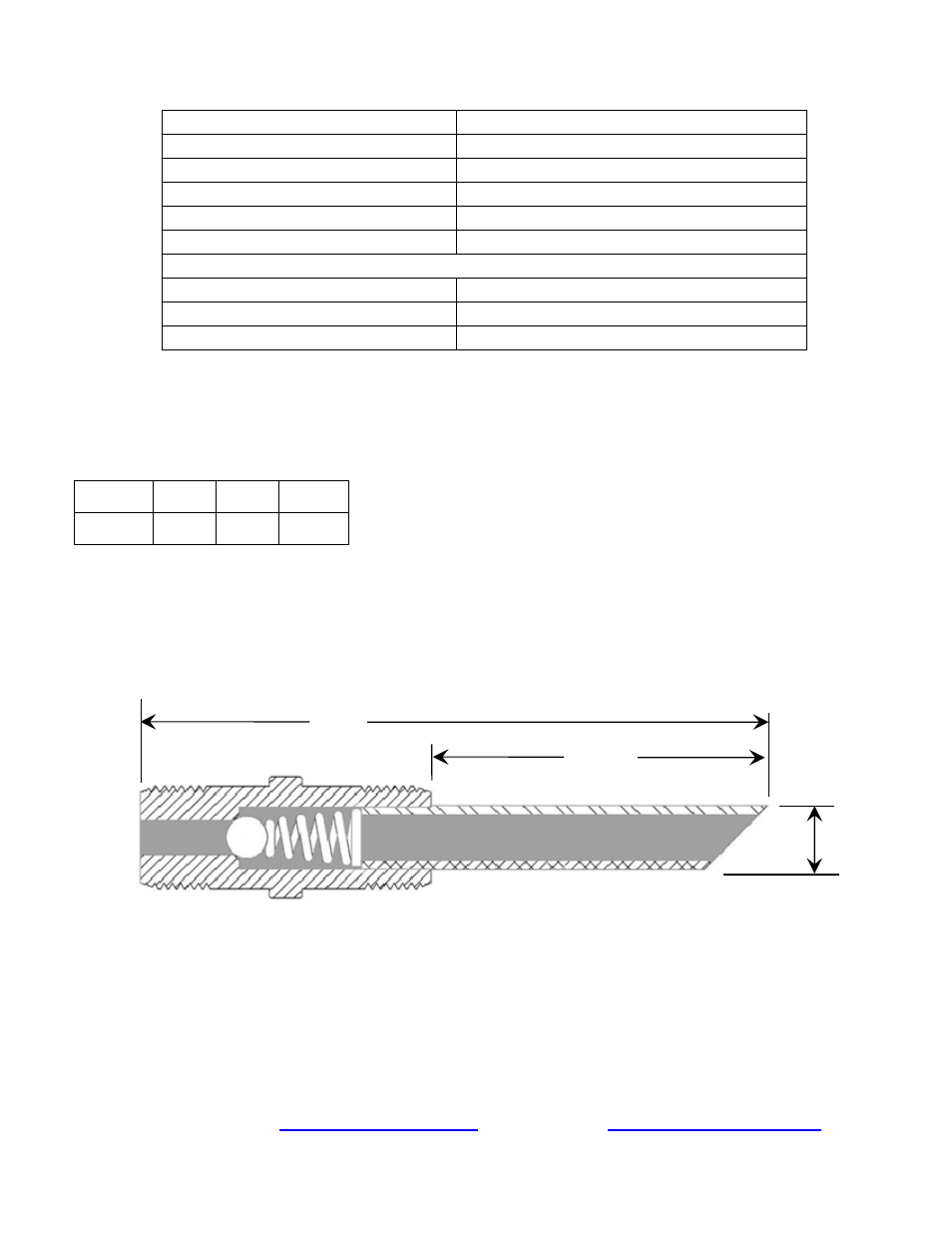

Dimensions:
* Standard length
Web Site: www.griffcovalve.com E-mail: [email protected]
Size A B C
1/2” 6.5” 4” * .688”
Product Codes for Ordering:
IVQ
□□□ □ □ □
1 2 3 4
1 = Size 2 = Material 3 =Quill Length 4 = Options
050 – 1/2” S - 316 SS Blank – 4” (std) Blank - 45° Tip (std)
A - Alloy 20
C - Hastelloy C
A
B
C
