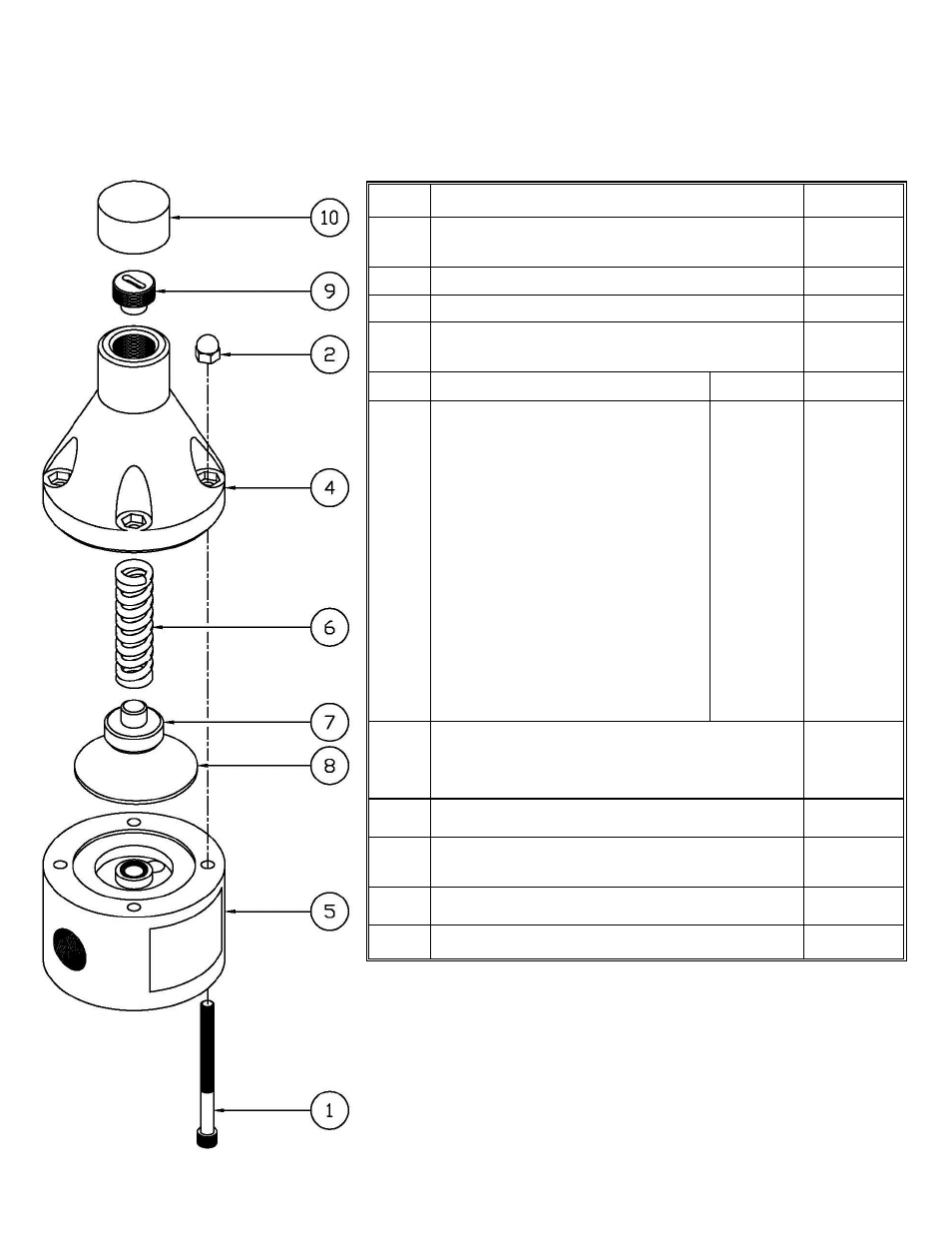

PARTS LIST
ITEM
DESCRIPTION
PART #
1
10/32 X 2 1/2" Bolt - M-Series 1/2
” Plastic Valves
10/32 X 1 3/4 Bolt - M-Series 1/4
” – 3/8” Plastic Valves
10/32 X 3/4" Bolt
– M-Series Metal Valves
PV-00113
PV-00106
PV-00107
2
10/32 Cap Nut - SS
PV-00201
3
10/32 Flat Washer (For Metal Valves with Metal tops)
PV-00301
4
1/4
” - 1/2” Valve Top – Noryl. Black
1/2"
– External Adjustment Valve Top – PVC (Tiberian)
1/4
” - 1/2” Valve Top - 316 SS
PV-004040
PV-004029
PV-00403
BPV #
PRV #
5
1/4
” Valve Body PVC
1/4" Valve Body PP
1/4
” Valve Body PTFE
1/4
” Valve Body PVDF
1/4
” Valve Body 316 SS
1/4
” Valve Body Alloy 20
1/4
” Valve Body Hast C
1/4" Valve Body CPVC
3/8
” Valve Body PVC
3/8
” Valve Body PP
3/8
” Valve Body PTFE
3/8
” Valve Body PVDF
3/8
” Valve Body 316 SS
3/8
” Valve Body Alloy 20
3/8
” Valve Body Hast C
3/8
” Valve Body CPVC
1/2
” Valve Body PVC
1/2
” Valve Body PP
1/2
” Valve Body PTFE
1/2
” Valve Body PVDF
1/2
” Valve Body 316 SS
1/2
” Valve Body Alloy 20
1/2
” Valve Body Hast C
1/2
” Valve Body CPVC
BPM-00501
BPM-00502
BPM-00503
BPM-00504
BPV-00505
BPV-00506
BPV-00507
BPM-00508
BPM-00561
BPM-00562
BPM-00563
BPM-00564
BPV-00565
BPV-00566
BPV-00567
BPM-00568
BPM-00511
BPM-00512
BPM-00513
BPM-00514
BPV-005151
BPV-005161
BPV-005171
BPM-00518
PRM-00501
PRM-00502
PRM-00503
PRM-00504
PRV-00505
PRV-00506
PRV-00507
PRM-00508
PRM-00561
PRM-00562
PRM-00563
PRM-00564
PRV-00565
PRV-00566
PRV-00567
PRM-00568
PRM-00511
PRM-00512
PRM-00513
PRM-00514
PRV-005151
PRV-005161
PRV-005171
PRM-00518
6
Pressure Spring - 1/4
” - 1/2” Valve; 150 psi
Pressure Spring - 1/4
” - 1/2” Valve; 50 psi
Pressure Spring - 1/4
” - 1/2” Valve; 250 psi
Pressure Spring - 1/4
” - 1/2” Valve; 350 psi (Metal Valves w/Metal tops)
Pressure Spring - 1/4
” - 1/2” Valve; 100 psi, 316 SS
PV-00601
PV-006011
PV-006013
PV-006012
PV-00601S
7
Support Disc - 1/4
” - 1/2” Valve, PVC
Support Disc - 1/4
” - 1/2” Valve, 316 SS
PV-00701
PV-00702
8
Diaphragm - 1/4
” - 1/2” Valve - PTFE / EPDM
Diaphragm - 1/4
” - 1/2” Valve – Viton
Diaphragm - 1/4
” - 1/2” Valve - PTFE / Viton (High Temperature)
PV-00800
PV-00802
PV-00803
9
Adjustment Screw - 1/4
” - 1/2” Valve PET (White)
Adjustment Screw - 1/4
” - 1/2” Valve Coated Steel
PV-00906
PV-00903
10
Protective Vinyl Cap
– Small (For Valves w/ OSS & MSS options)
Protective Vinyl Cap
– X-small
PV-01001
PV-010011
