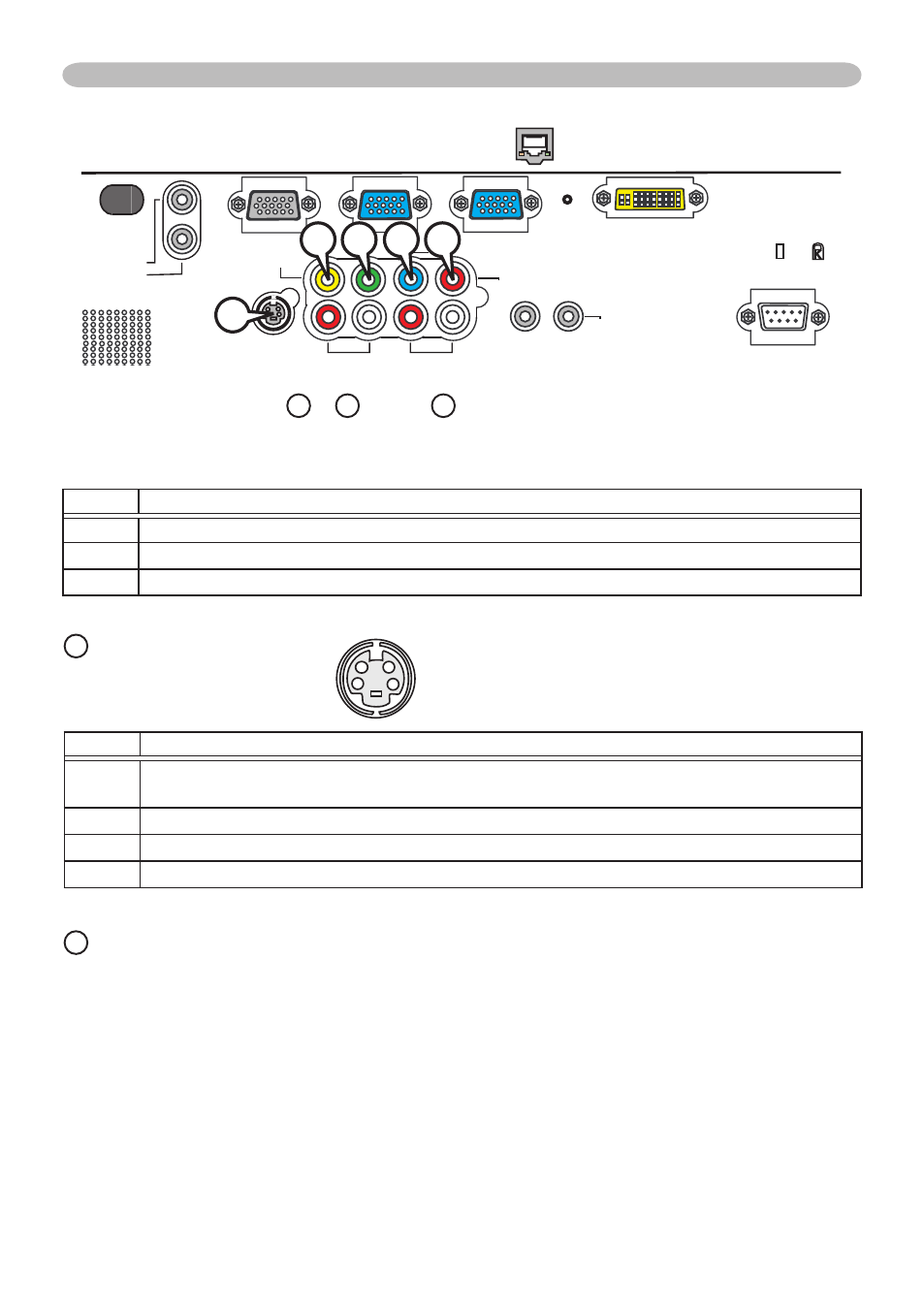

Connection to the ports (continued)
4 3
2
I VIDEO
RCA jack
• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43
• 1.0±0.1Vp-p, 75Ω terminator
H S-VIDEO
Mini DIN 4pin jack
Pin Signal
Color signal 0.286Vp-p (NTSC, burst), 75Ω terminator
Color signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator
2 Brightness signal, 1.0Vp-p, 75Ω terminator
3 Ground
4 Ground
COMPONENT VIDEO E Y, F C
B
/P
B
, G C
R
/P
R
RCA jack x3
• System: 525i(480i), 525p(480p), 625i(576i), 750p(720p), 25i(080i)
Port Signal
Y Component video Y, 1.0±0.1Vp-p, 75Ω terminator with composite
C
B
/P
B
Component video C
B
/P
B
, 0.7±0.1Vp-p, 75Ω terminator
C
R
/P
R
Component video C
R
/P
R
, 0.7±0.1Vp-p, 75Ω terminator
