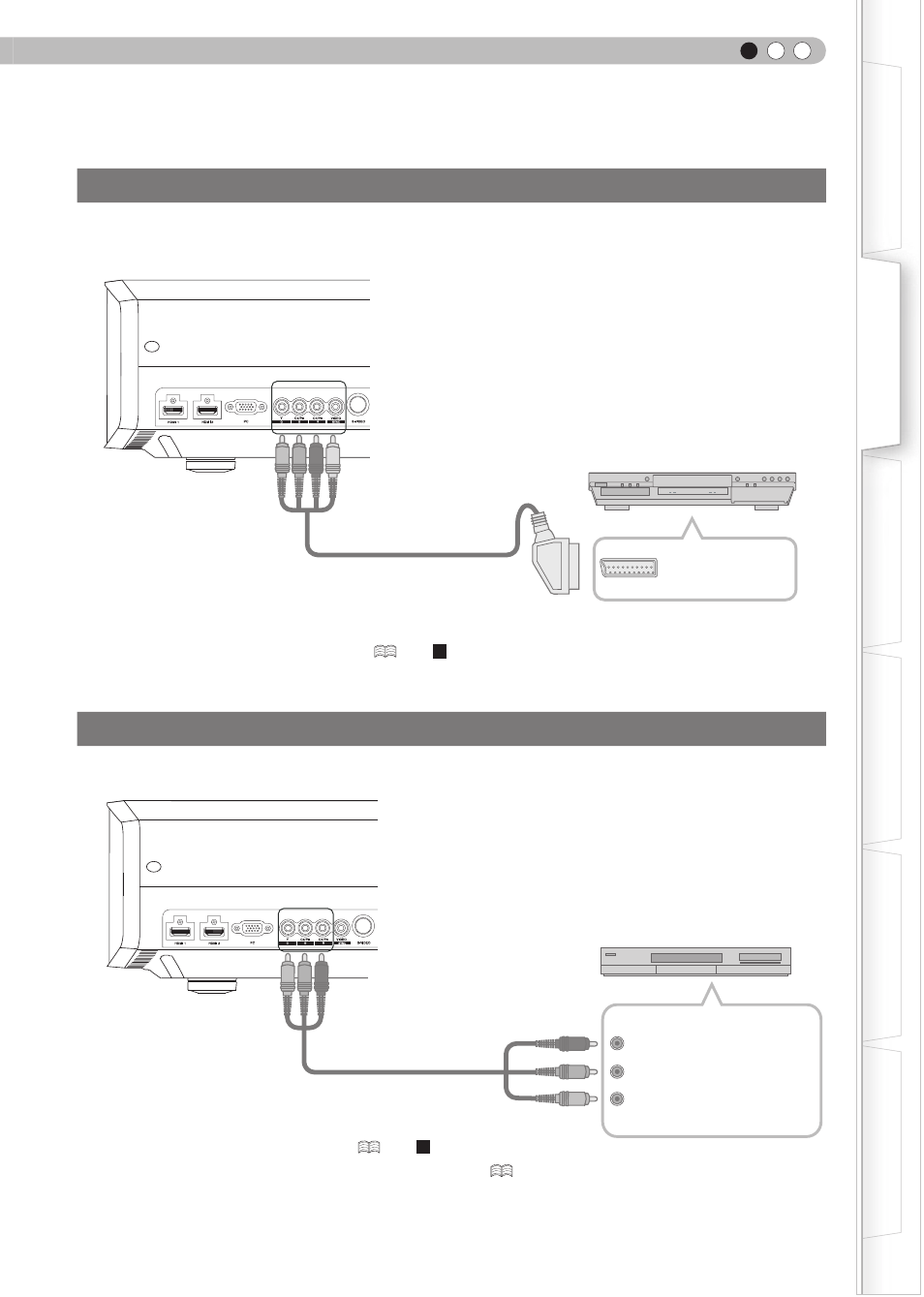

Connecting via SCART-RCA Cable
●
Set “COMP.” in the setting menu to “SCART”. (
Connecting via RGB Video Cable
●
Set “COMP.” in the setting menu to “RGB”. (
●
For information on compatible input signals, see “Specifications”. (
P58)
This unit
To RGB video input terminals
RGB video cable
(sold separately)
R (Red)
B (Blue)
G (Green)
(Includes sync signals)
RGB video output terminals
Device equipped with RGB output
RS-232C
This unit
BD/DVD player for European market
SCART terminal
SCART-RCA cable
(sold separately)
To RGB video and
sync signal input terminals
