ASSEMBLY INSTRUCTIONS

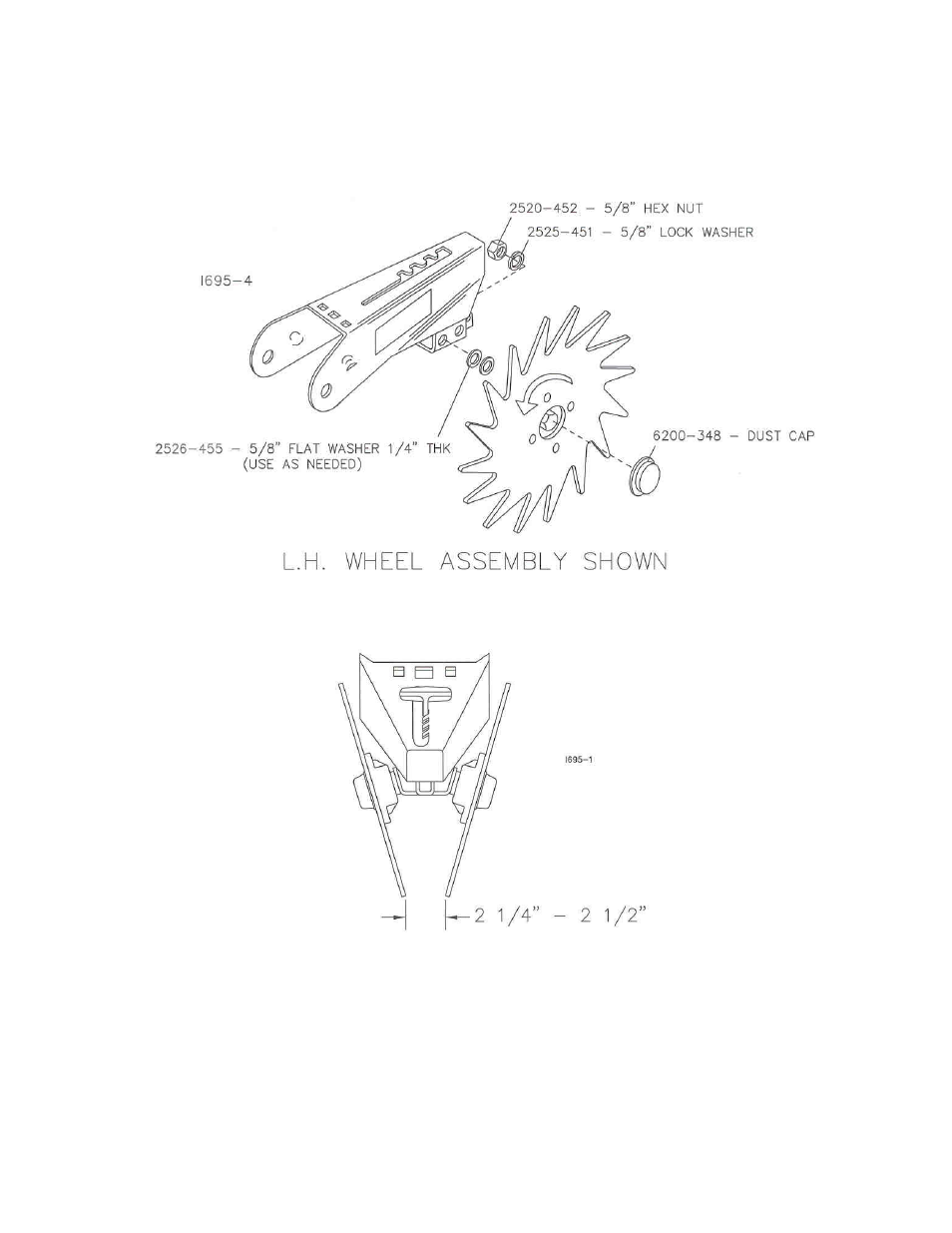

STEP 2. Attach the wheel assemblies to the close wheel arm. NOTE: The direction
that the spoke wheels are assembled must correspond to the side of the close wheel
arm that it is mounted to.
STEP 3. Space the wheels, using the 5/8” flat washers as needed, so that the distance
at the bottom of the wheels is approximately 2-1/4”-2-1/2”.
STEP 4. Adjust the close wheel spring tension as necessary. If the seed trench is not
being closed properly, increase closing wheel spring pressure. Closing wheels must not
sink into the soil too deeply, the seed placement could be adversely affected, especially
when planting shallow. If the closing wheels are applying too much pressure and the
seed is being moved by the closing wheels, decrease closing wheel pressure. Light
soils usually require less down pressure; heavy soils more down pressure. Optional
depth bands are available 2967-186.
2565-723 * 5/08
