ASSEMBLY INSTRUCTIONS

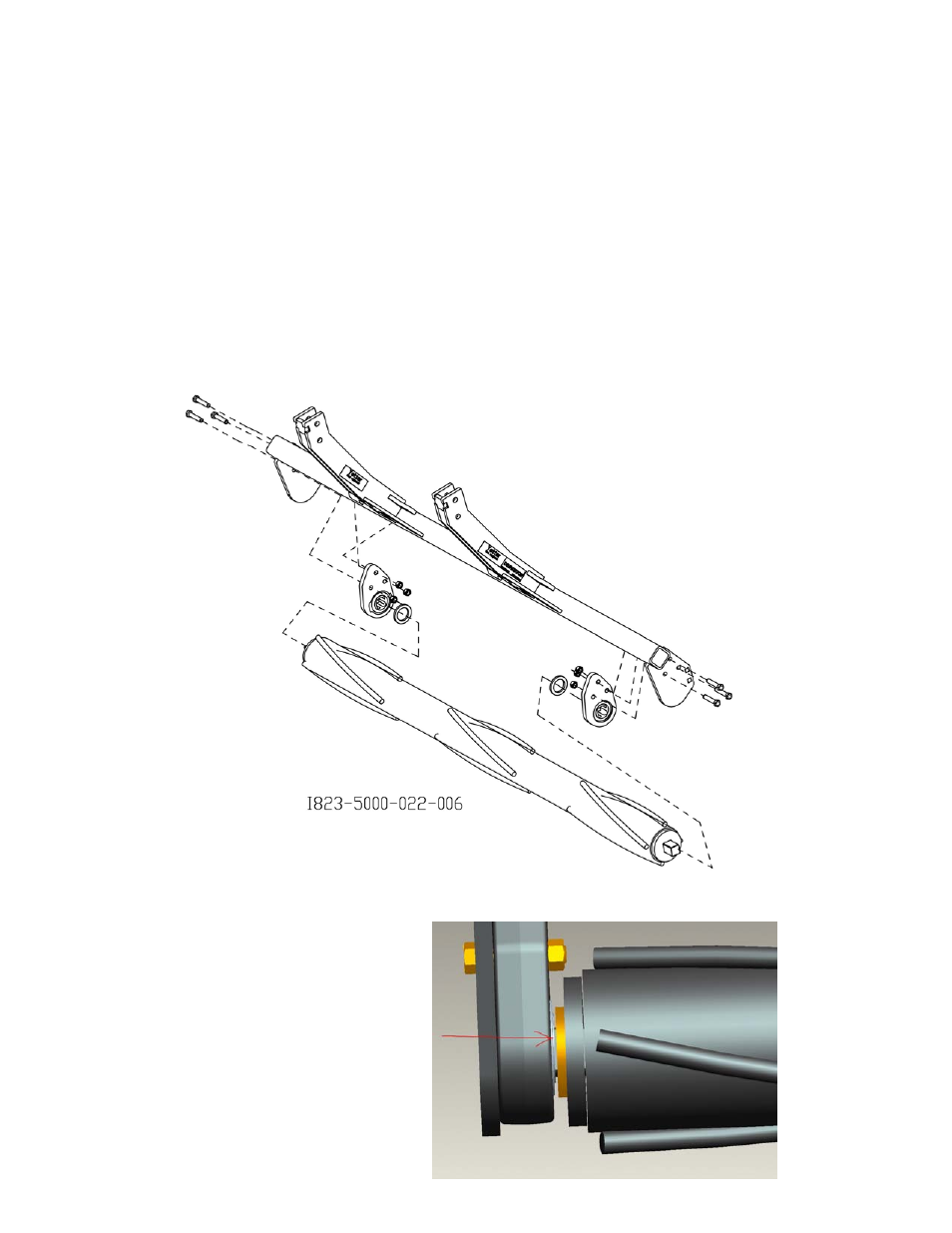

STEP 7. INSTALL THE SHIMS AND BEARINGS ONTO THE ROLLERS.
NOTE: THE EXTENDED RACE ON THE BEARING WILL FACE TOWARD THE
ROLLER.
ATTACH THE BEARING/ROLLER ASSEMBLY TO THE PIVOT ARMS USING THE ½” X
2-1/2” BOLTS AND 1/2'” LOCK HEX NUTS.
THE SIDE OF THE BEARING
ASSEMBLY WHERE THE
BEARING IS PROTRUDING
MUST BE INSTALLED
TOWARD THE ROLLER!
