Yetter 6000-008 Quick Response Shoe Assembly - White 6000/8000 - Manual

6000-008

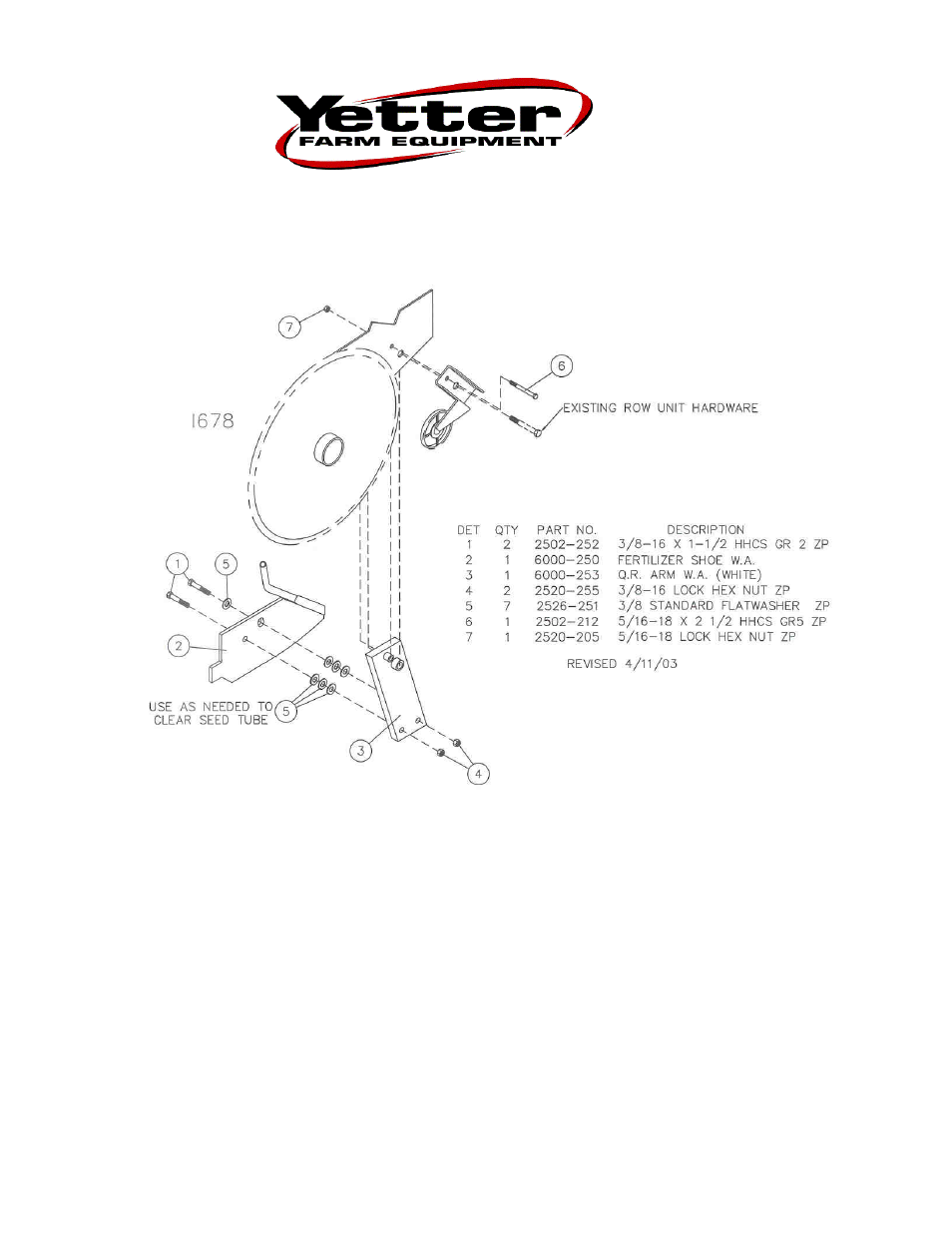

QUICK RESPONSE SHOE ASSEMBLY
INSTRUCTIONS ON WHITE 6000/8000
ASSEMBLY INSTRUCTIONS
1. Remove gauge wheel arm assemblies from the row unit.
2. Remove the scrapers.
3. Check the seed opener blades for 2” of blade edge contact. Check your planter operator’s manual for
correct adjustment procedure. NOTE: this adjustment is critical for correct installation and adjustment
of the Quick Response Shoe.
4. Remove the R.H. seed opener disk blade.
5. Attach the 6000-253 arm to the planter unit using 5/16” x 2-1/2” and ½” X 2 ½” bolts. NOTE: do not
assemble scrapers at this time because the R.H. seed opener blade has been removed to determine
the number of shims needed to have proper clearance between the seed tube and the 6000-250
fertilizer shoe.
