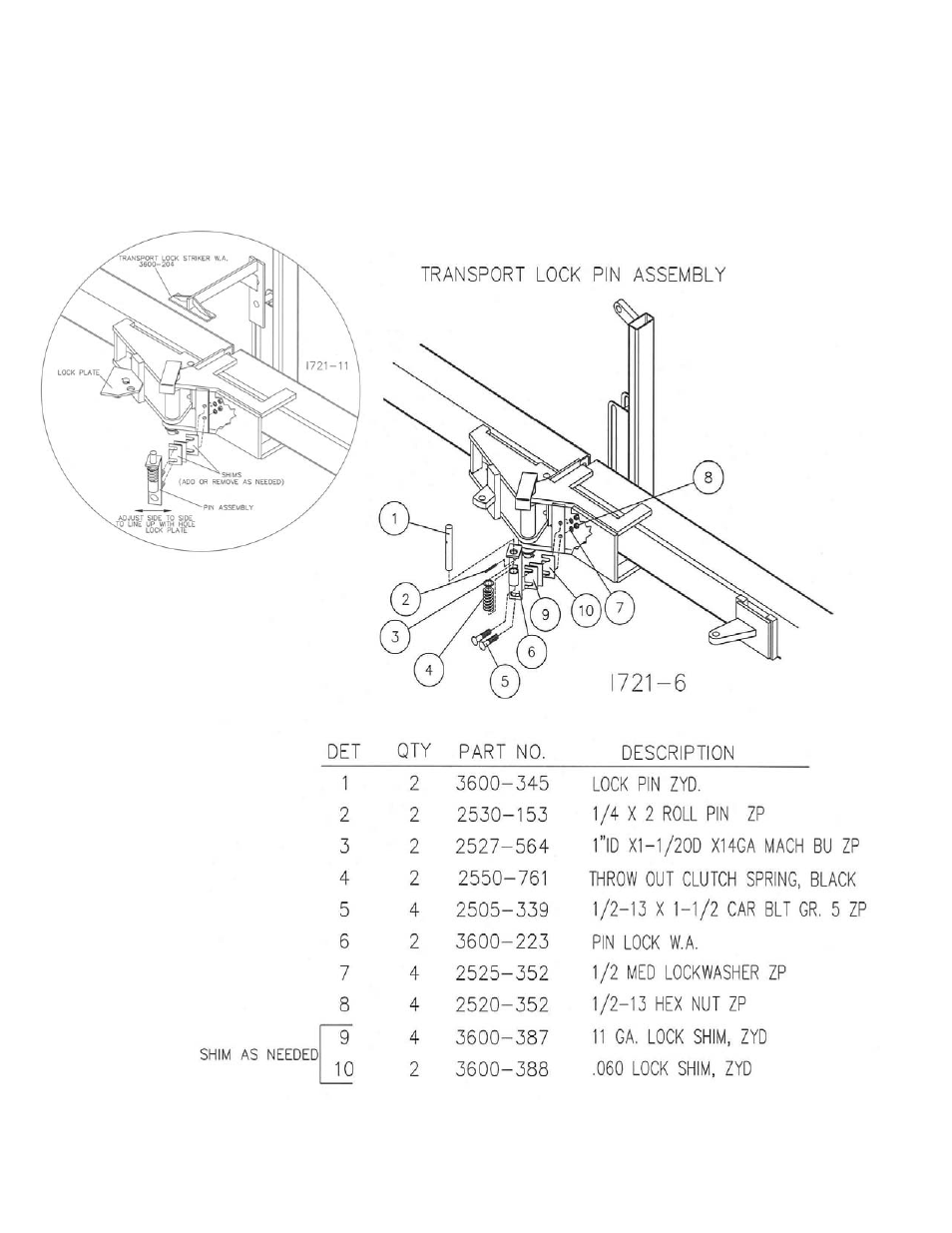

PARTS IDENTIFICATION

IMPORTANT:

When the toolbar is in the folded position the lock pin 3600-345 must not bind in

the wing stop plate 3600-344. The pin must be adjusted with shims and correctly positioned by
moving the pin assembly on the slotted holes of the 3600-223 pin lock bracket. When the lock pin
is not being held down with the transport lock striker 3600-204, the spring should be to pull the
lock pin up out of the lock plate. Use never-seize to aid the pin to move freely.
