Assembly – Yetter 2984-027 Rolling Basket Attachment User Manual
Page 9
9
ASSEMBLY

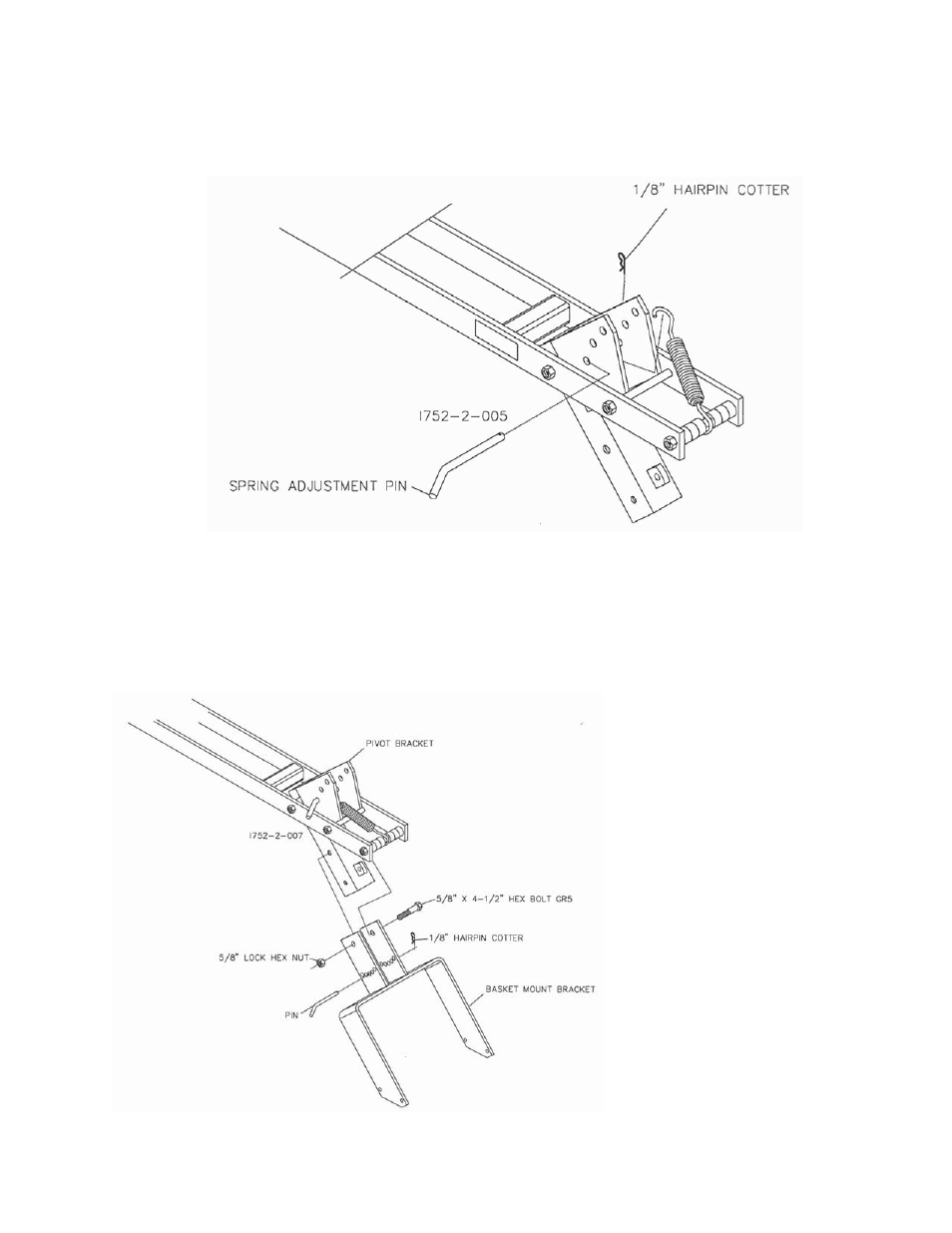

INSTALL THE SPRING ADJUSTMENT PIN AND SECURE WITH THE 1/8” HAIRPIN COTTER.
USE THE LIGHTEST SPRING PRESSURE THAT WILL PROVIDE A SATISFACTORY BERM.
ATTACH THE BASKET MOUNT BRACKET TO THE PIVOT BRACKET USING THE 5/8” X 4 ½” HEX BOLT AND
5/8” LOCK HEX NUT. ALSO, INSTALL THE ADJUSTMENT PIN AND 1/8” HAIRPIN COTTER.
