INSTALLATION
1. Remove the upper ½” x 2 ½” bolt which attaches the unit coulter arm to the bracket
through the slot. The two flat washers are no longer required. Save the lock nut for later
use.
CAUTION: DO NOT USE SPACER STRAP ON COMBO ARM W.A. AS A
HANDLE, FINGERS MAY BE SERIOUSLY INJURED ON SHARP EDGE OF
BLADE. USE ½” SQ. DRIVE SOCKET TOOLS TO ADJUST THIS PART.

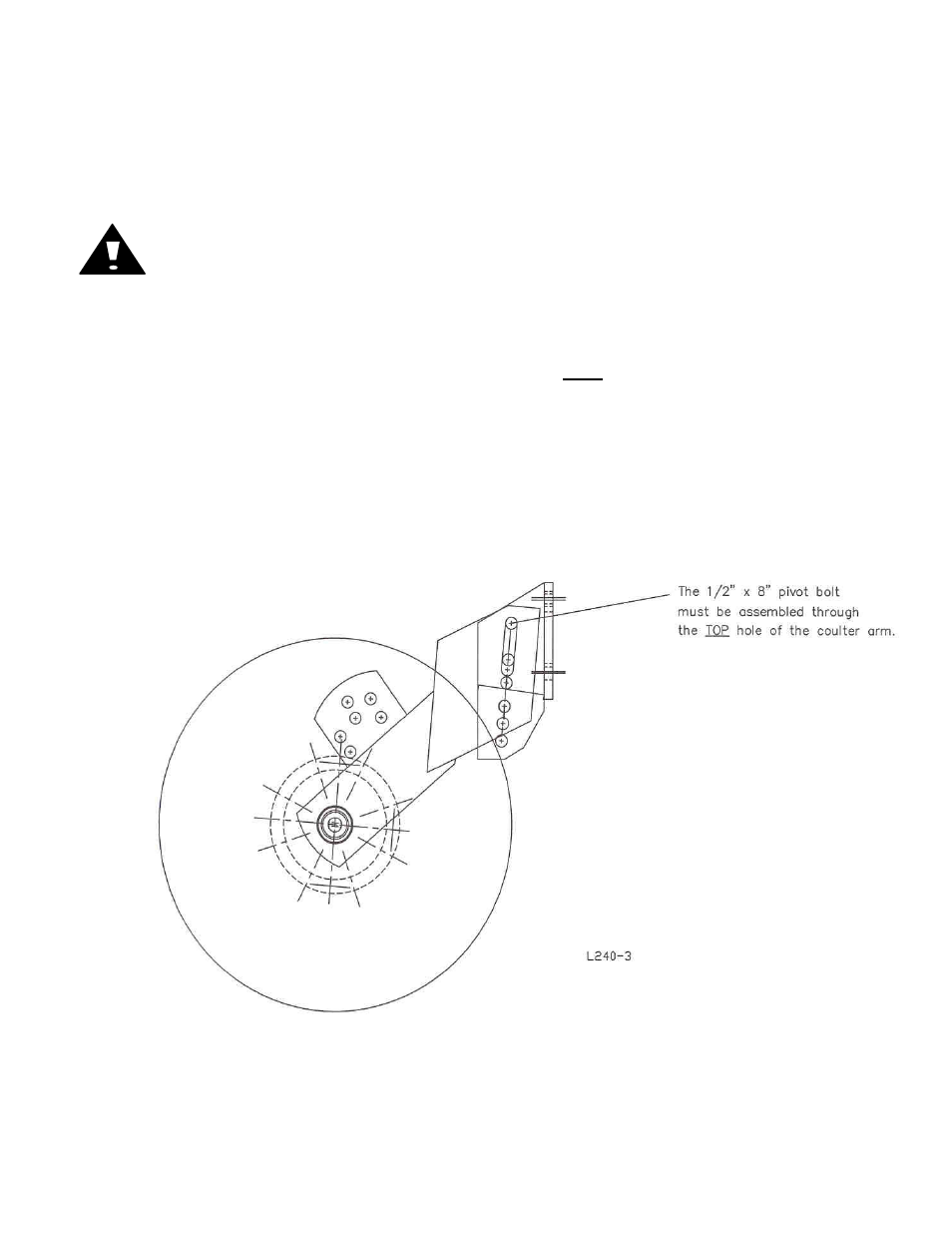

2. Assemble the combo arm w.a. to the coulter with the ½” x 8” bolt, long spacer, short
spacer and two flat washers supplied. Use the ½” locknut removed in step 1. Tighten this
bolt securely. The ½” x 8” bolt must be through the TOP hole of the coulter arm.
3. Check the alignment of all holes in the combo arm and the adjustment plate with the
combo adjustment pin.
4. Attach the spoke wheels to the ends of the combo arm with the “D” bolts, hex nuts and
lock washers. Torque to 150 ft. lbs.
