Installation instructions – Yetter 2967-037 TITAN Residue Manager for John Deere Coulter User Manual
Page 6
6
INSTALLATION INSTRUCTIONS

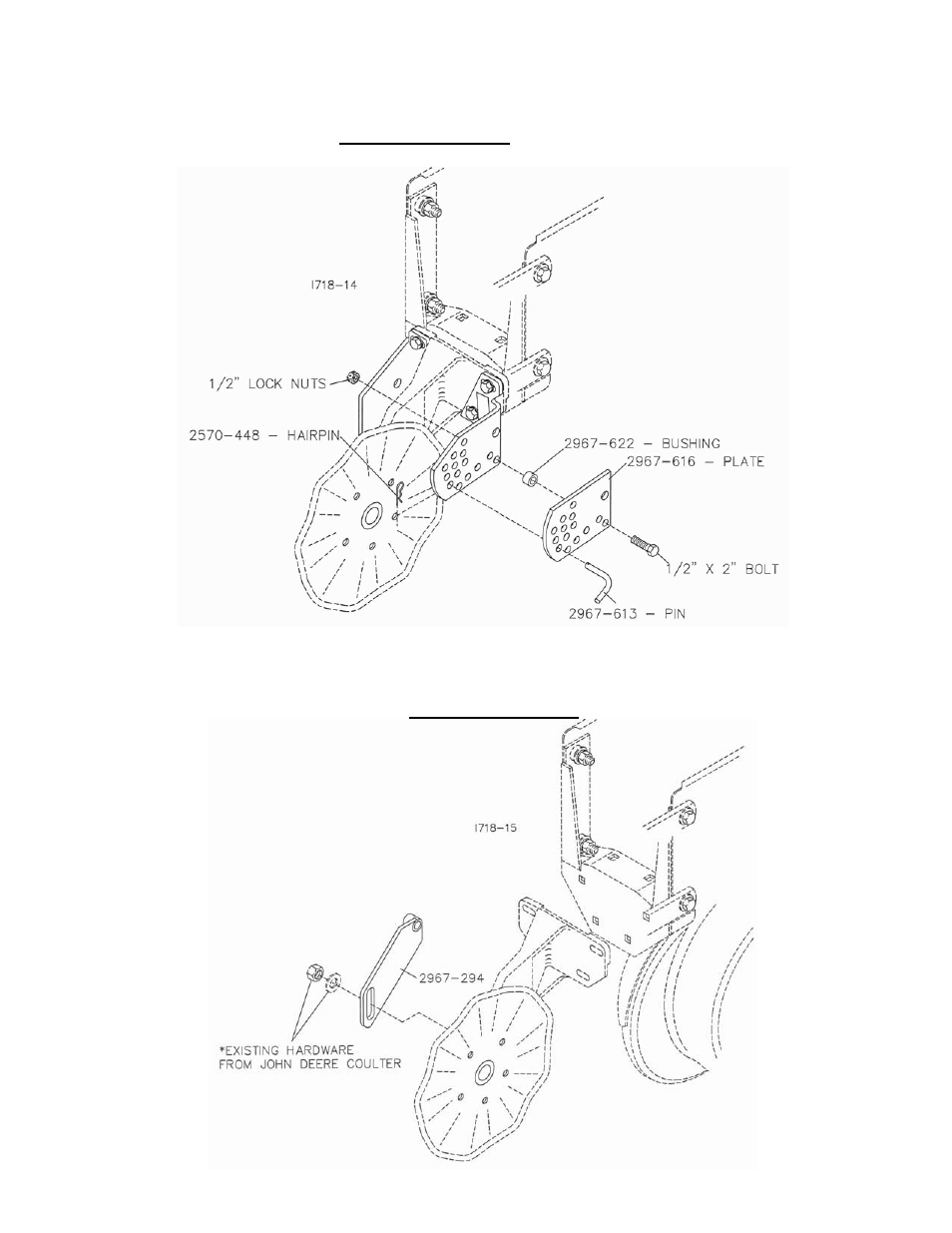

STEP 2.
Attach the 2967-616 support plate to the adjustment bracket using the ½” x 2”
bolt and 2967-622 spacer. Do not fully tighten. Install the 2967-613-adjustment pin and
hairpin cotter.
STEP 3.
Install the 2967-294-support bracket to the coulter adjustment using the
existing hardware from the coulter. Do not fully tighten.
