Installation instructions – Yetter 2967-008 Titan for CNH planters User Manual
Page 9
9
INSTALLATION INSTRUCTIONS

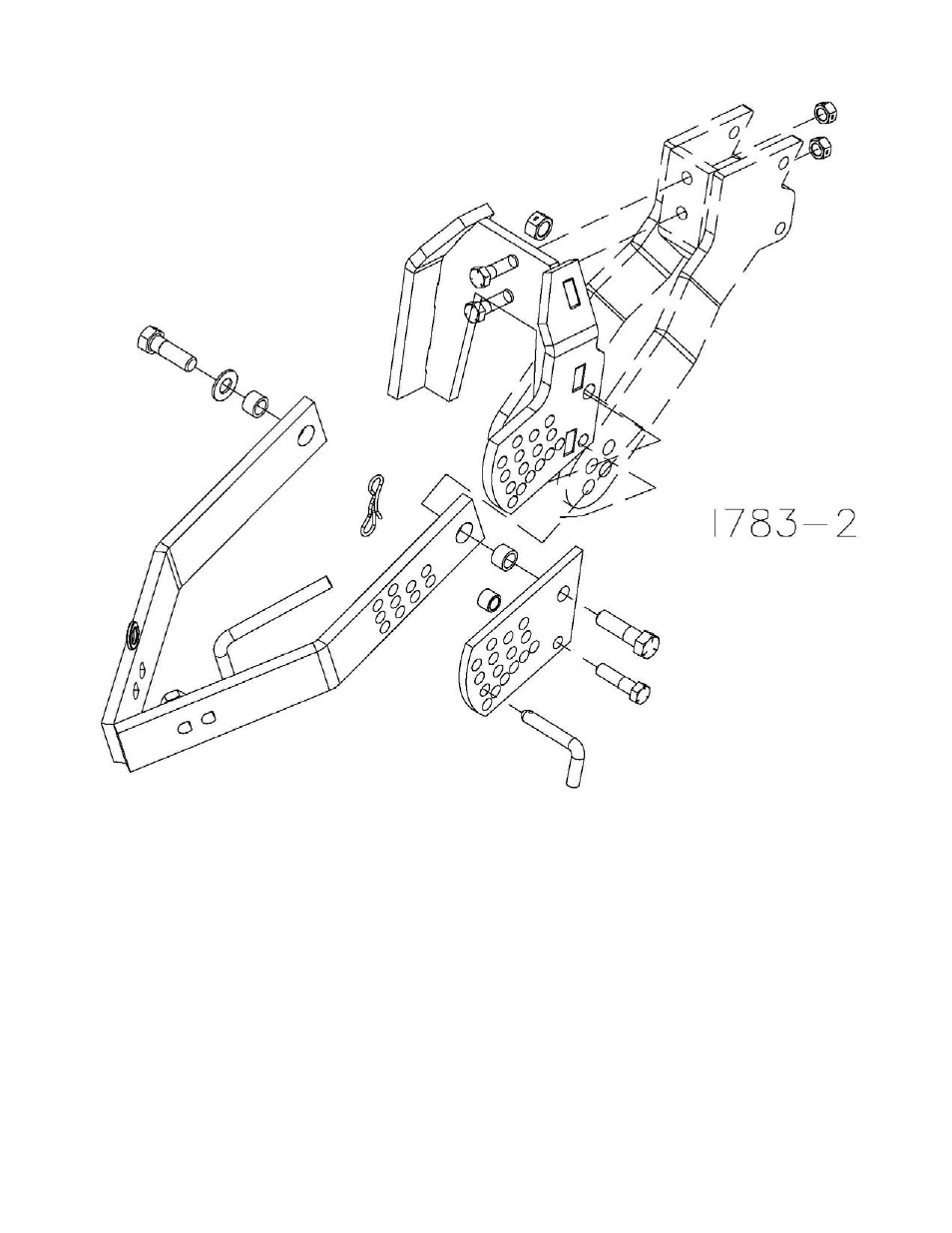

STEP 2.
Attach the 2966-252 combo arm to the 2966-253 mount bracket using the 5/8” bolts,
flat washers, bushings, 2967-623 adjustment plate and 5/8” lock nuts. Also, install the ½” x 2”
bolt, 2967-622 spacer, ½” lock nut, 2984-326 pin and 2570-446 bowtie cotter on the 2967-623
adjustment plate.
STEP 3
.
Use general-purpose grease to “pack” the hub/bearings before installing the Residue
Manager wheel Assemblies
.
