1.7

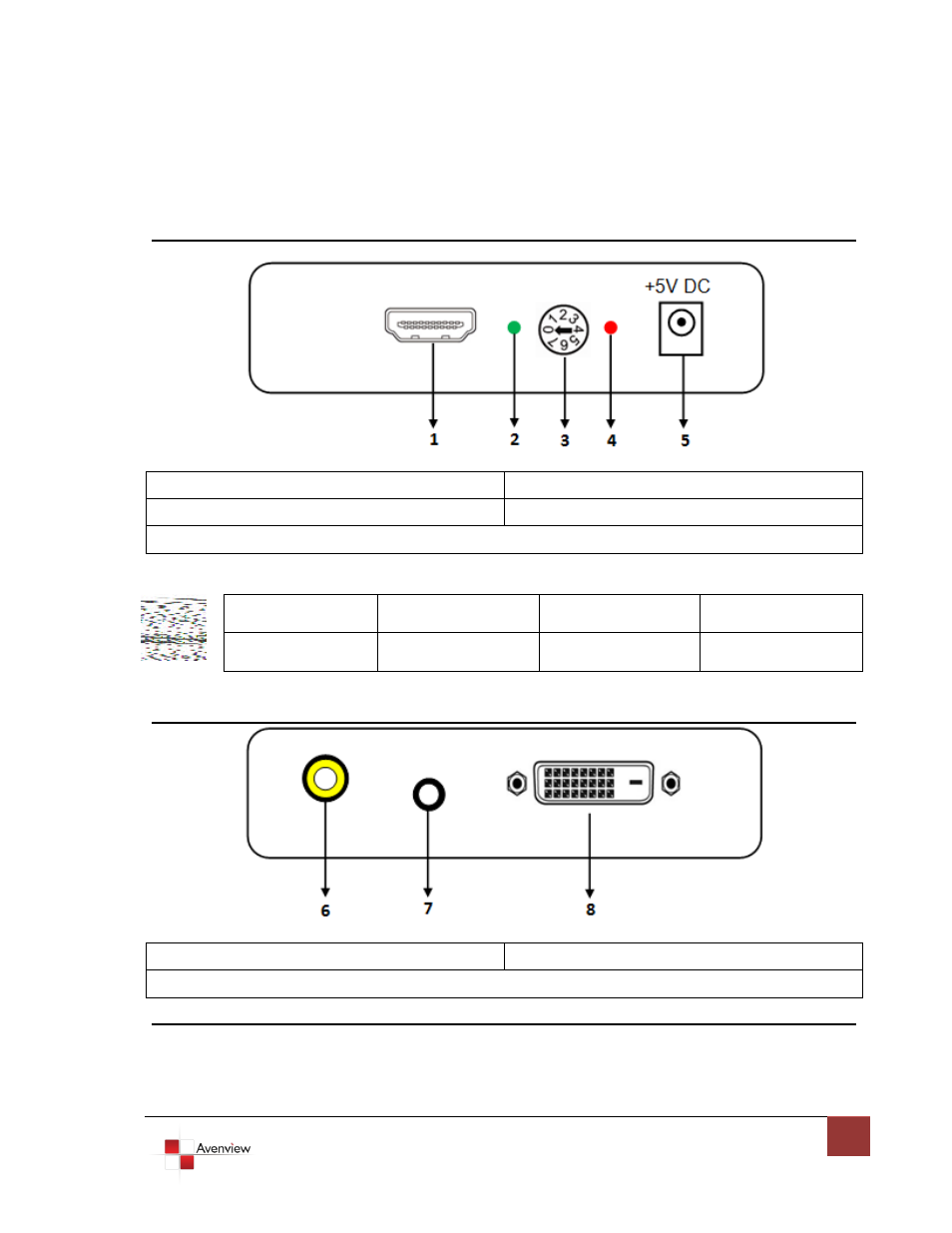

Panel Description

FRONT PANEL

1. HDMI Input

2. Status Indicator

3. Switch

4. Power Indicator

5. Power Connector

0: Pair 1 Analog
Output

1: Pair 2 Analog
Output

2: Pair 3 Analog
Output

3: Pair 4 Analog
Output

4: Reserved

5: Reserved

6: Restore Default
EDID

7: Learn EDID HDMI
Equipped Device

REAR PANEL

6. S/PDIF Output

7. Audio Output

8. DVI Output
