AMF Rotary Pic-N-Pac Depanner - Manual (Page 2)

The AMF Triple Head Pic-n-Pac Depanner is equipped
with the following Electrical Components:
• Operator Control Station is a NEMA 4 SS panel where
the operator stores all the recipes for set-up and
product run data. Trouble shooting indicators are
also present in the components which include:
• Allen Bradley pushbuttons for:
- 2 button Start
- Stop / Emergency stop
- Servo Speed Control
- Manual Index
• Allen Bradley PV-300 Operator Interface
• Two Machine Mounted NEMA 4x SS Enclosures
house all electrical components including:
• Main Disconnect Switch
• Allen Bradley Micrologix 1500 PLC
• Allen Bradley 160 Inverter
• Mitsubishi Servo Controller
• Omron Power Supply / Islatrol Plus
• Machine Mounted NEMA 4x SS Enclosure houses all
pneumatic controls including:
• Solenoid Valves
• Pressure Regulator
ROTARY PIC-N-PAC DEPANNER
• Designed and manufactured in accordance with
BISSC standards
• Heavy duty stainless steel frame for durability
and corrosion resistance
• Two triple package pick-up heads
• 180° rotary motion product transfer to remove rolls
from the pan and deposit them into the carton box
• Rack and pinion construction
• Pneumatic head actuation
• Inline vacuum filter system
• Vacuum line connection
• Lightweight aircraft aluminum and Delrin pick-up head
construction
• Quick-change pick-up heads for easy change without
tools from twelve to eight cluster if required
• Quick-change vacuum cups, no tools required
• Six (6) independent Venturi vacuum generators, one
for each vacuum chamber
• Pneumatic pan stops for precise pan placement
• Servo driven flight box timing belt conveyor for
smooth box feed without shingling
• Plastic tabletop box and pan conveyors for minimum
pan wear
• Proximity box and pan sensor
• Adjustable stainless steel side guides
• Adjustable stainless steel with poly insert box guides
• Eurodrive gearmotor drive for pan and box conveyors
• Smoked Lexan guards with aluminum framing
• Interlocked access doors from both sides of the unit
• Low noise design - 50% quieter than previous models
• Manual head raising and lowering switch for easy
maintenance access
• Pneumatic pan gripping system to assure exact
placement of pan for product removal
• Soft start for smooth machine start-up
• Quick changeout of flighted belt for 12 to 8 clusters if
required
• Vacuum filters are easily removed for cleaning
Mechanical
Specifications
Electrical
Specifications

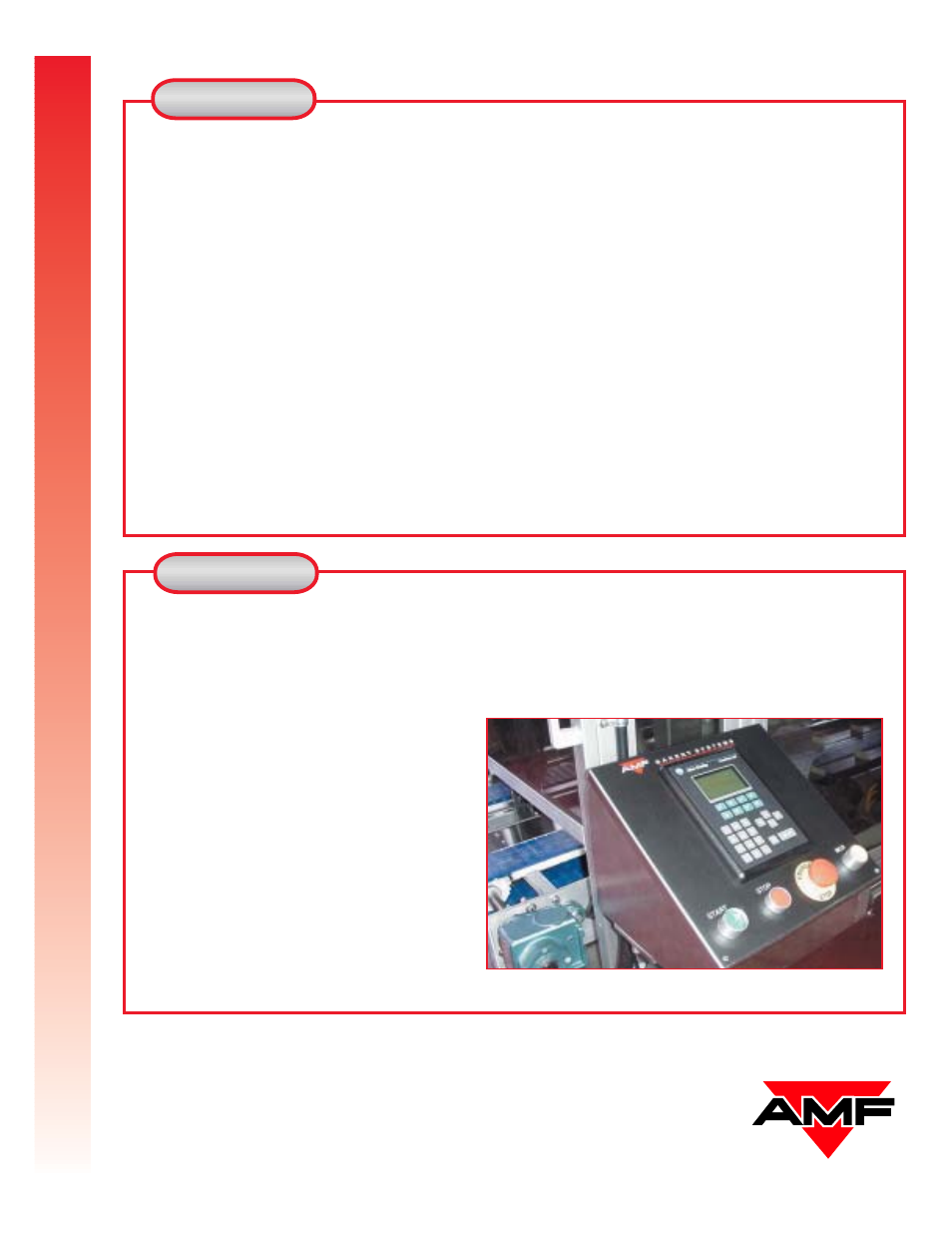

Standard PV-300 Operator Station
