Tuff Country 20801 - Ford 81-96 F150 Extended Radius Arm Kit User Manual
Page 4

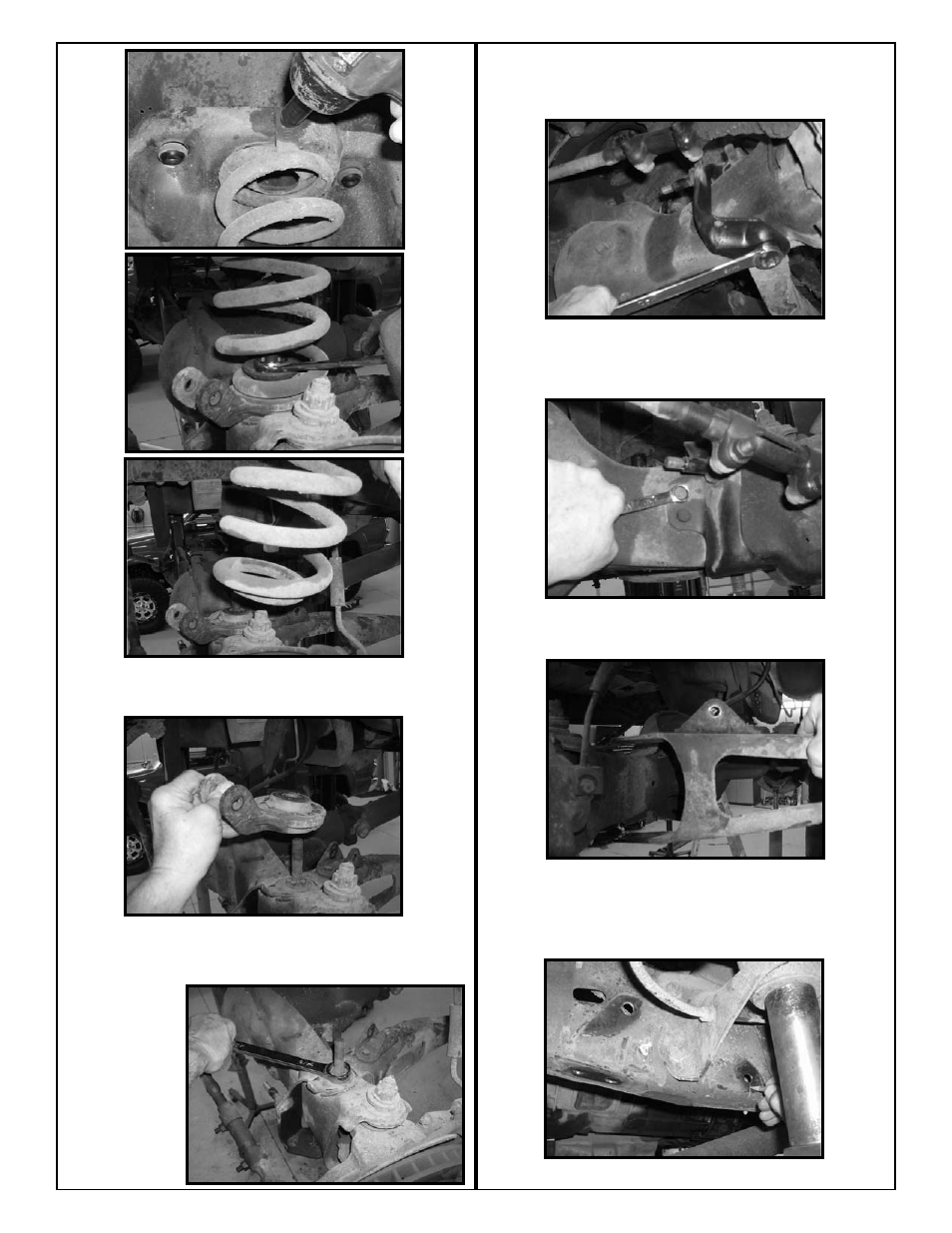

9. Working on the driver side, remove the stock lower coil
spring/sway bar bracket and set aside. Repeat procedure on
the passenger side.
10. Working on the driver side, remove the top stock bolt that
connects the stock radius arm to the stock front driver side
twin eye beam axle. Save the stock bolt. Repeat procedure
on the passenger
side.
11. Working on the driver side, remove the bottom stock bolt
that connects the stock radius arm to the stock front driver
side twin eye beam axle. Save the stock bolt. Repeat proce-
dure on the passenger side.
12. Working on the driver side, remove the (2) stock bolts
that connect the lower shock bracket to the stock front twin
eye beam axle. Save the stock hardware and bracket.
Repeat procedure on the passenger side.
13. Working on the driver side, remove the stock radius arm
from the stock location and discard. Repeat procedure on
the passenger side.
14. Working on the driver side, place a reference mark in the
middle of the rear stock radius arm bracket hole that was
attached to the frame rail. Special note: this is the hole
that is under the body mount bushing. Repeat procedure
on the passenger side.
