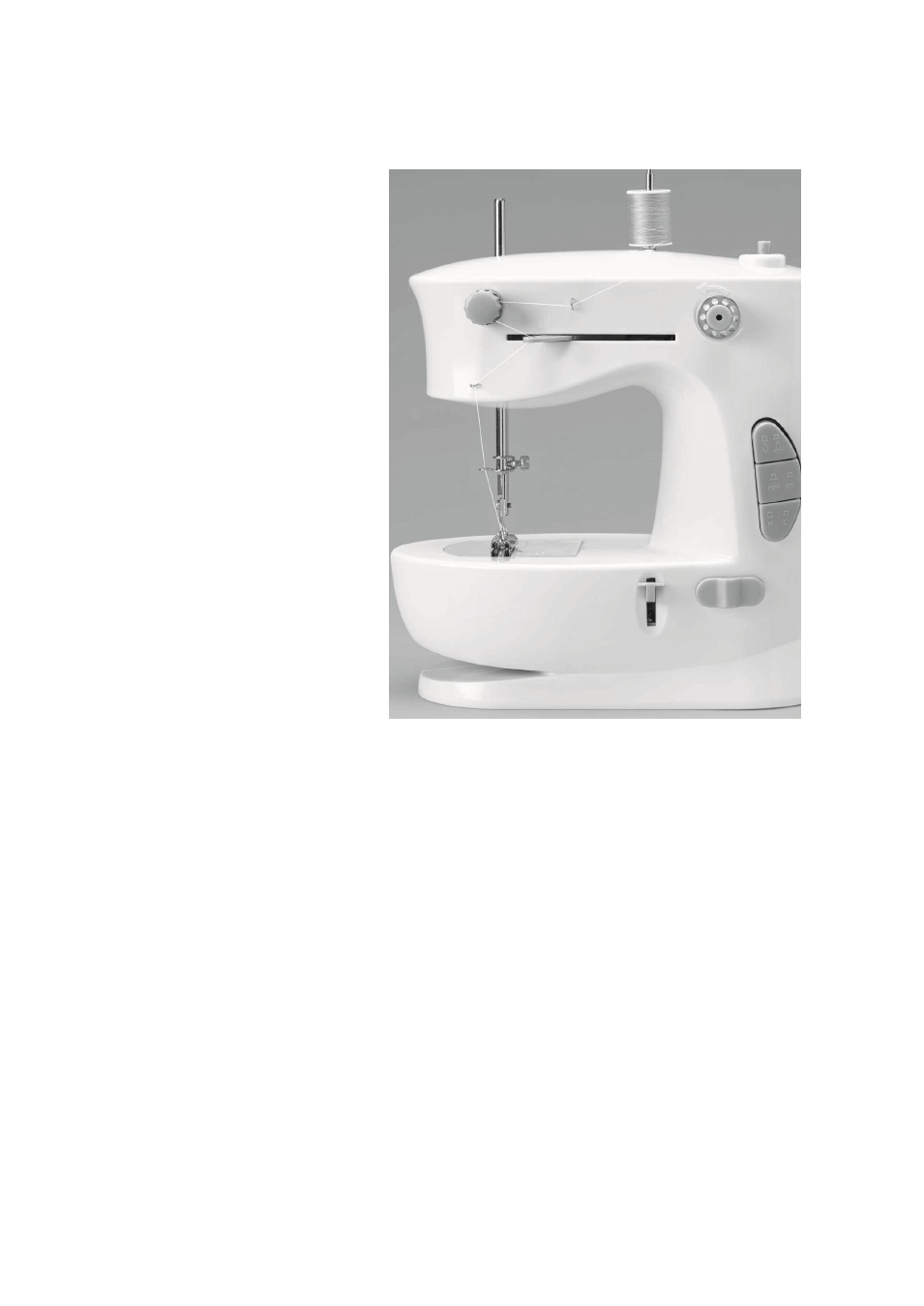

Threading the machine
1. Raise thread spindle (C) by
grasping the exposed top and
pulling upward until thread
spindle (C) is fully extended.
2. Place thread spool (E) on the
thread spindle (C) as shown.
3. Pull thread from the thread
spool (E) on the thread spindle
(C) and put it through the
thread holder (1) in the direction
toward front of machine.
4. Bring thread across to the
thread tension screw (2).
Thread goes over the tension
adjusting screw and must be
positioned between the two
washers behind the tension
adjusting screw(Q). This is
what provides the lockstitch
tension to the thread.
5. Pull thread from tension
adjusting screw (Q) guide
through thread take up lever
(D) in the direction toward
front of machine (3).
6. Pull thread through thread guide (4) inserting
in the direction toward the front
Of the machine.
7. Pull thread down to thread guide (5) and
insert thread from the top downward. If
necessary, lower the needle (R) to reach
this guide by turning the handwheel (K)
slightly counterclockwise (in the direction
toward you) to lower the needle (R).
8. Raise the needle (R) to reach the eye by
turning the handwheel (K) slightly
counterclockwise (toward you). Insert thread
through eye (6) of the needle from the front
toward the back of the machine (use threader
accessory if necessary).
9. Raise the Presser Foot (F) by lifting up on
the lever at the rear of machine (G).
10. Pull about 10 inches of thread through the
needle (R) and lay it on the deck under the
presser foot (F) running in the direction
away from you.
Threading main unit using side bobbin
(Follow steps 4-10 with these exceptions.)
1. Pull bobbin spindle (U) out from main unit.
2. Insert bobbin spindle (U) through center
hole of threaded bobbin.
3. Insert bobbin spindle (U) (with bobbin
attached) into bobbin holder (V). Make
sure bobbin spindle (U) with bobbin are
tightly secured to main unit.
Note: Thread main unit with side bobbin
simultaneously with thread spool for a double
stitch method. Side bobbin is to be used only if
you’re using this particular method of stitching.
