Speedtech 64-72 Chevelle Chicane Coilover - Manual (Page 4)

4 | P a g e
4. After the shock mount is removed, you will need to remove the inner spring
cup and clearance the hole to about 4 ½” in diameter. This is best done with a
plasma cutter or oxyacetyline torch.

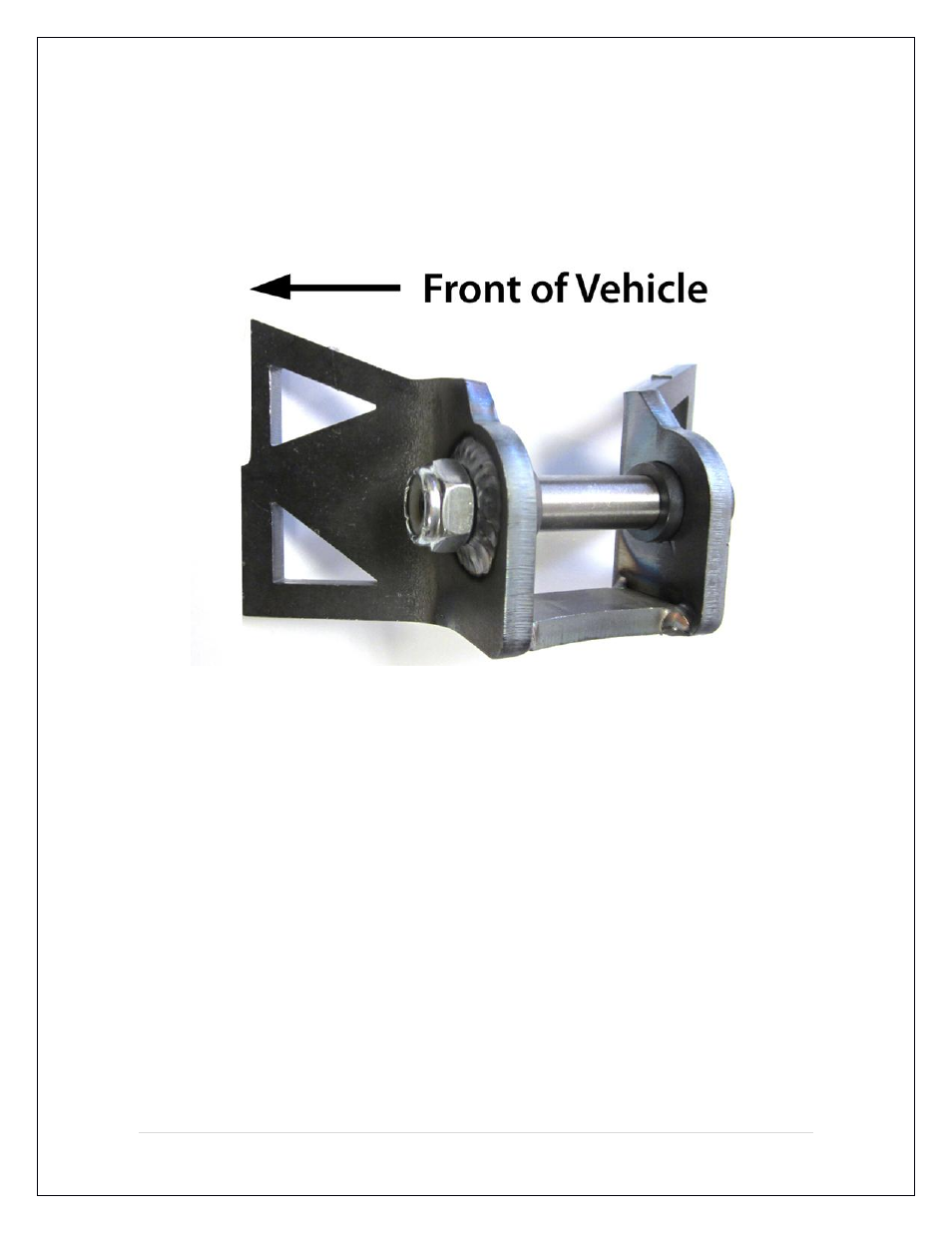

5. Test fit the Chicane upper shock bracket into place, centered over the hole.
Notice one side of the bracket has a notch in the base. This side goes towards
the front of the vehicle. Mark the width of the bracket on the control arm mount.
Using these marks as a guide, cut out a notch so that the shock bracket butts up
flush against the outer side of control arm mount.
