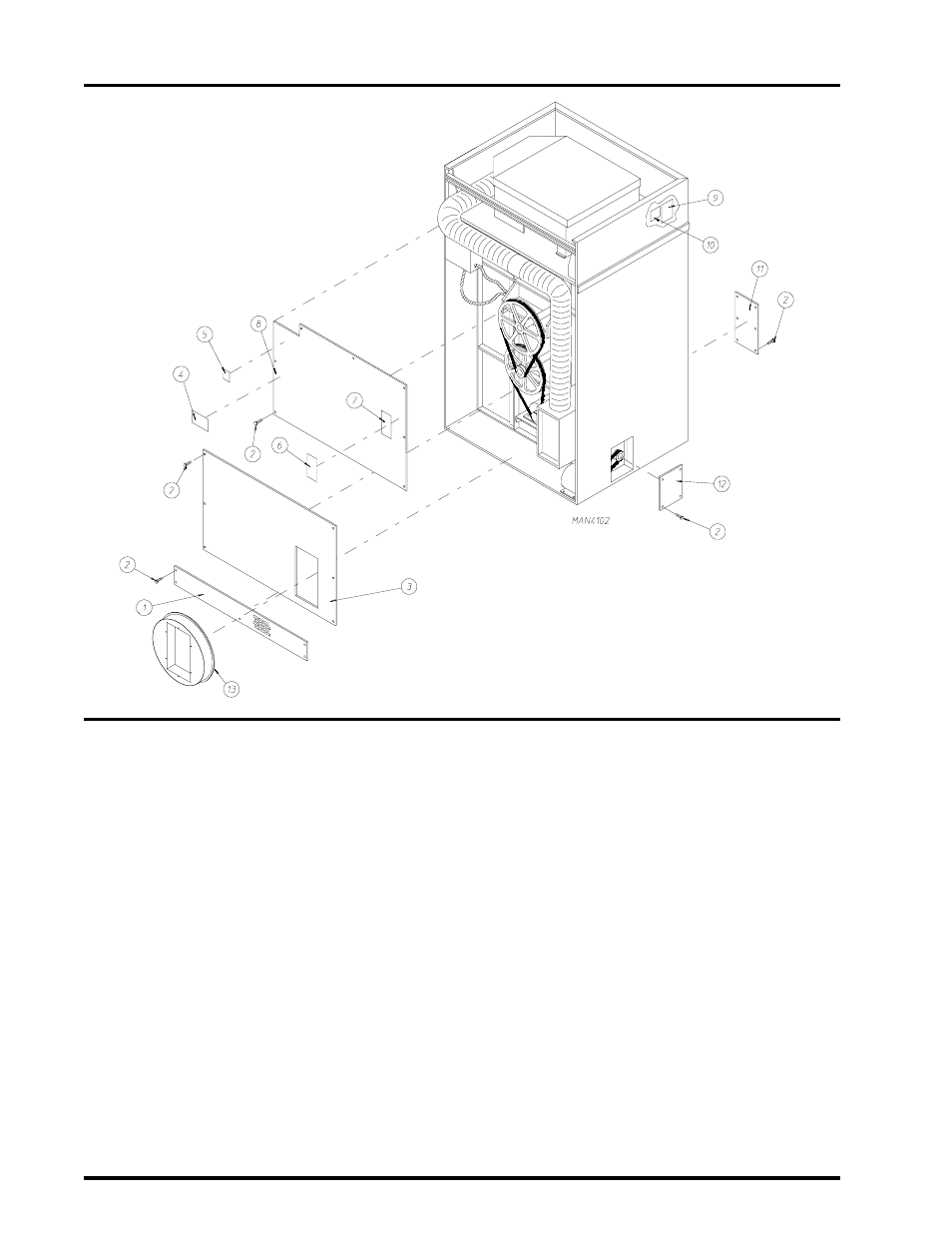

Back Guard Assemblies
Illus. No. Part No. Qty. Description
1 332328 1 Bottom Back Guard ONLY
2 150301 28 #8-18 x 7/16” Phillips Pan Head TEK Screw
3 821151 1 ADG-170 Middle Back Guard ONLY
(for Gas Models Only)
821129 1 ADS-170 Middle Back Guard ONLY
(for Steam Models Only)
4 112014 1 High Voltage Label ONLY
5 112017 1 ADC Name, Address, Telephone Number Label ONLY
6 112230 1 ADG/ADS-170 Installation Instructions Label ONLY
7 112519 1 Routine Maintenance Schedule Label ONLY
8 821095 1 Top Back Guard ONLY
9 112534 1 Phase 5 OPL Program Location Summary Label
(for Microprocessor Models ONLY)
10 -------- 1 Dryer Data Label
(not for resale by ADC)
11* 332295 1 Blower Housing Front Access Panel
12* 332309 1 Side Access Panel
13 821147 1 Square Duct to Round Duct Transition Piece Assembly
* Specify color when ordering.
