Movies2Go MM801 - Manual (Page 3)

Installation Guide
3

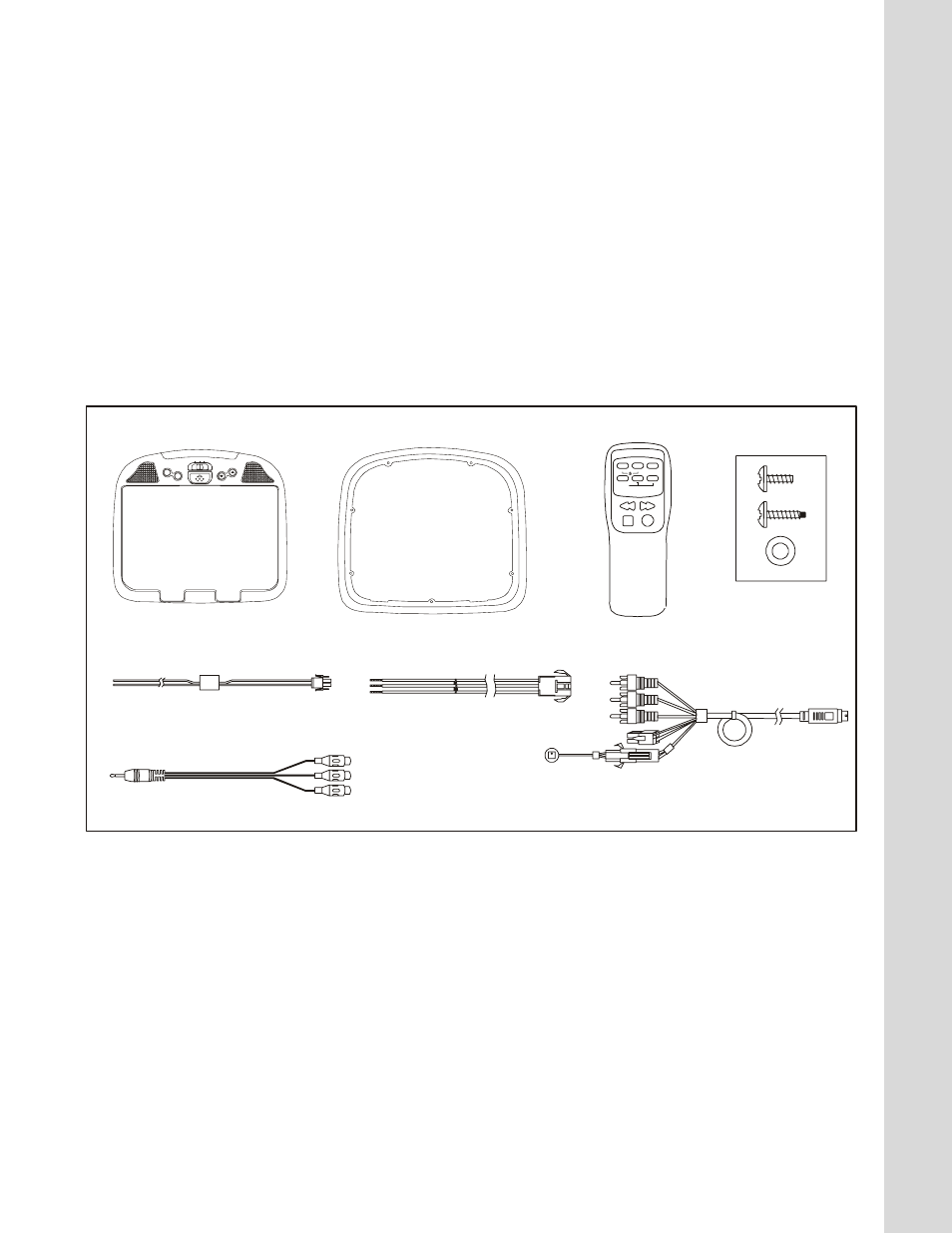

MATERIALS INCLUDED IN THIS PACKAGE:
1) MM801 Video Monitor (P/N 136D3649) – 1pc
2) Trim Ring (P/N 102C4007) – 1pc
3) Remote Control (P/N : 136B3650) – 1pc
4) Hardware Package:-
♦
#4 x 5/16” Screws – 7 pcs
♦
#8 x 5/8” Self Drilling Screws – 4 pcs
♦
#8 Washers – 4 pcs
5) 2 Pin Power Wire Harness with choke (P/N 112B3143) – 1 pc
6) Dome light Harness (P/N 112B3110) – 1 pc
7) Accessory Harness (P/N 8010730) – 1pc
8)
A/V Adapter Cable (P/N 112B3227) – 1pc
TOOLS REQUIRED:
#2 Phillips Screwdriver
#1 Phillips Screwdriver
Utility or Razor Knife or Shears
Wire Strippers
Upholstery hook tool (for removal of panels as necessary)
Electrical Tape
Masking Tape
Multimeter (to verify 12 volt DC and continuity: Do not use a test light or logic probe)
Marker pen – to mark headliner
Scribe (to mark trim ring if used)
Misc. electrical connectors (to connect to vehicle power source). Requirements will vary from vehicle to
vehicle.
1. 2.
5.
4.
P O W ER M E N U /
E NT ER
ON OFF AUTO
3.
LCD SOURCE
ME NU/ ENTE R +
VCP
STOP PLAY
REW FWD
8.
6. 7.
