ASSEMBLY INSTRUCTIONS:
PRO-VIEW
™
ADJUSTABLE HEIGHT
POOLSIDE BASKETBALL GAME
ITEM NO. 72850
Phillips Screwdriver
TOOLS REQUIRED
7/16" Open or Box Wrench
or Adjustable Wrench

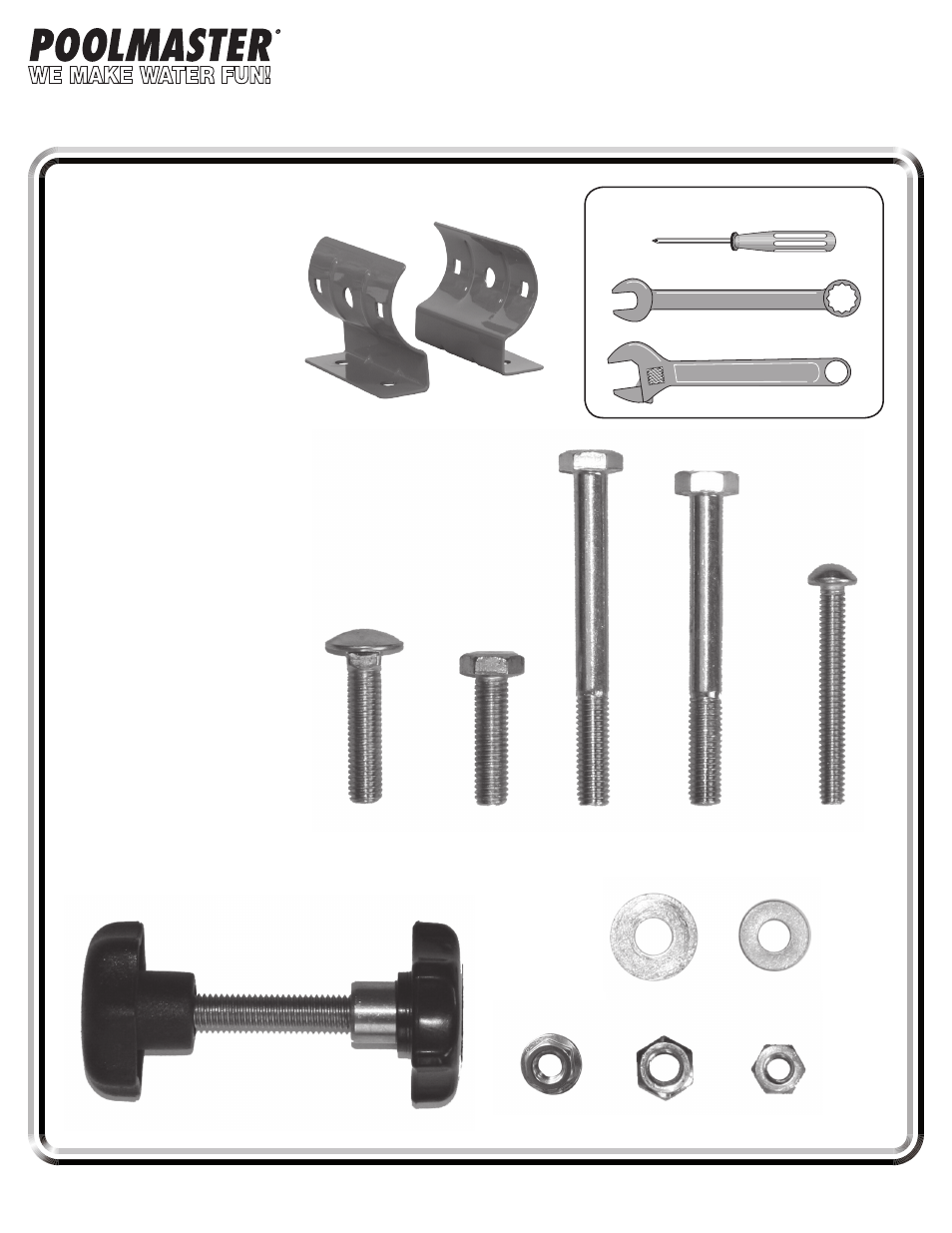

PARTS LIST
(1) Backboard
(2) Support angles
(1) Hoop and net
(1) Mounting bracket (set)
(2) Thumbscrews
(1) Base
(1) Ball and needle
(1) Upright pole (2 sections)
(2) Support braces
(2) Wheels
(1) Axle
(1) Base cap
(1) 3" bolt
(1) 2-3/4" bolt
(4) 1-3/4" bolt
(2) 1-3/8" carriage bolt
(2) 3/4" bolts
(4) Hex nuts
(4) Lock nuts
(2) Shoulder nuts
(14) 5/16" washers
(4) Washers
NOTE: Parts included
may be metric sizes.
1-3/8"
carriage bolts 3/4" bolts 3" bolt 2-3/4" bolt 1-3/4" bolts
Mounting brackets set
Thumbscrews
1/2" washer 5/16" washer
Shoulder nut Lock nut Hex nut
