11

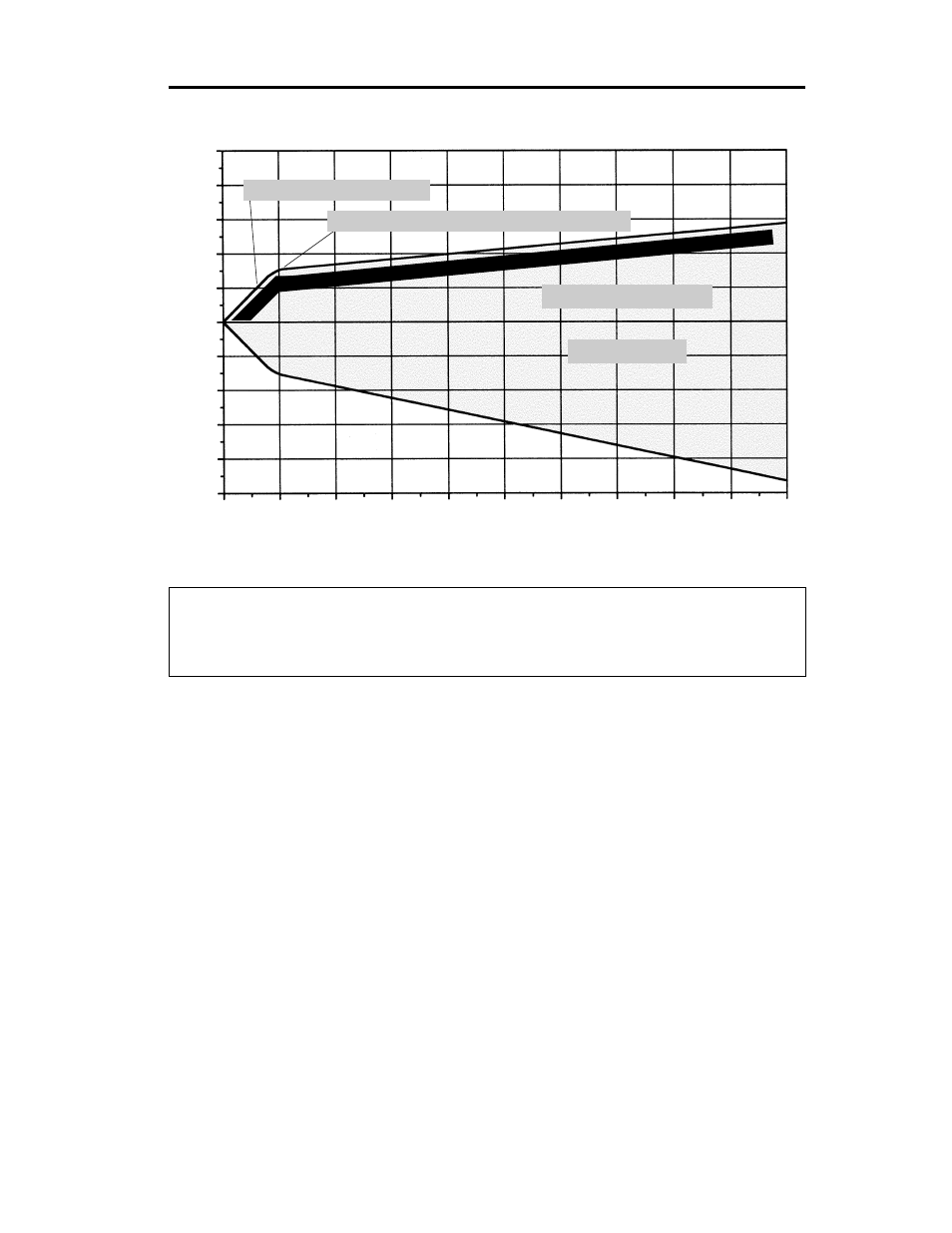

Dyno Graph Overview
0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00
Compression
Bleed Chokes Off / Shims Activate (knee)
Low Speed Bleed Holes
Shaft Velocity (In/Sec)
Rebound
Low Shaft S
peed (slope)
Note:
Remember that low speed damping characteristics are controlled by bleed through
the bleed hole(s) in the piston, not the valve stacks.
500
400
300
200
100
0
-100
-200
-300
-400
-500
Damping Forces (Lbs)
