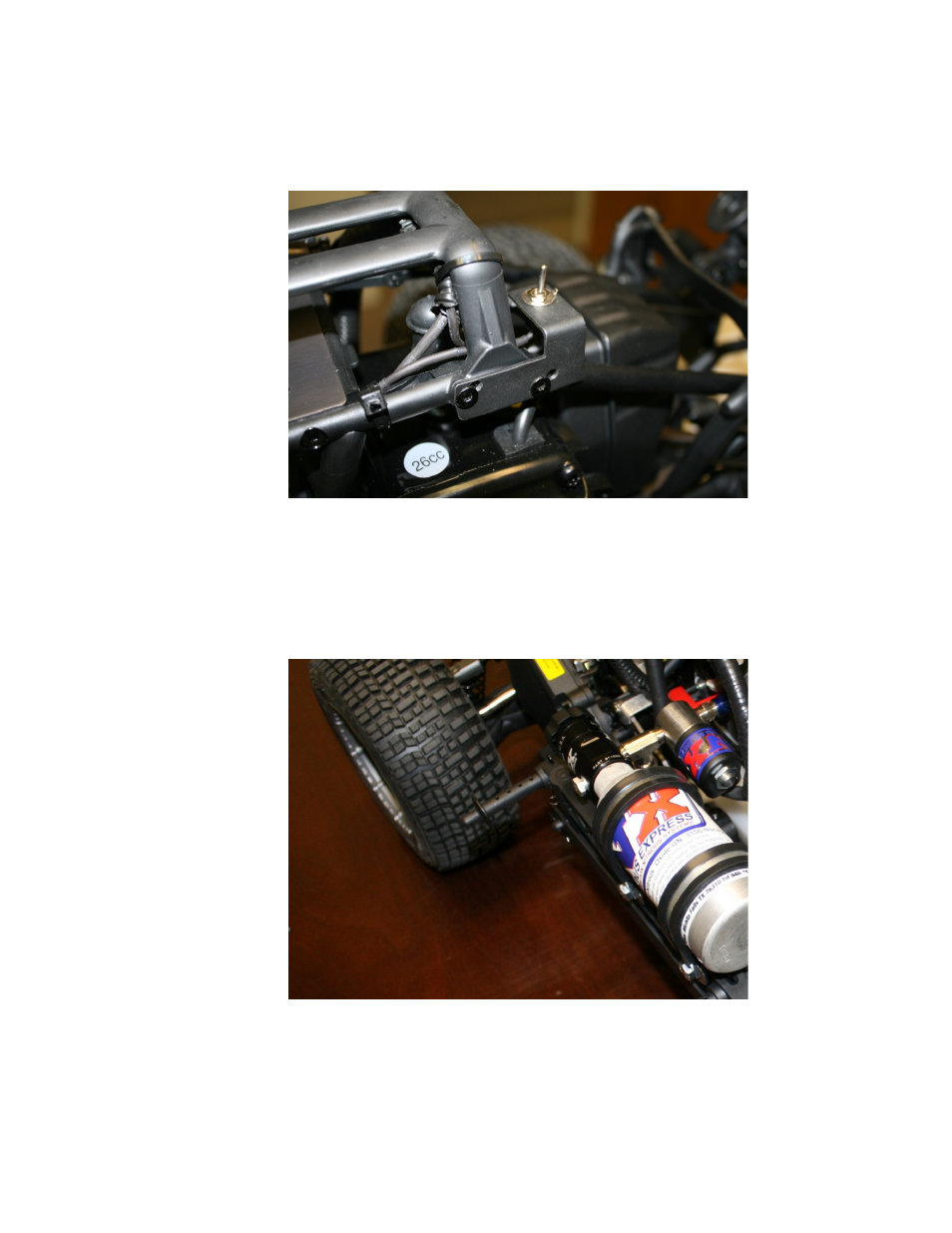

3. Now you will need to choose a location for a master arming switch. This can be
anywhere that is easily accessible and so that it does not interfere with any
mechanical linkages
4. Install the .009 jet into the push-to-connect jet fitting and thread into solenoid
outlet port. Tighten snugly, but do not over tighten. Install the 3an Swivel fitting
into the inlet port of the solenoid. This will allow for mounting the nitrous solenoid
directly to the bottle valve.
5. Mount the nitrous bottle using the supplied hardware. Be sure the bottle does not
interfere with any mechanical linkages.
6. Install the 1/8 poly line into the push-to-connect fitting previously installed in the
nitrous solenoid outlet port and route the line into the air filter. The hose should
discharge toward the air filter but should not be inserted directly into it. Secure the
line with zip ties.
