3. Slide a 3” Clamp onto the rear of the Muffler. Feed the Tail Pipe
over the axle and loosely attach it to the Muffler. Refer to Figure 5.
4. Install the Tail Pipe hanger into the factory rubber insulator located
directly above the hanger. Refer to Figure 5.
5. Install and adjust the Exhaust Tip to suit. Using a 17mm wrench
tighten the lock bolt located on the Exhaust Tip. Refer to Figure 6.
6. Align the exhaust as required. Starting at the front of the exhaust,
tighten all clamps and connections.
7. Check along the whole length of the exhaust system to ensure that
there is adequate clearance around the spare tire, fuel and brake lines or
any wiring. If any interference is detected relocate or adjust.
Congratulations! You are ready to begin experiencing the improved power, sound and driving excitement of
your MBRP Inc. performance exhaust system. We know you will enjoy your purchase.

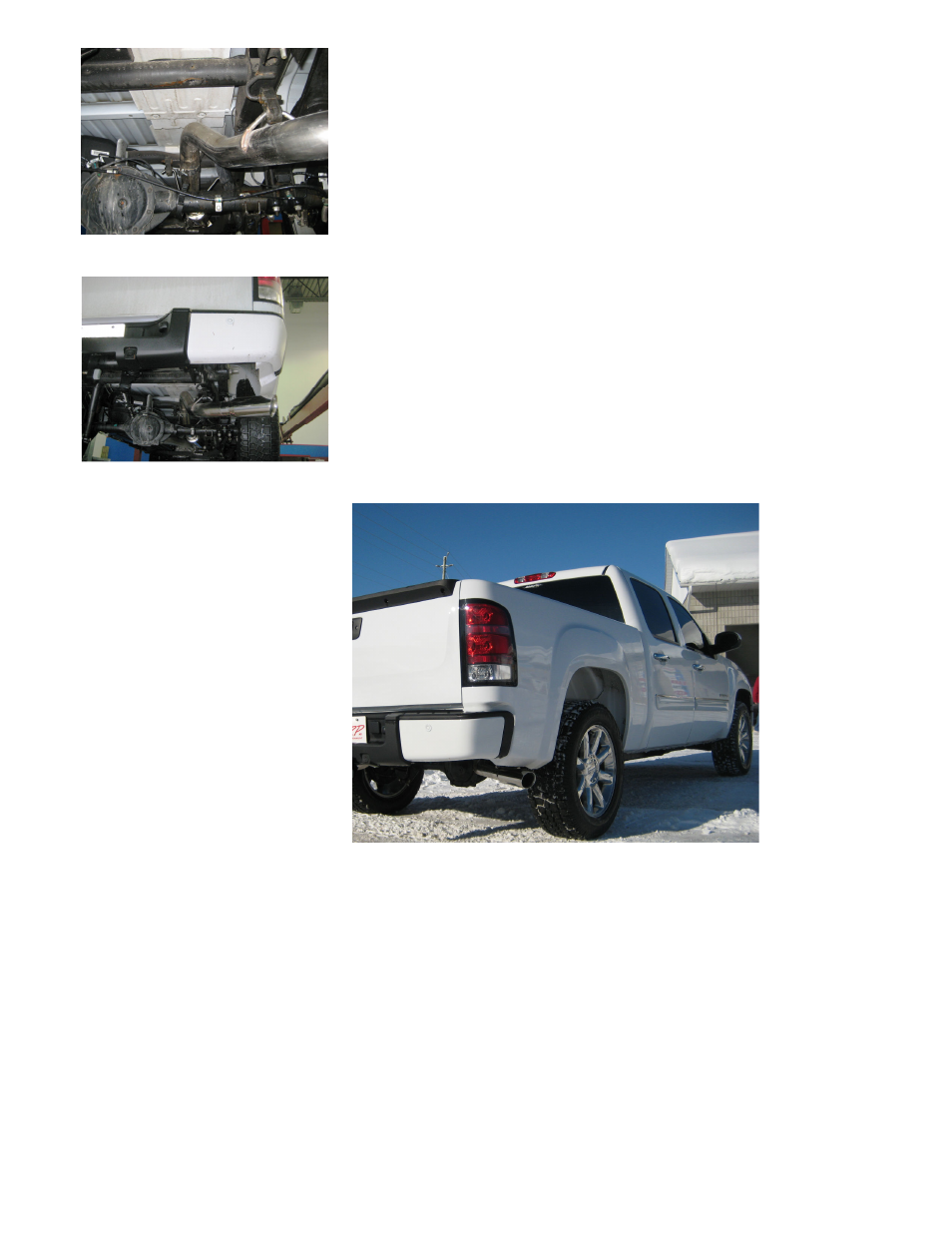

Figure 5
Figure 6
