A24200 © 10/13 PAGE 3 OF 3
3. Feed the Air Intake Tube over the valve cover and down to the turbo inlet.
Slide the Hose Clamp over the Hose Adaptor and fit the Hose Adaptor over the
turbo inlet.
Refer to Figure 6.
4. Insert the Air Intake Tube into the factory air intake flex hose on the factory air
box and loosely install an M6 Bolt and Washer in the filter side bracket.
Refer to Figure 7.
5. Install an M6 Bolt and Washer in the turbo side bracket. Reinstall the engine
cover ball stud using the factory metal spacer sleeve (arrow) from the factory intake.
Refer to Figure 8.
6. Tighten all hose clamps and both M6 Bolts.
7. Remove the 4 screws on the factory air box lid. Remove the factory air filter and
replace with the high flow Air Filter Element.
Refer to Figure 9.
8. Reinstall the factory air box lid and the engine cover.
9. Check along the entire length of the air intake to ensure that there is adequate
clearance.
Congratulations! You are ready to begin experiencing the improved power, sound and driving experience of your
MBRP Inc.
performance intake system. We know you will enjoy your purchase.

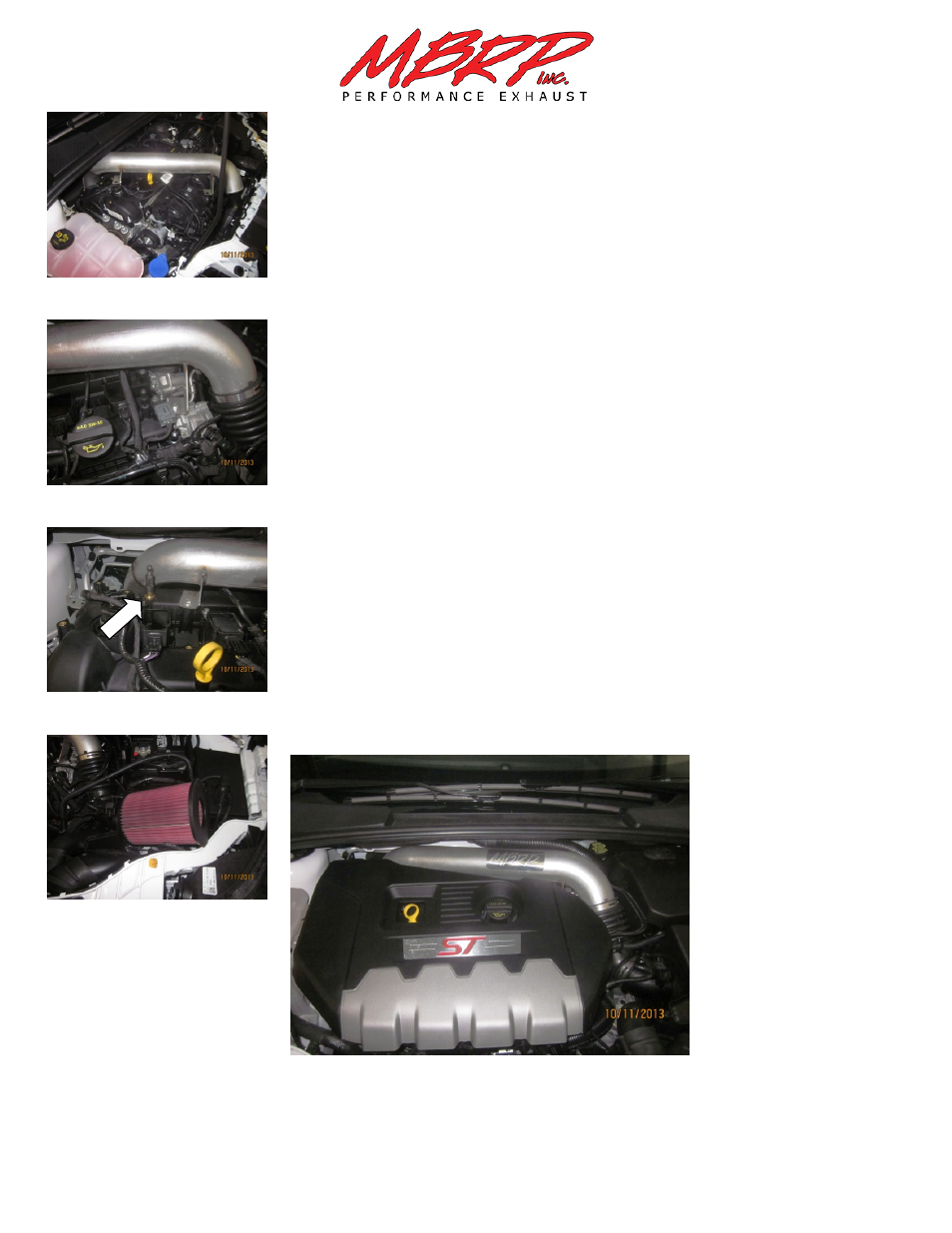

Figure 6
Figure 7
Figure 8
Figure 9
