S5082 © 09/13 PAGE 4 OF 4
8. Slide the Passenger Side Tail Pipe hanger into the rearmost rubber
insulator. Slide a 2 ½” Clamp onto the Passenger Side Tail Pipe then
attach it to the Passenger Side Over Axle Pipe. Refer to Figure 10.
9.
Install and adjust the Exhaust Tips by tightening the bolt located on each
Exhaust Tip. Refer to Figure 11.
10. Align the exhaust as required before tightening the clamps. Starting at
the front of the exhaust tighten all clamps and connections.
11. Check along the length of the exhaust system to ensure that there is
adequate clearance around the spare tire, fuel and brake lines or any wiring.
If any interference is detected relocate or adjust.
Congratulations! You are ready to begin experiencing the improved power, sound and driving excitement of your
MBRP Inc. performance exhaust system. We know you will enjoy your purchase.

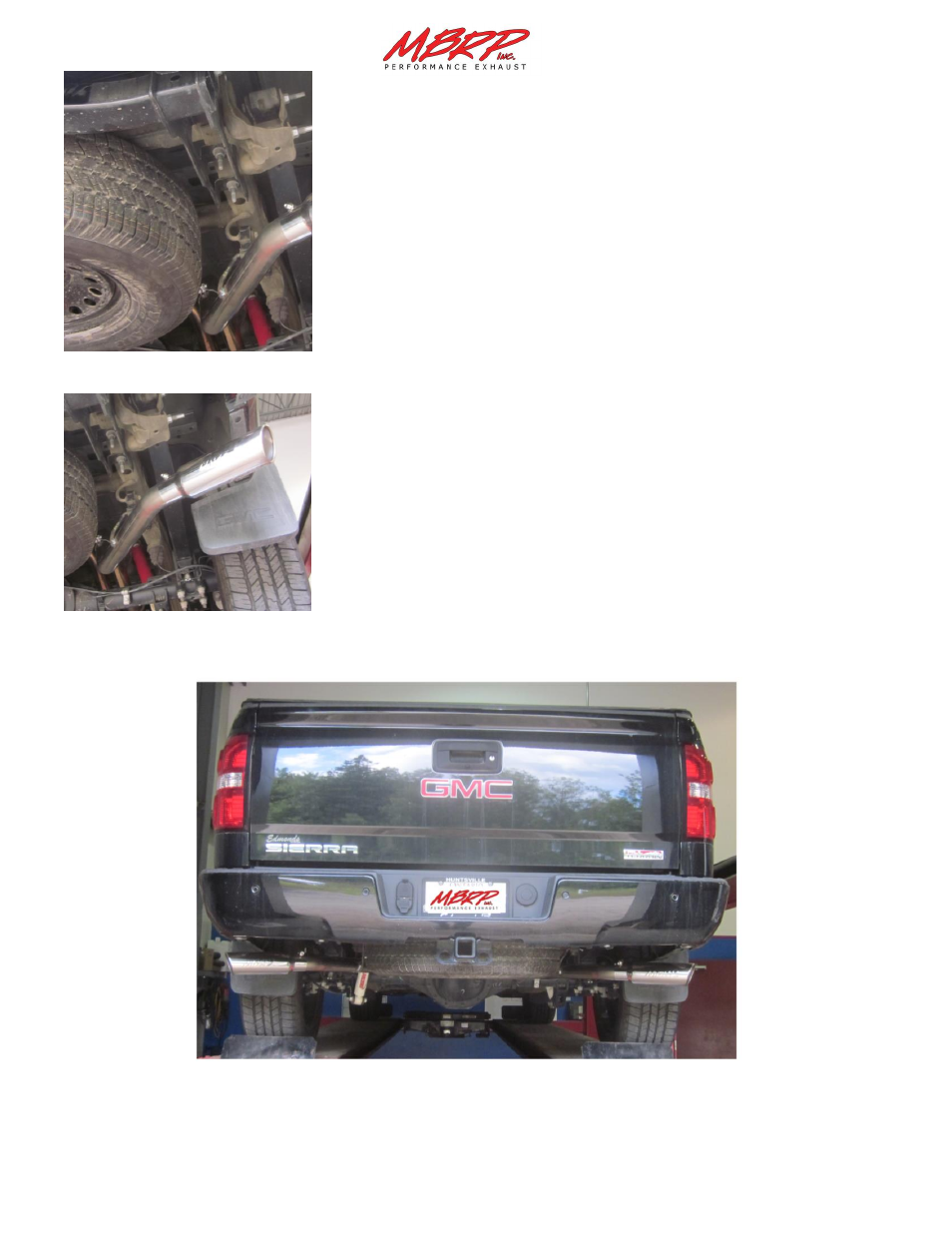

Figure 10
Figure 11
