3. Loosely install the Passenger Side Over Axle Pipe connecting it to the
Muffler passenger side outlet with a 2 ½” Clamp. Install the hanger into the
rubber insulator located above the Over Axle Pipe.
Refer to Figure 5.
4. Loosely install the Driver Side Over Axle Pipe connecting it to the Muffler
driver side outlet with a 2 ½” Clamp. Install the hanger into the rubber
insulator located above the Over Axle Pipe.
Refer to Figure 6.
5. Connect the expanded end of the Passenger Tail Pipe to the Over Axle
Pipe with the remaining the 2 ½” Clamp. Install the hanger into the factory
rubber insulator.
NOTE: 2013 models require the removal of the factory rubber insulator
and the installation of the 90° Rubber Insulator to the outside frame
mount.
Refer to Figure 7.
6. Connect the expanded end of the Driver Side Tail Pipe to the Driver Side
Over Axle Pipe, keeping brake flex lines in front of the pipe.
Refer to Figure 8.

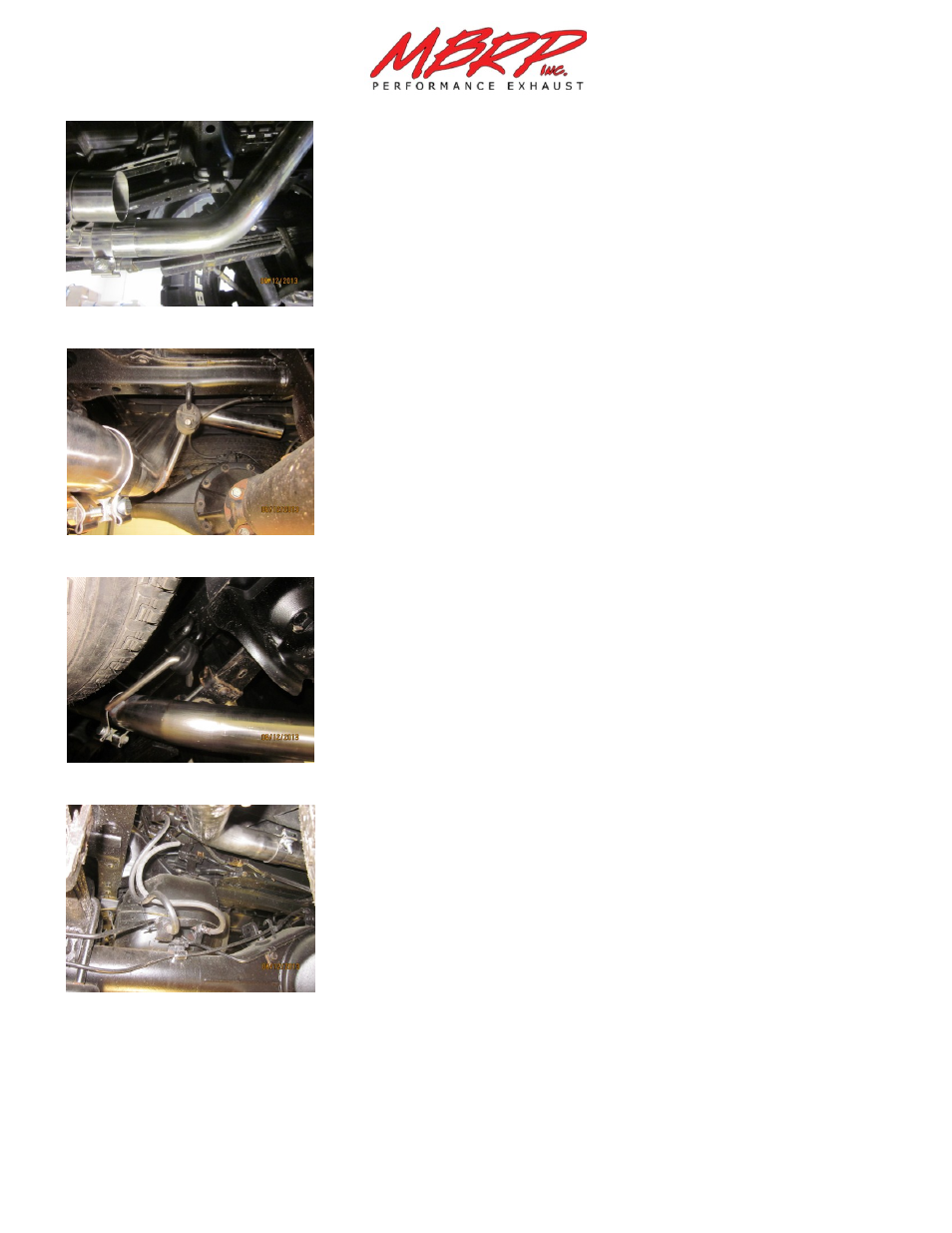

Figure 5
Figure 6
Figure 7
Figure 8
