S9201 © 04/09 PAGE 4 OF 4

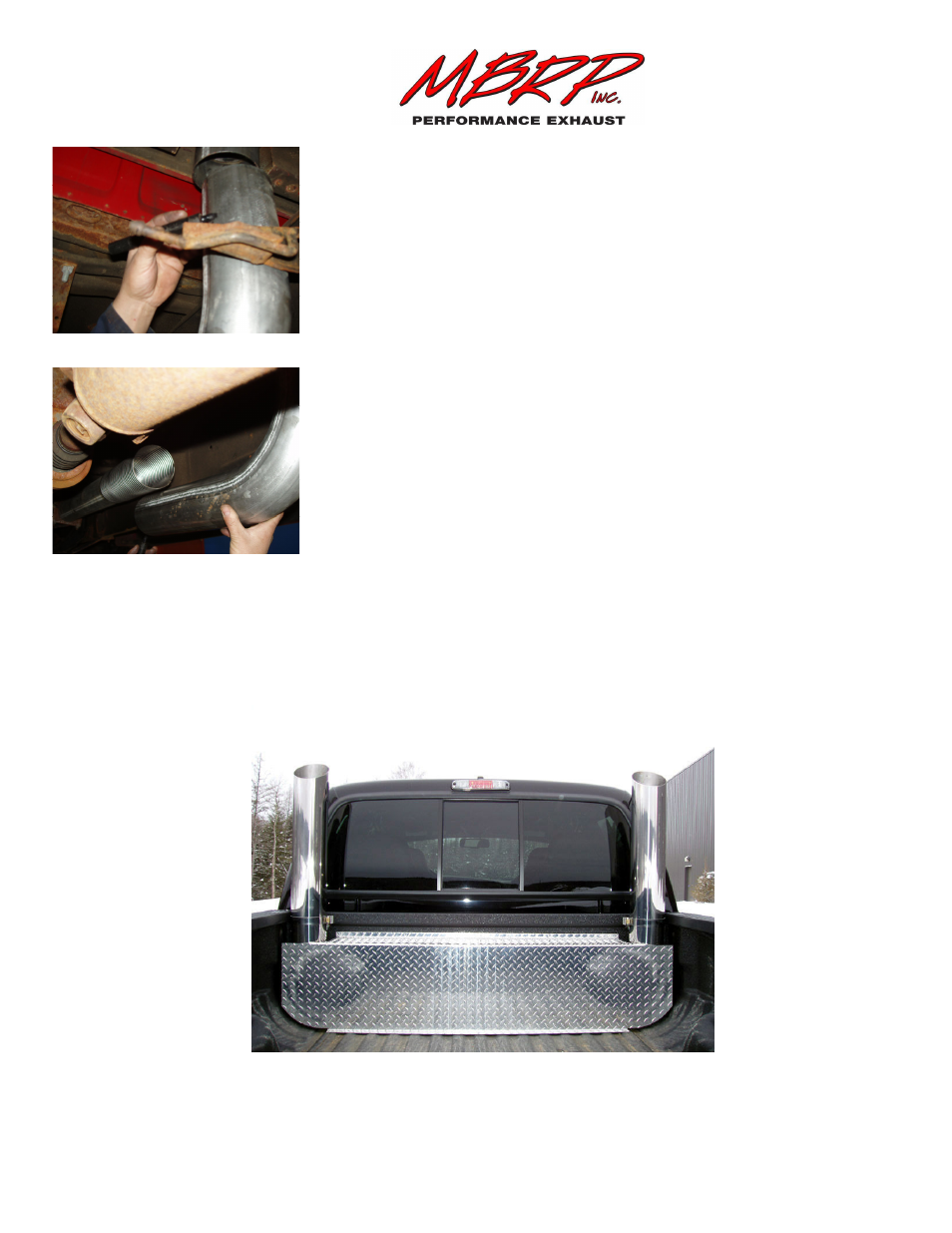

12. Measure from the “T” Pipe slip joint to the exhaust system that you are
connecting to. Mark and cut the shorter side of the 20” Elbow to the
required length so that it lines up with the Extension Pipe of the exhaust
system. Refer to Figure 8.
13. Loosely install the 20” Elbow into the “T” Pipe. Measure and mark the
20” Elbow and Extension Pipe so that you will use the full length (12”) of
Flex Pipe. Cut the pieces to the required length. Make sure you allow
overlap for clamping. Refer to Figure 9.
14. Attach the 20” Elbow to the “T” Pipe slip joint and then attach the Flex
Pipe to both the 20” Elbow and the front part of the exhaust system. Be
sure to slide the required Clamps over the Elbow and Flex Pipe before
connecting it to the vehicle’s exhaust system.
15. Make sure that the Mounting Brackets are centered on the Stacks and
tighten the fasteners holding the Mounting Brackets to the front of the
truck bed. Tighten all Clamps making sure that the Stacks remains properly
aligned.
16. Install remaining Clamps around pipes where required. Check along the
whole length of the exhaust system to ensure that there is adequate clearance
around the fuel and brake lines or any wiring. If any interference is detected
relocate or adjust.
Shown with 6” X 36” Stacks (B1610) and Cover (BB0003)
Congratulations! You are ready to begin enjoying the improved performance and driving experience
of your MBRP Inc.
“
Smokers™” Smokers™” Smokers™” Smokers™” . We know you will enjoy your purchase.
Figure 8
Figure 9
