6. Cut a hole through the truck bed providing adequate clearance around
the part of the T-Pipe that passes through the truck bed. MBRP Inc.
recommends using a 5” diameter hole saw. It may be required to cut
away part of a bed rail. Refer to Figure 4.
7. Set the T-Pipe Assembly at the desired height from the floor of the
bed (This will set the height of the Stacks). Using spacers to hold the
T-Pipe at the desired height, loosely attach the Stacks to the
Mounting Brackets making sure that they are straight. This will hold
the assembly steady while you line up to the exhaust under the vehicle.
Refer to Figure 5.
8. Measure from the T-Pipe slip joint to the exhaust system you are
connecting to. Mark and cut the shorter side of the
14” Elbow to the
required length so that it lines up with the front part of the exhaust
system. Refer to Figure 6.
9. Attach the
14” Elbow to the T-Pipe slip joint and then attach the Flex
Pipe to both the
14” Elbow and the Extension Pipe. Be sure to slide
the required Clamps over the
14” Elbow and Flex Pipe before
connecting it to the vehicle’s exhaust system. Refer to Figure 7.
10. Make sure that the Mounting Brackets are centered on the Stacks
and tighten the fasteners holding the Mounting Brackets to the front
of the truck bed. Tighten all Clamps making sure that the Stacks
remain properly aligned.

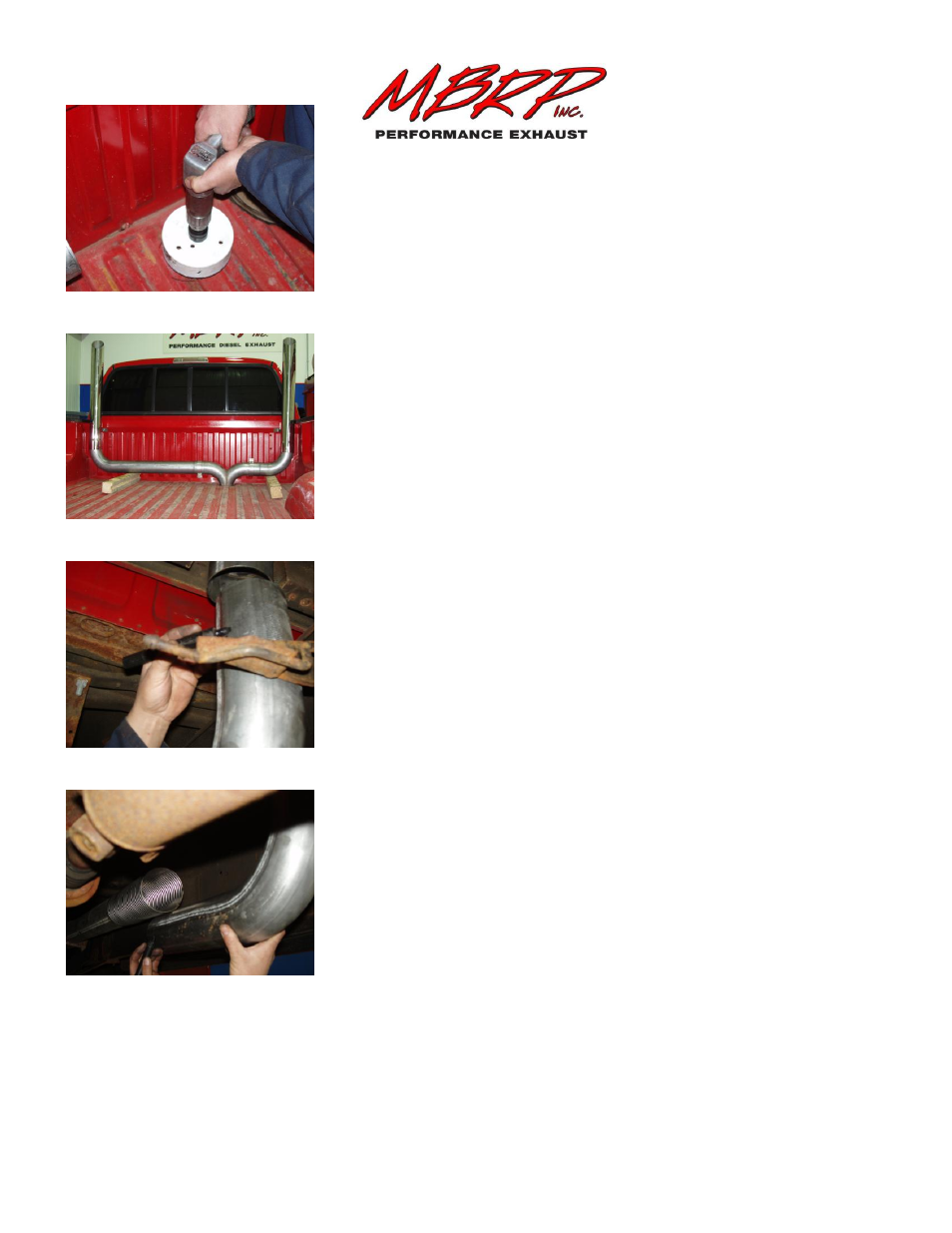

Figure 4
Figure 5
Figure 6
Figure 7
