S8101 © 09/09 PAGE 2 OF 4
Removal of Stock System:
1. Separate the stock exhaust system at the slip joint by the muffler.
Remove the rear exhaust from the rubber hangers and remove
the system from under the truck.
2. Using a 15mm socket or wrench, remove the (2) bolts at the
turbo flange and remove the stock down pipe.
Installation of MBRP Inc.
““““Smokers Smokers Smokers Smokers TM TM TM TM ”””” :
1. Install the Down Pipe in the same position as the stock down
pipe placing the hanger into the OEM rubber insulator and
attaching the flared end to the turbo using the supplied hardware.
Do not fully tighten until all components are in place. Refer to
Figure 1.
2. Loosely install the Extension Pipe over the Down Pipe. The
Extension Pipe may require cutting to accommodate vehicles
other than the Quad Cab long box. Refer to Figure 2.
3. Loosely assemble the in bed portion of the T-Pipe Assembly (T-
Pipe, 13” Elbow and 37” Elbow). Some models may require
trimming of the T-Pipe in order to accommodate the width of the
truck bed and the Stacks that have been purchased. Be sure to
place the Band Clamps over the pieces before they are
assembled.
4. Place the Stacks onto the T-Pipe Assembly and place into the
desired position in the truck bed. The 37” Elbow should be on
the driver side so that the T-Pipe passes through the bed floor
towards the passenger side. Refer to Figure 3.
5. Place the Stack Mounting Brackets between each Stack and
the front of the truck bed so that the Stacks are properly spaced
from the front of the truck bed. Center the Stack Mounting
Brackets on the Stacks and mark the front of the truck bed in
the center of the slotted holes in the Stack Mounting Brackets.
Center punch the marks and drill holes to accommodate a 3/8”
Bolt (included with the Stack Mounting Brackets). Refer to
Figure 4.

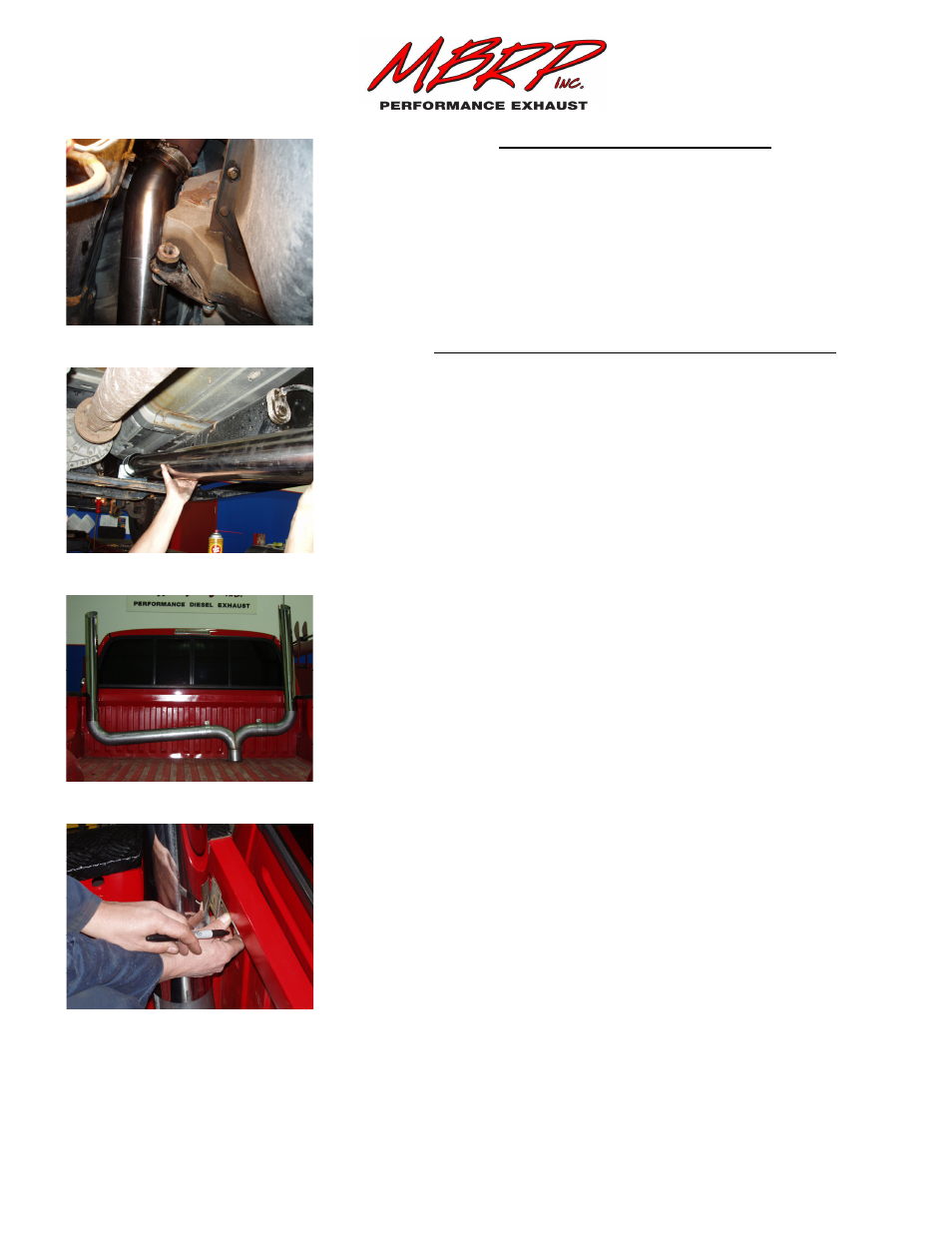

Figure 1
Figure 2
Figure 3
Figure 4
