6. Install the Flex Pipe on the outlet of the Catalytic Converter or DPF
depending on the model year of your truck. Place the 20” Elbow in position
and mark the locations to cut. Allow 3” of overlap at the Flex Pipe and 20”
Elbow connections. Cut the 20” Elbow to the required length and install.
Remember to slide the required Clamps onto the parts before assembly.
Refer to Figure 5.
7. Slide the Bed Mounting Bracket onto the Extension Pipe. Install the
assembly on the outlet of the 20” Elbow with the required Clamp. Reinstall
the Stack by sliding the inlet over the Extension Pipe and then securing the
Stack to the Stack Mounting Bracket with the Clamp supplied with your
Stack. Align the system and tighten all Clamps to ensure your
“Smokers “Smokers “Smokers “Smokers
TM TM TM TM
””””
exhaust remains properly aligned.
8. Slide the Bed Mounting Bracket to the desired position on the Extension Pipe to allow installation of the mounting
hardware. Ensure the Stack is aligned vertically. Trace the Bed Mounting Bracket hole from the bracket onto the
bed floor and drill a hole to accommodate the 3/8” hardware supplied. Secure the Bed Mounting Bracket to the
truck and tighten the Clamp to the Extension Pipe. The Bed Mounting Bracket will ensure the Stack remains in
position and doesn’t vibrate.
9. Check along the whole length of the exhaust system to ensure that there is adequate clearance around fuel lines,
brake lines and any wiring. If any interference is detected relocate or adjust.
Congratulations! You are ready to begin experiencing the improved power, sound and driving experience of your
MBRP Inc.
“Smokers Smokers Smokers Smokers
TM TM TM TM
””””
. We are certain you will enjoy your purchase.

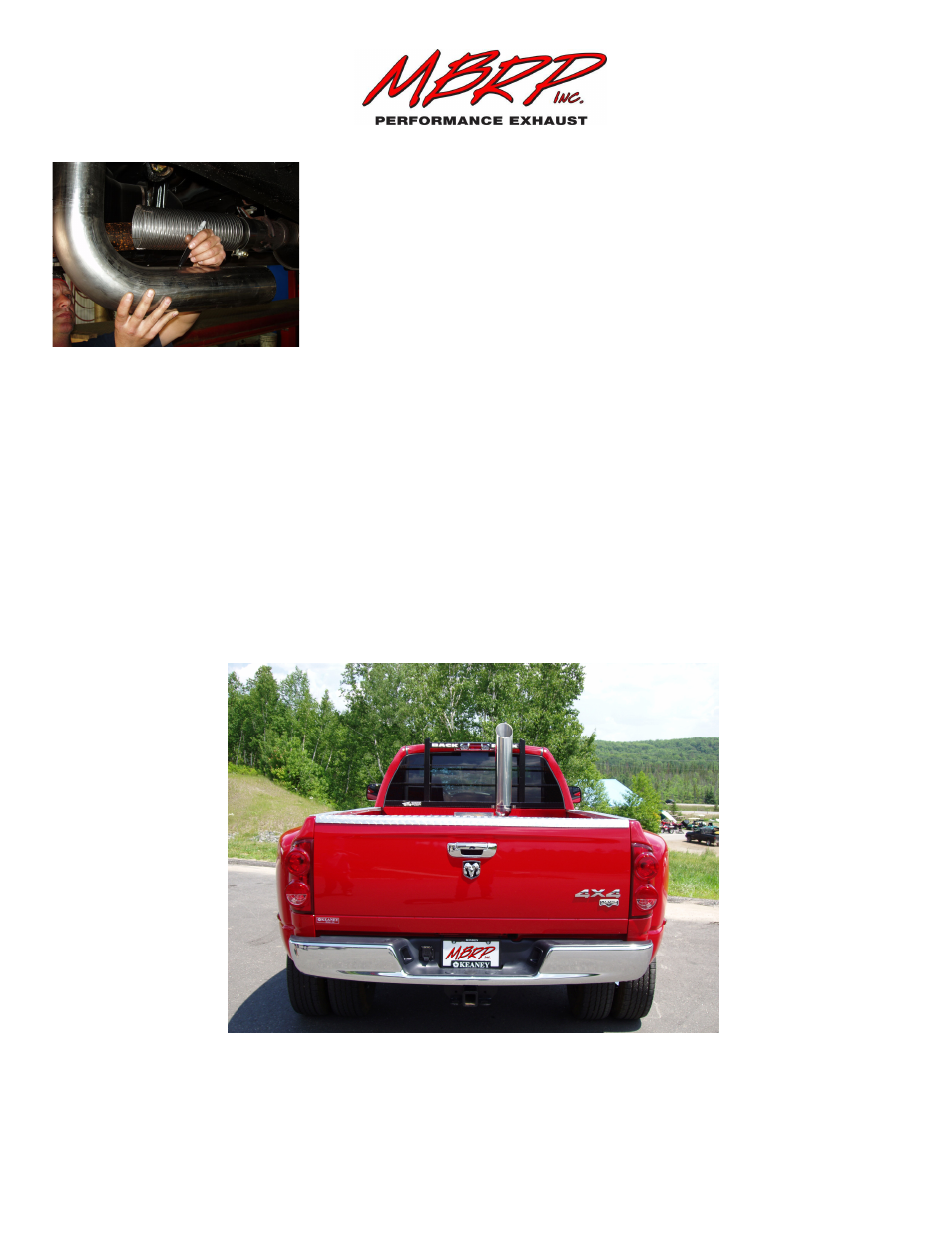

Figure 5
