S9201 © 04/09 PAGE 4 OF 4

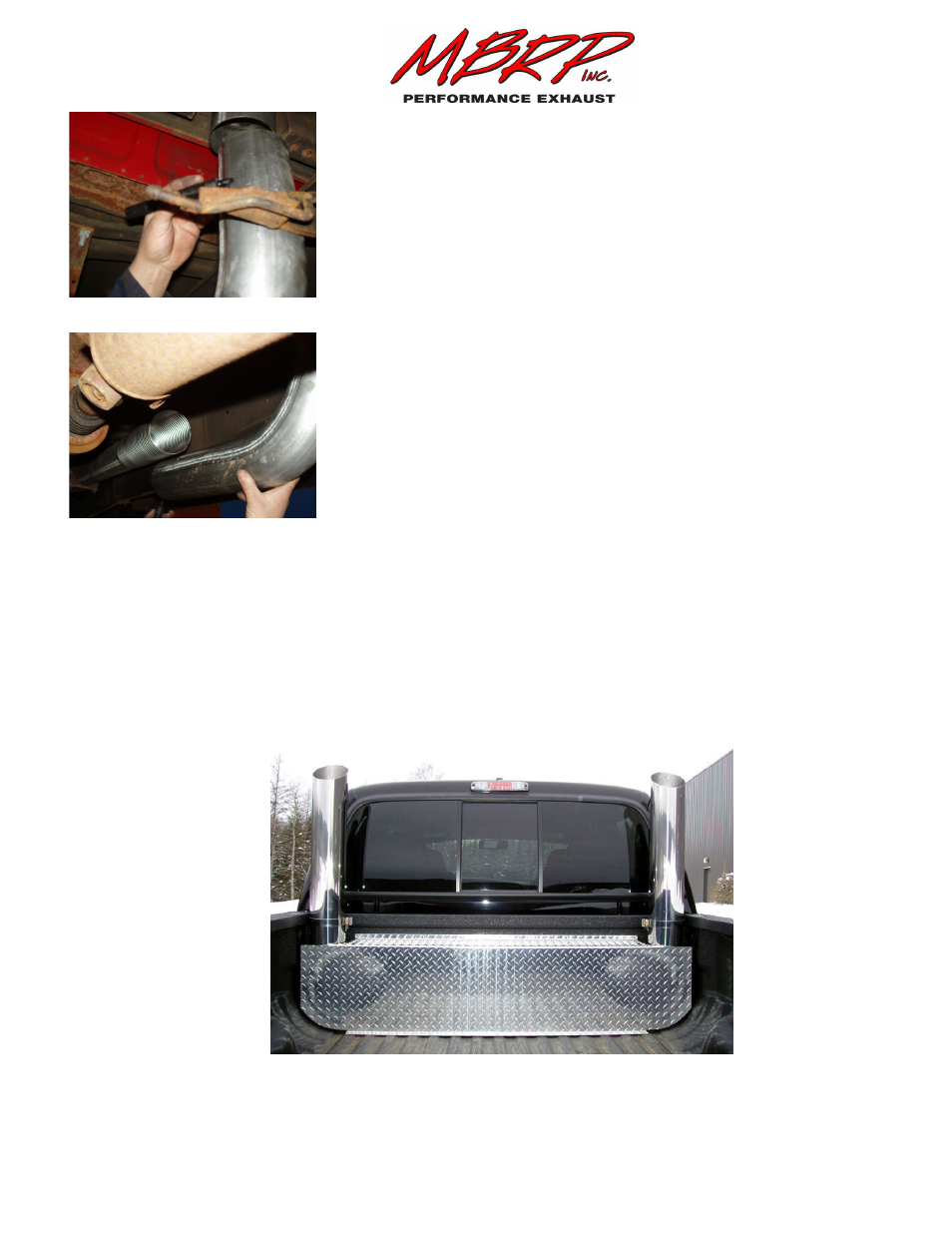

12. Measure from the “T” Pipe slip joint to the exhaust system that you are
connecting to. Mark and cut the shorter side of the 20” Elbow to the required
length so that it lines up with the Extension Pipe of the exhaust system. Refer
to Figure 10.
13. Loosely install the 20” Elbow into the “T” Pipe. Measure and mark the
20” Elbow and Extension Pipe so that you will use the full length (12”) of
Flex Pipe. Cut the pieces to the required length. Make sure you allow overlap
for clamping. Refer to Figure 11.
14. Attach the 20” Elbow to the “T” Pipe slip joint and then attach the Flex
Pipe to both the 20” Elbow and the front part of the exhaust system. Be sure to
slide the required Clamps over the Elbow and Flex Pipe before connecting it
to the vehicle’s exhaust system.
15. Make sure that the Mounting Brackets are centered on the Stacks and
tighten the fasteners holding the Mounting Brackets to the front of the truck
bed. Tighten all Clamps making sure that the Stacks remains properly aligned.
16. Install remaining Clamps around pipes where required. Check along the whole length of the exhaust system to ensure
that there is adequate clearance around the fuel and brake lines or any wiring. If any interference is detected relocate
or adjust.
Shown with 6” X 36” Stacks (B1610) and Cover (BB0003)
Congratulations! You are ready to begin enjoying the improved performance and driving experience of your
MBRP Inc.
“
Smokers™” Smokers™” Smokers™” Smokers™” . We know you will enjoy your purchase.
Figure 10
Figure 11
