Avalon Stoves Direct Vent Freestanding Stove - Manual (Page 35)

Maintenance
(for qualified service personnel only)
3 5
Travis Industries 1 0 0 - 0 1 1 6 9 _ 0 0 1 4 0 5 0 1 1 9

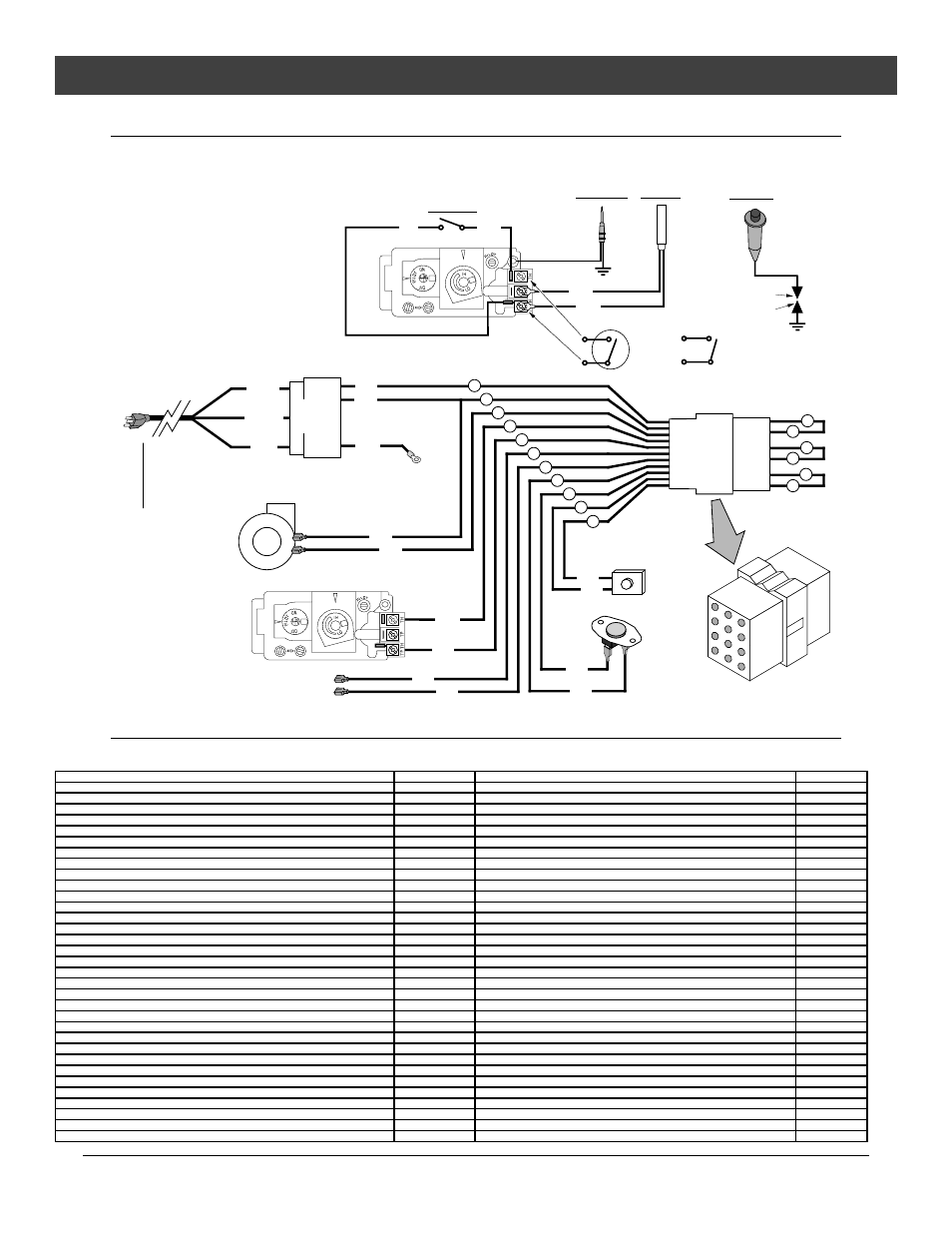

Wiring Diagram
Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation. Verify proper operation after servicing.
120 Volt Wiring
Millivolt Wiring
(for gas control valve)
Orange
White
Piezo Igniter Thermopile
Red
Thermocouple
Copper Co-Axial
Wire
Red
Optional Remote
Control
Spark Electrode
Pilot Hood
On/Off Switch
Brown
Optional
Thermostat
7
4
10
9
1
3
Optional
Blower
Green Hot
(black)
Common
(white)
Ground
(green)
Blower
Snap Disk
Power In
Molex
Connector
Power Supply
Ground
(attached to stove)
White
Black
1
3
5
7
2
4
6
8
9
12
11
10
3
6
White
9
2
5
Black
Remote
Control
Molex
Connector
8
11
Blue
Blue
Optional Regulator
Solenoid
1
4
Black
Black
7
Black
Black
10
Red
Brown
Rheostat
Gas Control
Valve
Replacement Parts List
Caution: Use only Travis Industries replacement parts. Do not use substitute materials.
BLOWER MNTNG BRKT ASS'Y, LEFT - G18/G22/G39 228-20001 INJECTOR, PILOT - LP (#35) # - (ORIFICE) USE w/SIT PILOT ONLY 100-05217
BLOWER MOUNT GRMT/SPACER (4)# - 1997+ PEL/1995+ GAS 93005017 INJECTOR, PILOT - NG (#62) # - (ORIFICE) USE w/SIT PILOT ONLY 93006508
BLOWER MOUNTING BRKT, G18/G22 - FAN KIT 99000201 KNOB (PLASTIC), RHEOSTATS # - BLACK W/GOLDLINE - GAS/WOOD 100-04111
BLOWER, CONV, G3/G7-10/G14- # - 16/G18/G21-26/P9-10 - PHD KIT 98900755A LOG EMBERS, ROCK WOOL # 93006053
BURNER ASS'Y (EF), B38 LP/NG - TREE of LIFE 226-20049 LOG SET, LS22 - 8 PIECE# - T.O.L. 172-00023
BURNER O-RING, #08, 3/16 id" - 5/16" od BERK/SHEFF SHELL KIT 100-05101 MAGNET w/SHEATH - 1.000 x .750" 1/4" THICK 100-02802
BURNER O-RINGS, #20, 7/8" id - x 1" od - B15/B17/B18 100-05102 MANUAL, TREE OF LIFE 2005 100-01169
CONV PARTS, LP - G18/22/G24- - G25('03) - EF BURNER/SIT(#175) 93006503 MIXING TUBE ASS'Y, G18/21-2/39 - w/B15/17/18/21/23/36/38 BURNER 100-05401
CONV PARTS, NG - G18/22/33/34 - SIT PILOT/VALVE 225-10304 ORIFICE, BURNER - .0625" # - 1.180" BRASS HEX (.0625 dia) 100-05206
DOOR ASS'Y, LT - TOL CASHMERE 224-12025 ORIFICE, BURNER - No. 37 # - 1.180" BRASS HEX (.104 dia) 100-05204
DOOR ASS'Y, LT - TOL MAJOLICA 224-12027 PIEZO IGNITER, ALL GAS UNITS 100-05110
DOOR ASS'Y, LT - TOL MET BLK 224-12023 PILOT ASS'Y, NG - S.I.T. # - COMPLETE 100-05403
DOOR ASS'Y, LT - TOL VERDE MST 224-12029 PILOT BAFFLE (BRK/PRA - 20 GA ALZ - 1.976 x 1.500 210-05138
DOOR ASS'Y, RT - TOL CASHMERE 224-12026 PILOT ELECTRODE, S.I.T. PILOT - ASSEMBLY 93006523
DOOR ASS'Y, RT - TOL MAJOLICA 224-12028 PILOT HOOD, S.I.T (REMVABLE) - REMOVEABLE - 2000 93006517
DOOR ASS'Y, RT - TOL MET BLK 224-12024 PILOT TUBE, S.I.T. PILOT ASSY - USE w/S.I.T. PILOT ONLY 93006522
DOOR ASS'Y, RT - TOL VERDE MST 224-12030 POWER CORD, w/MOLEX CONNECTOR - (TERMINATED) 100-00260
DOOR HNG S-ASS'Y, LT - TOL BLK - BLACK PAINTED 220-00140 RHEOSTAT, RECTANGULAR - w/OFF - (WALL) w/NUT & WASHER 100-00122
DOOR HNG S-ASS'Y, LT - TOL CSH - CASHMERE PAINTED 220-00139 SIDE GLASS ASS'Y - T.O.L. 224-22025
DOOR HNG S-ASS'Y, RT - TOL BLK - BLACK PAINTED 220-00142 SNAP-DISC - 120deg NO # - NORMALLY OPEN 100-00231
DOOR HNG S-ASS'Y, RT - TOL CSH - CASHMERE PAINTED 220-00141 STOVE PACK, TOL - CASHMERE - #459 225-10459
ENAMEL TOUCH-UP - CASHMERE - 15 ml BOTTLE 100-02409 STOVE PACK, TOL - MAJOLICA - #458 225-10458
ENAMEL TOUCH-UP - MAJOLICA - 15 ml BOTTLE 100-02410 STOVE PACK, TOL - MET BLACK - #457 225-10457
ENAMEL TOUCH-UP - VERDE MIST - (GREEN) 15 ml BOTTLE 100-02411 STOVE PACK, TOL - VERDE MIST - #472 225-10472
FACE HINGE LEAF, TOL - BLACK - BLACK PAINTED 220-00144 SWITCH, ON/OFF - SMALL, GAS # - 1996 & UP, ALSO 1995 DV 98900747
FACE HINGE LEAF, TOL - CSHMRE - CASHMERE PAINTED 220-00143 THERMO-COUPLE - S.I.T. # - USE w/S.I.T. PILOT ONLY 93006518
FLEX PIPE, 3/8"od x 12" BLK # - 13-1/8" WITH FITTINGS 100-05115 THERMO-GENERATOR - S.I.T. # - (THERMO-PILE) - S.I.T. PILOT 93006519
FLUE STARTER SECT., G18/G22 - G22/G28 - 2.188" x 6.629" dia 93006555 TOOL, KEY - DIE CAST ZINC - 1/4" x 3.75" 100-02314
GASKET, GLASS 15/16x54" 302-B - VARIOUS WOOD, PELLET & GAS 99900408 VALVE REGULATOR, LP SIT # - S.I.T. # 907.204 100-05504
GLASS SPRING PIN ASSY, 2004+ - ALL UNITS w/GLASS FRAME ASS'Y 221-22220 VALVE REGULATOR, NG SIT # - S.I.T. 907.201 93006500
GLASS w/FRAME ASS'Y, G18 '05/ - G39 224-21015 VALVE, NG - S.I.T. (1.6-3.5) - S.I.T. # 820.704 100-05508
GLASS, SIDE w/GSKT - T.O.L. - SERVICE PART 250-00216 WIRE HRNS, BLWR - G18/21/22/# - G39(OPT. BLOWER), G31 (MAIN 1) 100-00341
HW PACK, BLOWER - G18/G22 - #164 98900489 WIRE HRNS, MAIN - G18/G22 # - Small gas units (NO SWITCH) 100-00367
HW PACK, LEG LVL BOLT, CAST # - 1/4-20 - FOUR w/RUBBER TIPS 98900415
