5.6 Motion Detection Configuration Page (Set Alarm)
This page allows user to configure motion detection to trigger alarms:

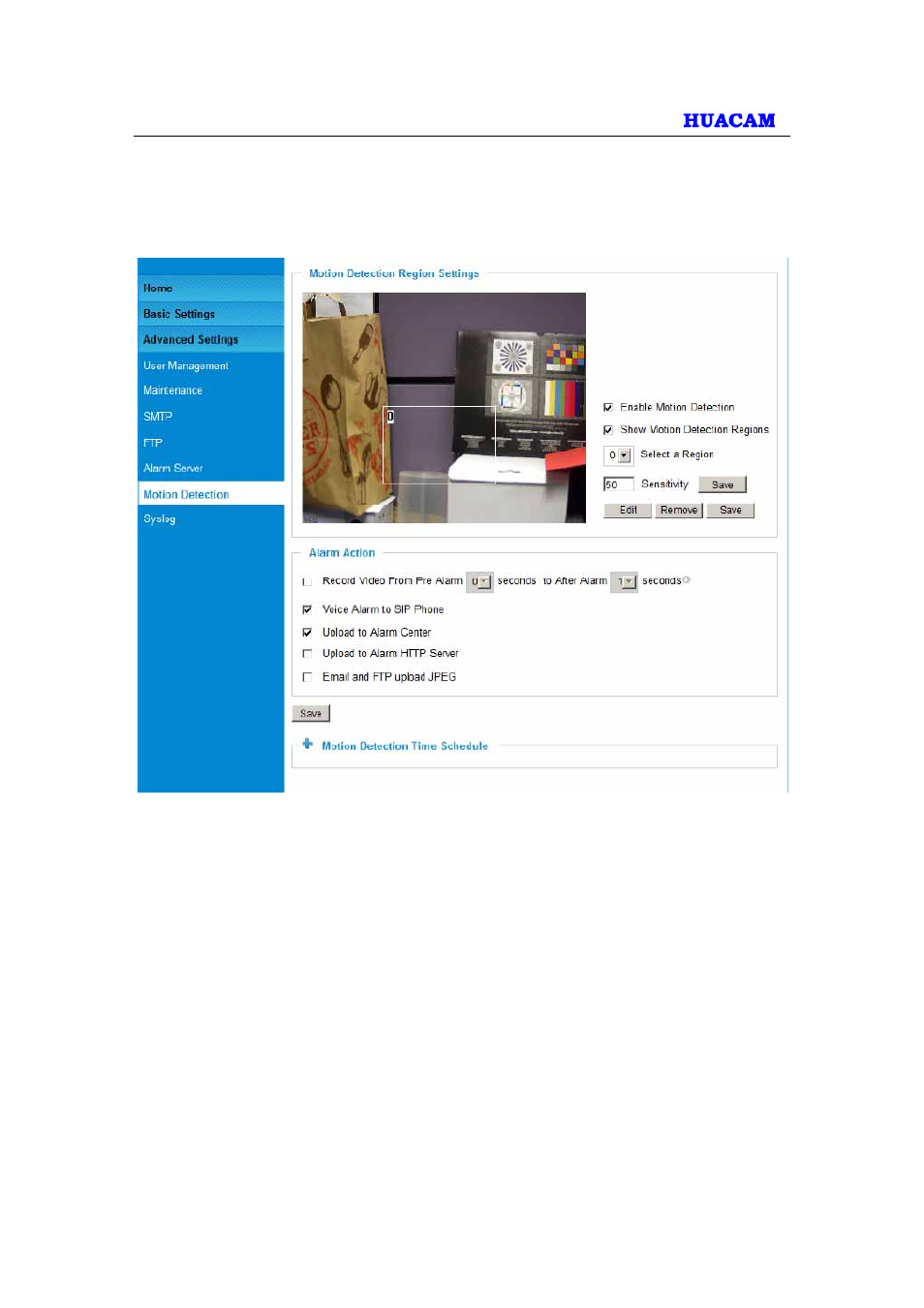

Figure 15-1: Motion Detection Configuration Page
• Enable Motion Detection: When checked, Motion Detection enabled.
• Show Motion Detection Regions: When checked, Motion Detection region with number will
be displayed in White Rectangle in the screen; when “Edit” clicked, the Rectangle will
become Red , as shown in Figure 16-1.
• Select a Region: Pull down to select and configure alarm region, altogether 16 alarm
region available, from 0 to 15.
• Sensitivity: Select configured alarm region number, input number for sensitivity to
trigger alarm, 100 is the maximum sensible value.
