b) Use the tool you have received with your fiber optic cable kit in order to
tighten the screw on the adaptor. Tighten it enough to stabilize the fiber
optic cable inside the adaptor, but don't tighten it too strongly. Tightening
the screw too much might damage the fiber optic cable.
c) Carefully but firmly insert the black adaptor inside the proper fitting in front
of the strobe's slave sensor.
• Sea & Sea Strobes‐ Insert the adaptor into the bottom grommet on the
strobe, right beneath the strobe's bulb, so that the adaptor's screw
doesn't get in its way. Insert it all the way to the end, and do not force
once you encounter any resistance (figure B).
• Nano Flash‐ Install the black and clear plastic diffuser cover on the
Nano Flash Housing, if it isn't already assembled. Insert the black
adaptor inside the lower right grommet (the one with the wider hole) of
the black diffuser cover, so that the adaptor's screw doesn't get in its
way. Insert it all the way to the end, and do not force once you
encounter any resistance (figure C).
• Remora Flash‐ Insert the adaptor into the slave sensor cap, which is
positioned at the bottom of the flash, so that the adaptor’s screw
doesn't get in its way. Insert it all the way to the end, and do not force
once you encounter any resistance (figure D).

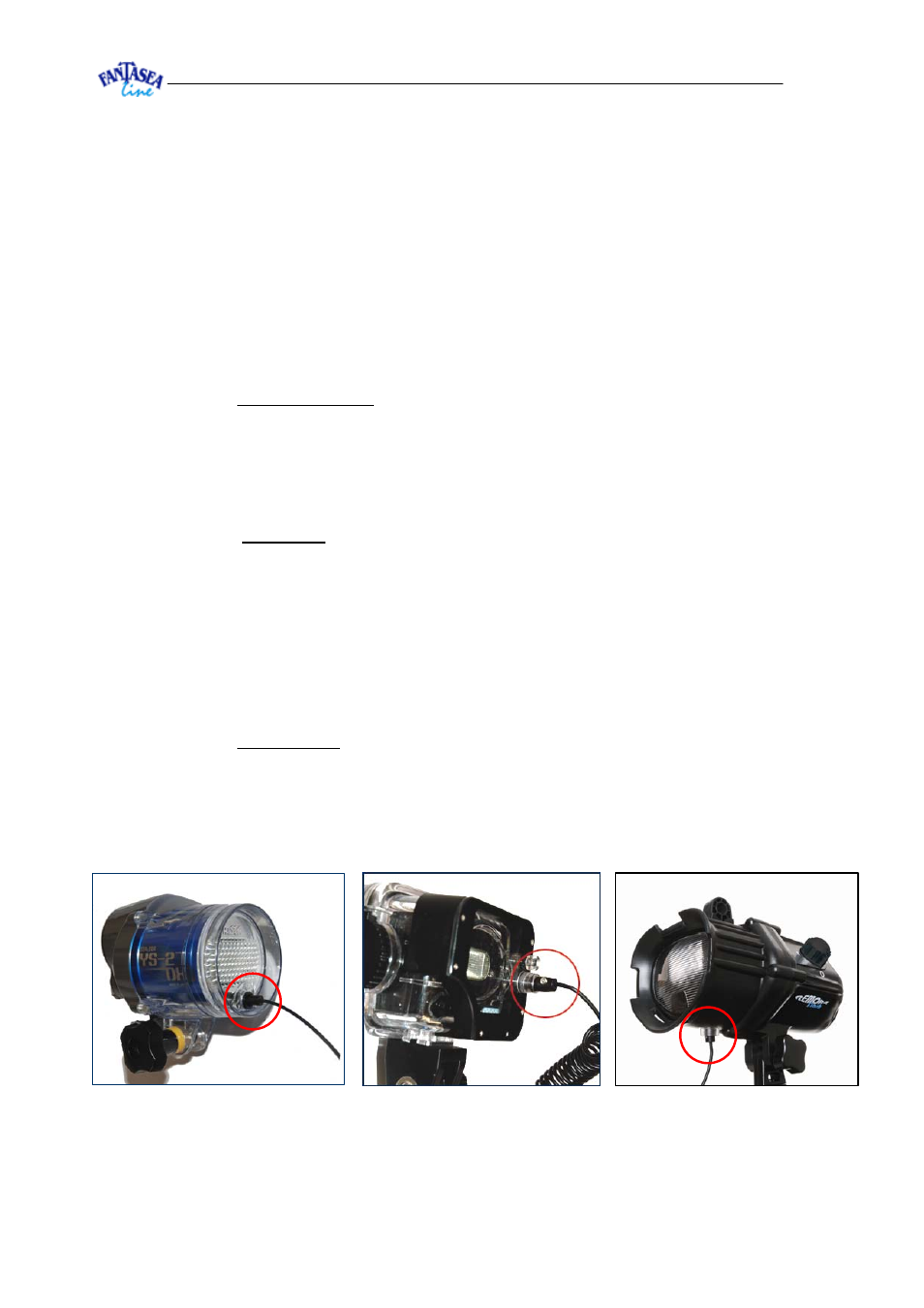

Figure B
Sea & Sea Strobe
Figure C
Nano Flash
Figure D
Remora Flash
