Clinton Electronics CE-REMOTE User Manual
Ce-remote instruction guide

CE-REMOTE Instruction Guide

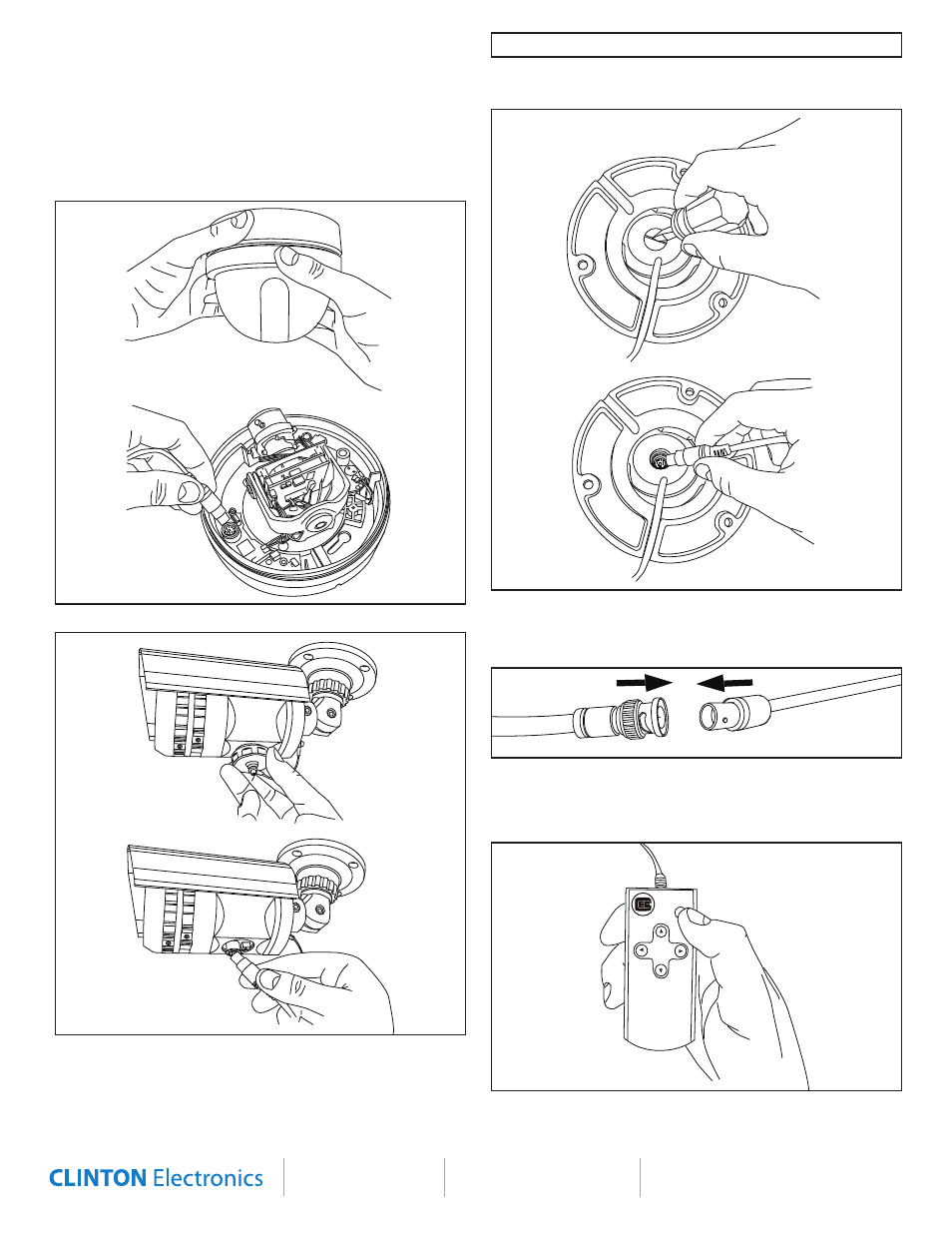

STEP 1: Connecting the Remote to the Camera
Locate the CE-REMOTE DIN port on the camera and plug in
the CE-REMOTE. The DIN connection is typically found as
shown below.
DOME CAMERAS: Remove dome cover & locate port as shown.
BULLET CAMERAS: Unscrew cap and locate port as shown.
NOTE: Other variations of Bullet Cameras may have the DIN
connection as a seperate cable with the power and video
cables or the DIN port will be next to the bracket on the back
of the camera.
TURRET CAMERAS: Unscrew the cap & locate port as shown.
STEP 2: Test Monitor Connection
Connect your test monitor to the BNC connection located on
the CE-REMOTE cable lead.
STEP 3: Activate OSD Control
Activate OSD control by pressing the SETUP button. Press and
hold the SETUP button for PIXIM DPS WDR cameras. Refer to
camera manual for detailed information on OSD adjustments.
STEP 4: When Finished Replace DIN Cap.
SETUP
NOTE: THE REMOTE DOES NOT REQUIRE BATTERIES TO OPERATE
