Clinton Electronics CE-CRK-KEY User Manual
Joystick multi-keyboard quick reference guide, Specification

FREEZE
SET
LIST
PROG
LOCK
F1
F2
F3
F4
F5
ENTER
ESC
MENU
DISPLAY
SEQ
1
2
3
4
5
6
7
8
9
10/0
11
12
13
14
15
16
ZOOM
IRIS
FOCUS
SET PRESET
GOTO PRESET
POWER
1
2
3
4
5
6
7
8
ID:000
X:120 Y:128
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17 18
19
20
1. Power Adapter
2. RS-485 Ports
3. DVRs Selection Keys
4. LCD Display
5. Press and hold for 3 seconds to lock
keypad
6. Press and hold 3 seconds to switch DVR
control mode
7. Press to pop up DVR EVENT LIST
8. DVR SET function key
9. Press to freeze the screen image
10.DVR function hotkeys
11. DVR channel keys
12. DVR Display Mode function key
13. DVR Playback function keys
14. Values adjusting keys
15. DVR MAIN MENU key
16. Enter and ESC selection keys
17. Sequence mode display function keys
18. Camera adjusting keys
19. Encorder for adjsuting values or
items selections
20. DVR connected PTZ cameras control
joystick

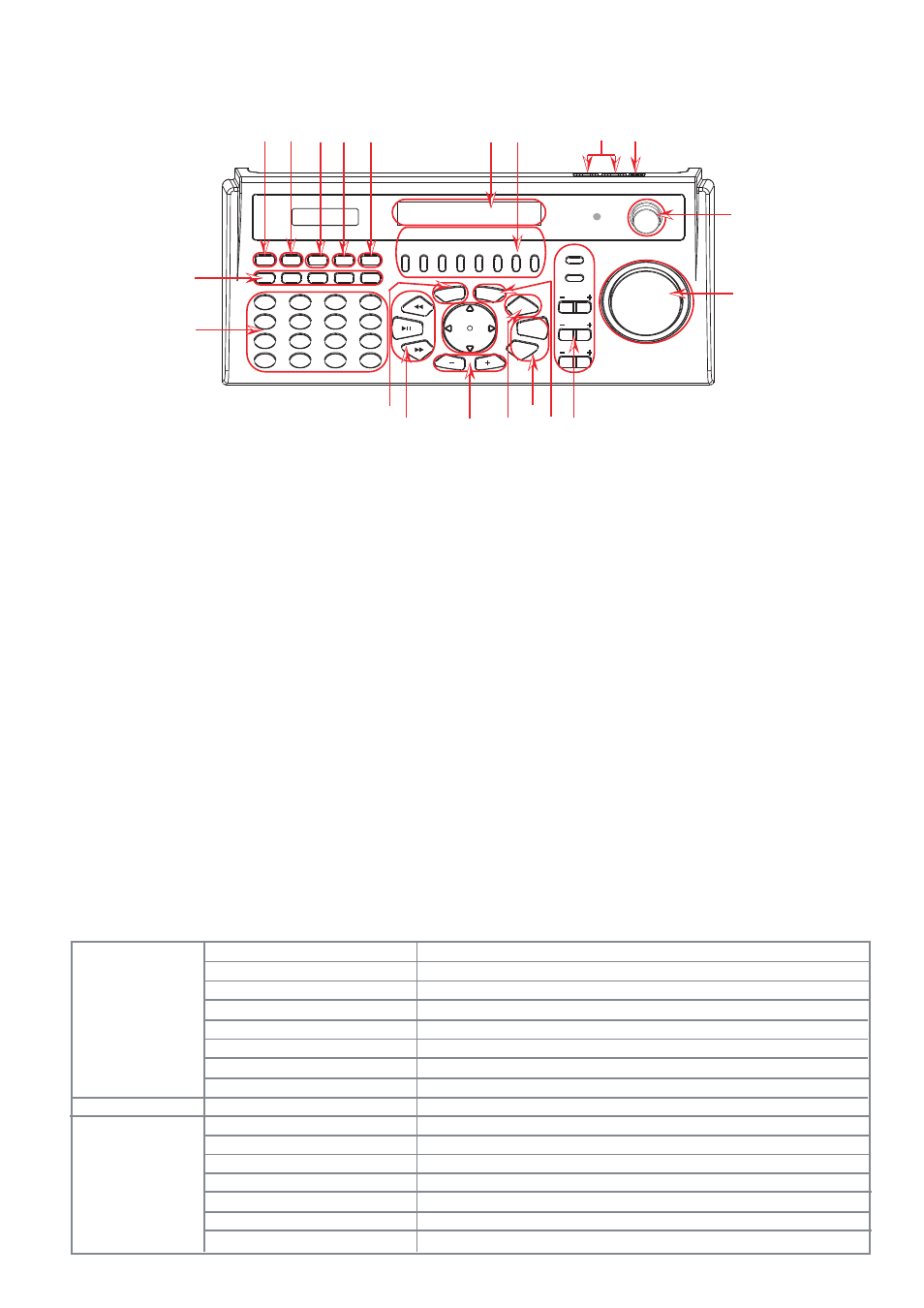

Joystick Multi-keyboard Over View
Keypads Functions
Power Indicator
Encoder Knob
Key Buttons
DVR ID Display
Control DVRs
Multi-keyboard Function
PTZ Camera Control
Joystick
RS-485
Voltage Range
Operating Temperature
Operating Relative Humidity
Weight
Power Cord Maximum Length
RS485 Signal
Dimension
Function
Connector
Specification
Yes
Yes
Yes
Yes
56
LCD: 20X2
8 DVRs
Pan
• Tilt • Zoom • Focus • IRIS • Set preset • Goto preset
X2
DC 12 V
5 ~ 40 ºC
10 ~ 75 %
700g
100M
1000M
279(L)x133(W)x58(H)mm
Specification
Joystick Multi-keyboard Quick Reference Guide
