LCD Monitors

• VGA (D-sub) connector

• Detachable desk base stand included

• 15” version supports up to 1024 x 768

(XGA) resolution

• 17” and 19” versions supports up to

1280 x 1024 (SXGA) resolution

• Contrast ratio 400:1 (ADCMLCD15) and

500:1 (ADCMLCD17 & ADCMLCD19 )

• Brightness 250cd/m2 on the 15” & 19”

versions and 300cd/m2 on the 17” version

• Response time of 4/12 ms (ADCMLCD15)

and 8 ms (ADCMLCD17 & ADCMLCD19)

• Low power consumption

• 100/240 VAC 60/50 Hz universal power

supply

• ADCMLCD15 dimensions:
360 x 150 x 350 mm (14.17 x 5.90 x 13.78 in)
Weight: 5.0 kg (11.02 lbs)

• ADCMLCD17 dimensions:
393 x 150 x 390 mm (15.47 x 5.90 x 15.35 in)
Weight: 7.0 kg (15.43 lbs)

• ADCMLCD19 dimensions:

430 x 150 x 420 mm (16.92 x 5.90 x 16.53 in)

Weight: 8.0 kg (17.63 lbs)

Monitors:

• NTSC/PAL auto detect

• VGA (D-sub) and looping S-VHS (Y/C)

BNC (composite video) connectors

• RCA-connector looping audio

• Supports up to 1280 x 1024 resolution

(ADMNM

1

LCD17) and 1024 x 768

resolution (ADMNM

1

LCD

1

5)

• Auto brightness

• Contrast ratio up to 400:1

• Internal speakers and detachable base stand

included

• Low power consumption (45 watts)

• 100/240 VAC 60/50 Hz universal power supply

• 15” and 17” dimensions (without base):

330.2 x 400.5 x 63.5 mm (13 x 15.75 x 2.5 in)

Weight: 4.3 kg (9.5 lbs)

• 15” and 17” dimensions (with base):

400.5 x 400.5 x 184.1 mm (15.75 x 15.75 x 7.25 in)

Weight: 5 kg (11 lbs)

Rack Mount Kit

• Rack mount for the ADMNM

1

LCD

1

5

and ADMNM

1

LCD

1

7

• Allows tilting of monitor

• Black metal construction

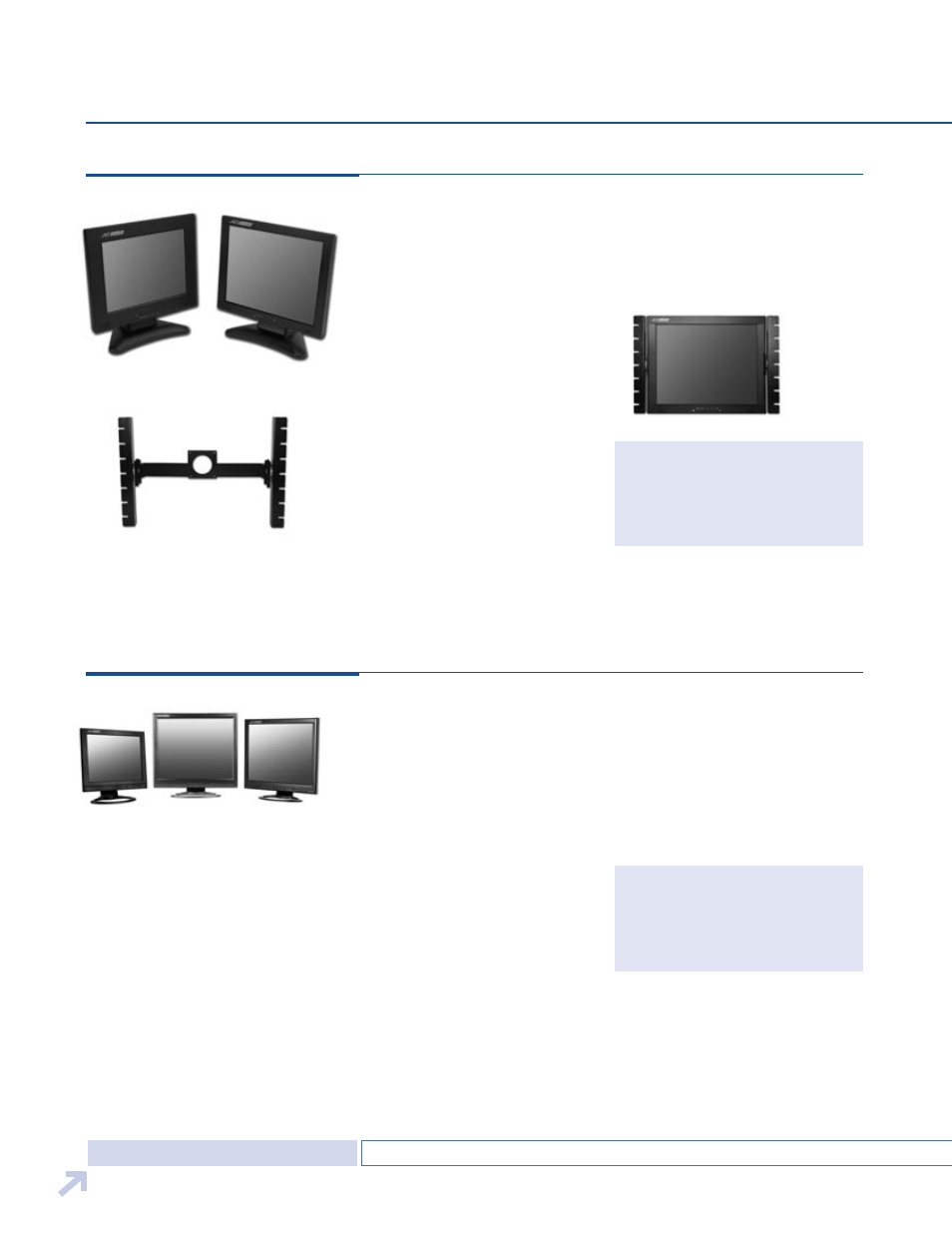

aDMnM1LCD17

aDCMLCD19

aDCMLCD17

aDCMLCD15

aDMnM1LCD15

aDMnM1LCD17

aDMnLCDRKMNT

aDCMLCD15

aDCMLCD17

aDCMLCD19

ADMNLCDRKMNT

(with mounted

AdmNm1LCd17)

aDMnLCDRKMNT

15", 17" & 19" LCD Color (Analog VGA [D-sub] Input):

15" & 17" LCD Color (Multi-Mode Inputs) & Rack Mount Kit:

aDMnM1LCD15
