Ashland Buchli Scraper B-60 - Manual (Page 13)

HYDRAULIC CYLINDER
4” x 16” High Pressure
Model B416H118 - Optional
PAGE 13

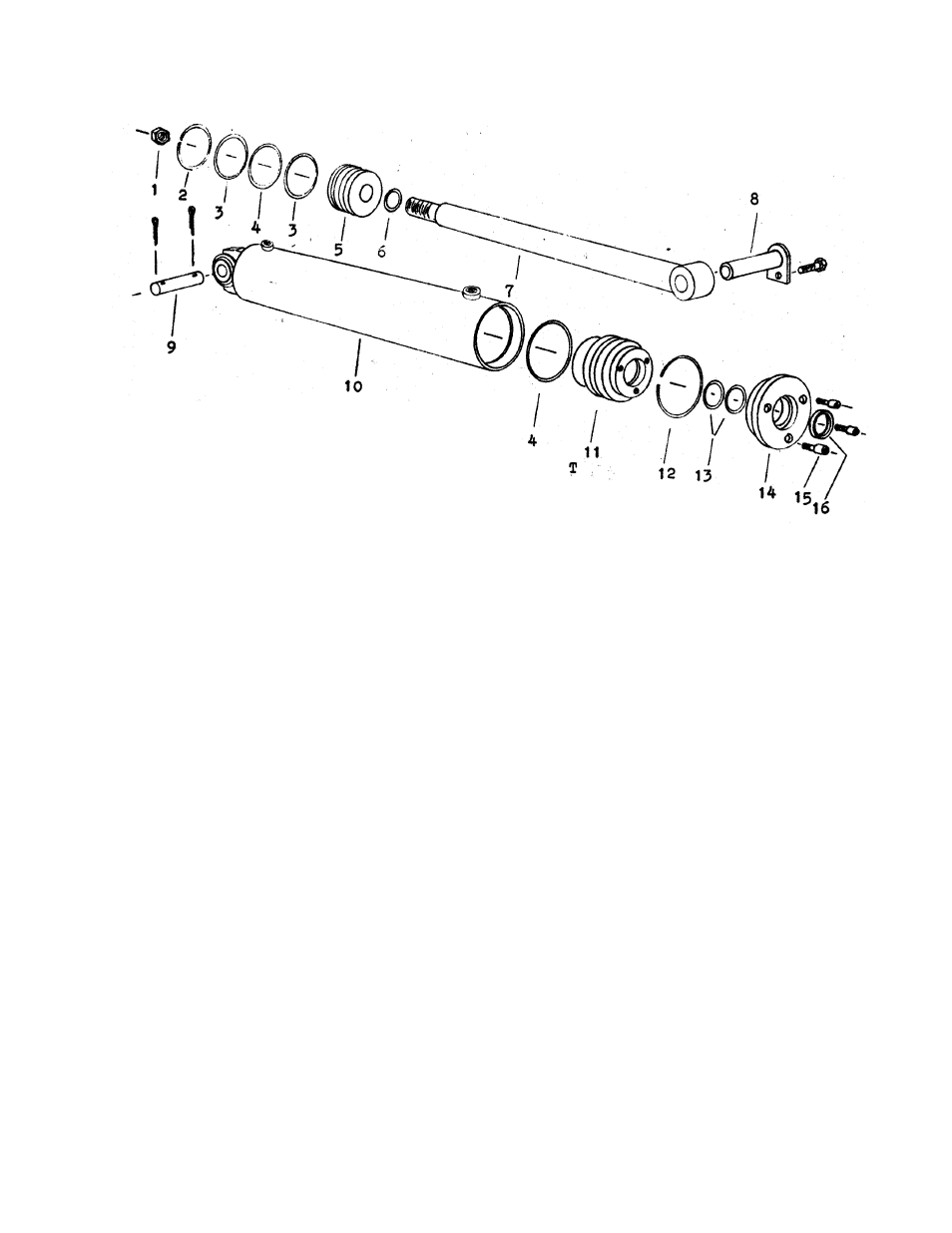

PARTS LIST
Key No. Part No. Description
1 B300H03 Piston nut, 1 NF
2 B300H04 Cast iron piston ring, 4 OD
3 B300H05 Piston backup washer, 4 OD
4 B300H06 Piston & static O-ring seal, 4 OD
5 B300H07 Piston, 4 OD
6 B400H08 Piston gasket, 1 ID
7 B45H03 Shaft, 1-1/2"
8 B4524 Pin, 1-1/8 x 6
Lockwasher, 1/2"
Capscrew, 1/2 x 1 NC
9 B40010 Pin, 1-1/8" x 4"
Cotter pin, 3/16" x 1-1/2"
10 B45H04 Barrell assembly
11 B300H11 Head gland
12 B300H12 Retainer ring
13 B22H15 Shaft O-ring seal, 1-1/2" ID
14 B300H13 Head cap
15 B22H17 Wiper seal, 1-1/2" ID
16 B22H18 Socket head capscrew, 1/4" x 1"
B300H14 Packing kit containing: 1 B300H04
2 B300H05
2 B300H06
1 B300H08
1 B300H12
2 B22H15
1 B22H17
