Ashland Buchli Scraper B-400 - Manual (Page 12)

PAGE 12

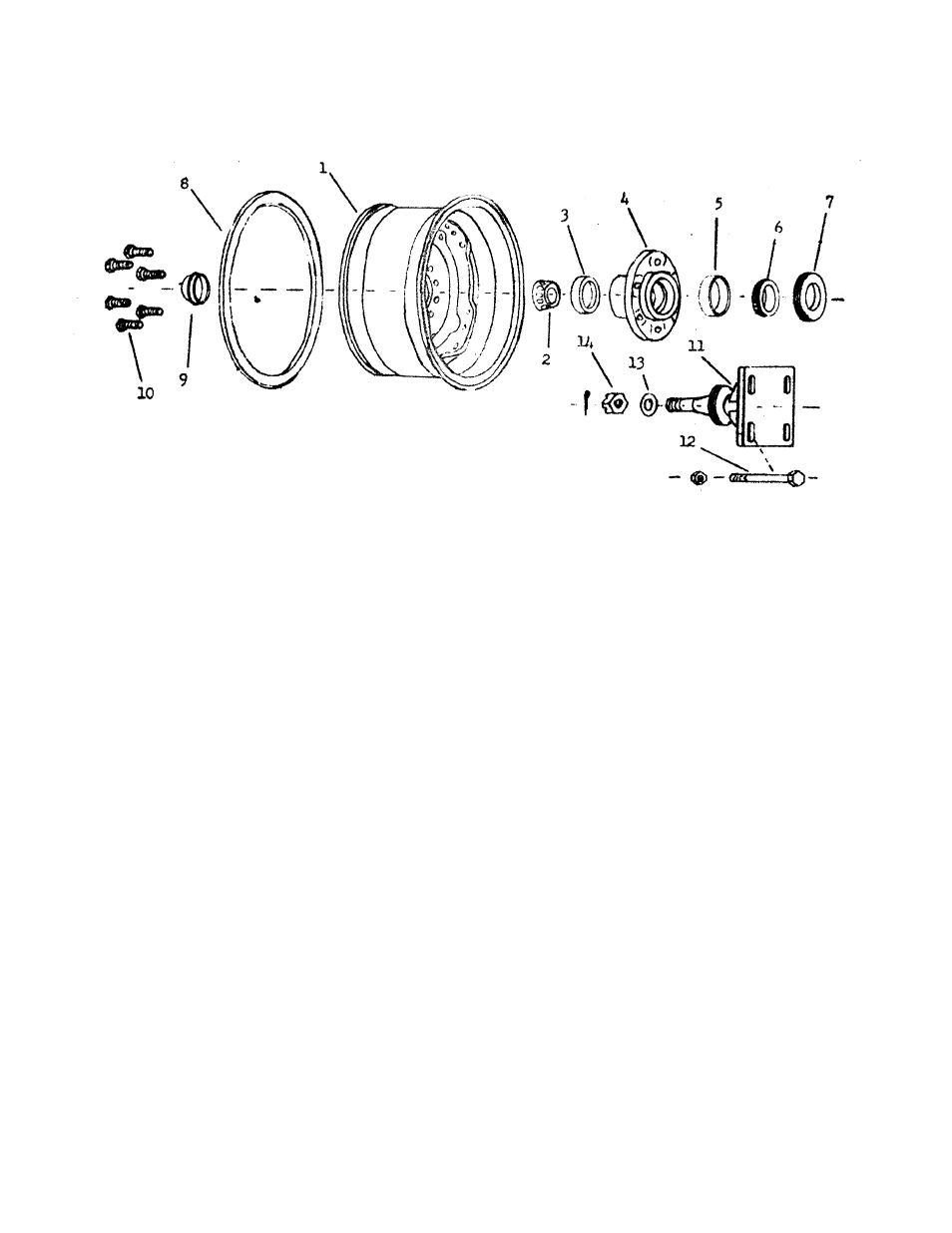

WHEEL, HUB & SPINDLE ASSEMBLY
(USED UP TO SERIAL #2672)
PARTS LIST
Key No. Part No. Description
1 D-3624W Wheel, less lock ring
2 D-3624W Wheel, complete, 20" x 5-1/2"
3 3381 Bearing cone, outer
4 3320 Bearing cup, outer
5 Q618X Hub, less bearings
6 3720 Bearing cup, inner
7 3780 Bearing cone, inner
8 421 Machine seal, pressed on
D-3624R Lock ring
9 B-8532 Hub cap
10 FS-13945 Wheel bolt
11 40019 Rear spindle
12 Bolt, 3/4" x 6"
13 40024 Keyed washer, 1-1/8" NF
14 40025 Castellated nut, 1-1/8" NF
Cotter pin, 3/16" x 2"
