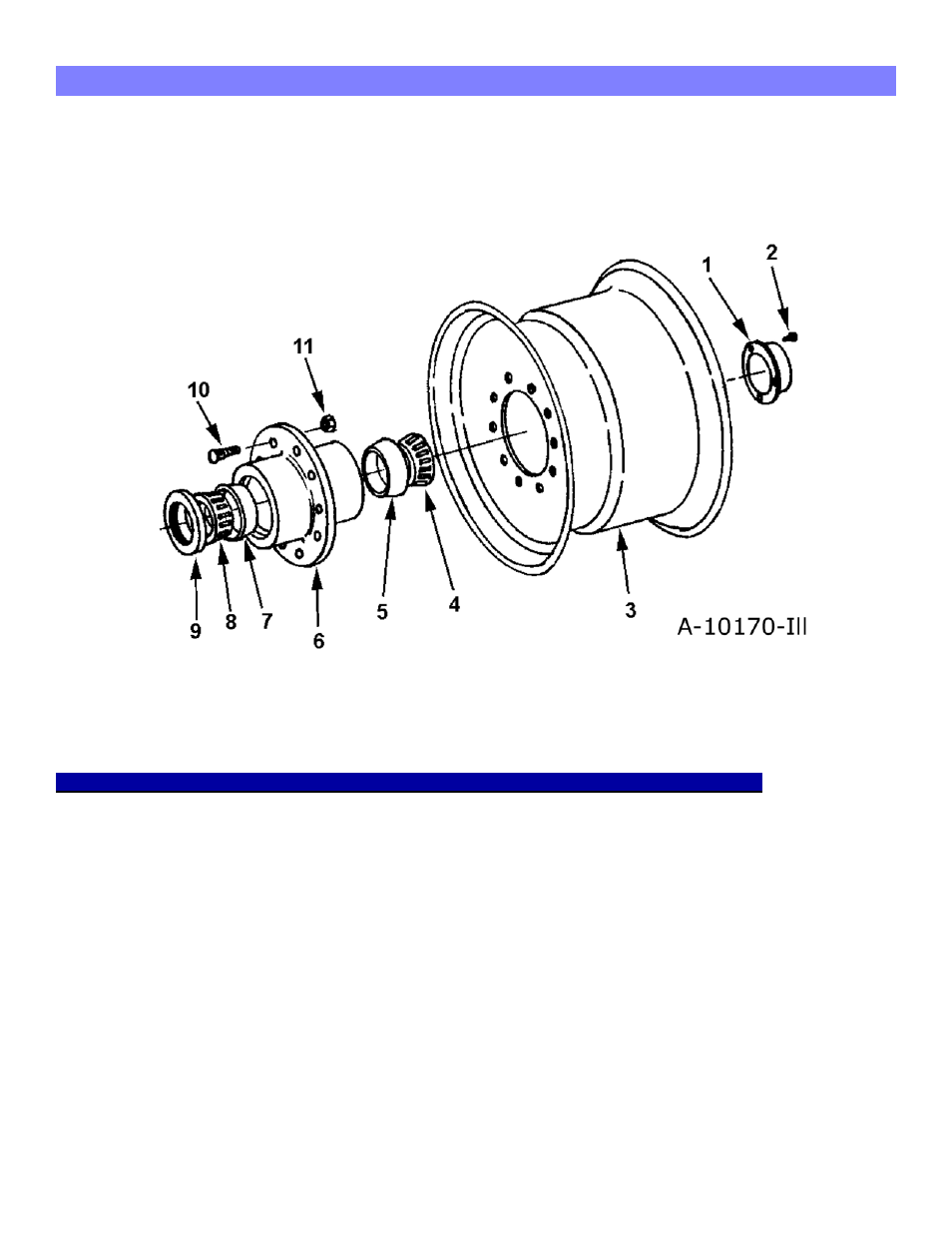

I-110 XL2
Front Wheel & Hub Assembly
Key Number
Part Number
Description
1
A14004
Hub cap
2
AFB-00080
Bolt, 5/16 NC x 1/2 lg.
3
A10170
Wheel, 14 x 16.1
4
A14015
Bearing cone ( Timken 644 )
5
A14014
Bearing cup ( Timken 632 )
6
A14010A
Hub
7
A14013
Bearing cup ( Timken 742 )
8
A14012
Bearing cone ( Timken 749 )
9
A14011
Grease seal ( CR 42624 )
10
A10176
Stud
11
A10046
Lug nut
