Ashland Buchli Scraper B-11 - Manual (Page 6)

PAGE 6

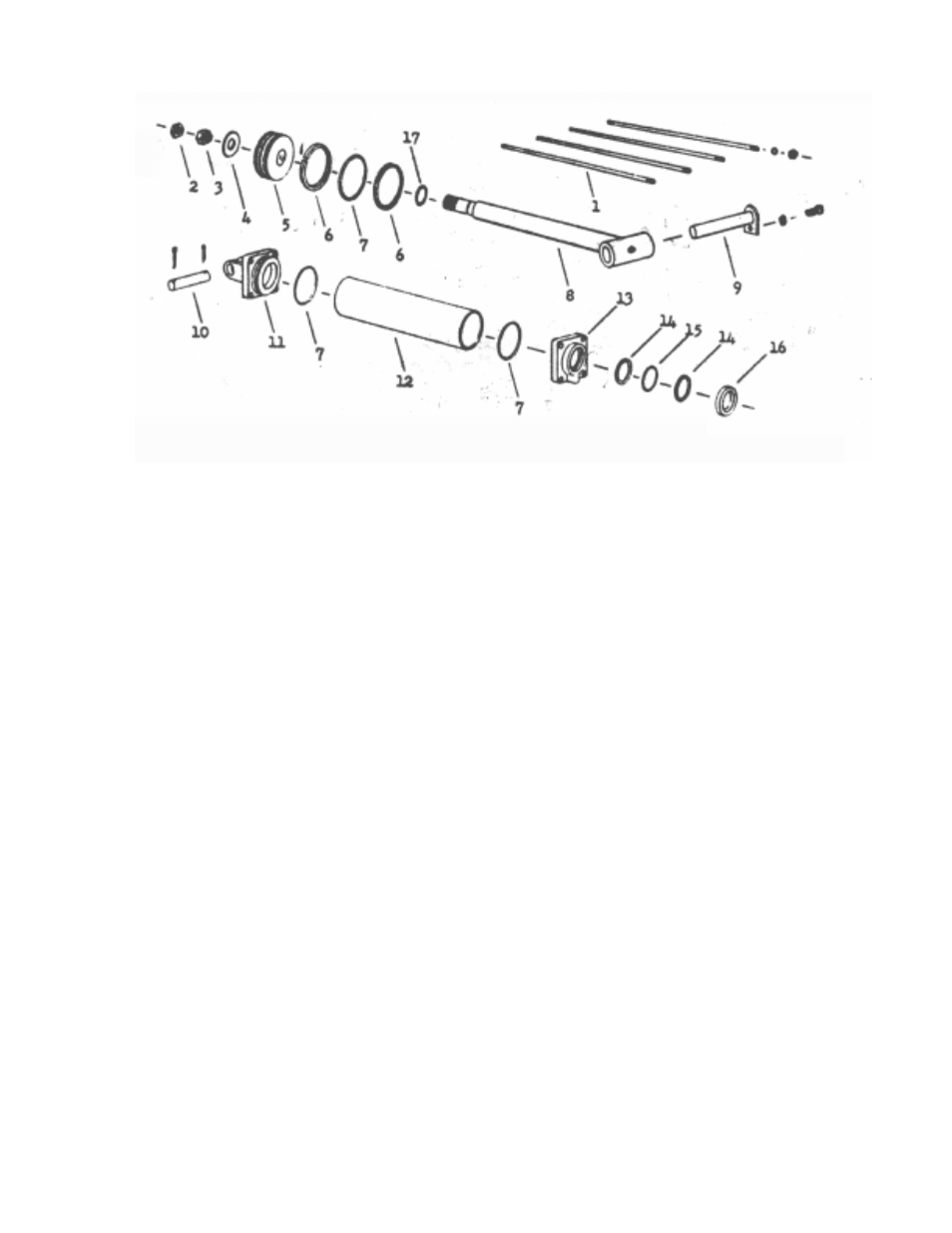

HYDRAULIC CYLINDER
PARTS LIST
Model FEQS-4 Hydraulic Cylinder, 3" x 16"
Model B-11 Scraper (Used up to serial no. 2628)
Key No. Part No. Description
1 PMAP-10215 Tie rod 1/2"
Lockwasher 1/2"
Nut, 1/2" NF
2 Jam nut, 7/8" NF
3 Nut, 7/8" NF
4 Flat washer, 7/8"
5 P4-1900 Piston 3 OD
6 PMAP-R-37 Cast ring 3 OD
7 PMAP-O-37 O-ring 3 OD
8 P13-FEQS-4 Piston rod
9 228 Pin, 1" x 5-1/4"
Capscrew, 1/2" x 1 NC
Lockwasher, 1/2"
10 230 Pin, 1" x 3-1/2"
Cotter, 3/16" x 1-1/2"
11 B1-1900 Base clevis end
12 T1-FEQS-4 Cylinder tube 3 ID
13 G1-1900 Gland
14 PMAP-W-25 Backup washer, 1-3/8" ID
15 PMAP-O-25 O-ring 1-3/8 ID
16 PMAP-S-CP-25 Wiper seal, 1-3/8" ID
17 PMAP-O-15 O-ring, 1 OD
PMCK-FEQS-4 Packing kit containing:
2 PMAP-R-37
3 PMAP-0-37
2 PMAP-W-25
1 PMAP-0-25
1 PAMP-S-CP-25
1 PMAP-0-15
