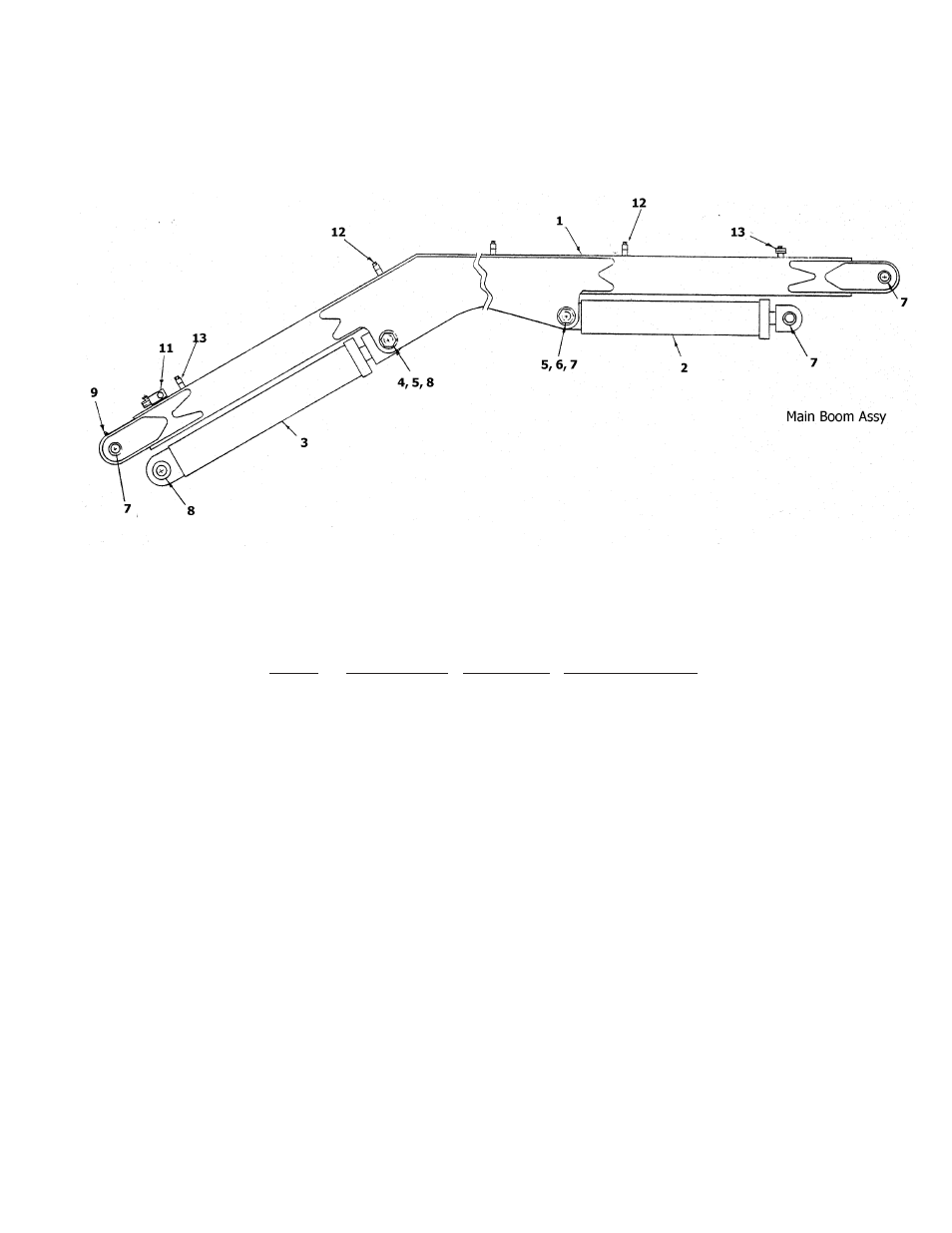

MAIN BOOM ASSEMBLY

ITEM

REQUIRED PART NO DESCRIPTION

1

1

4F14113

Main Boom

2

1

2A11650

Cylinder, 5 x 28

3

1

2A14062

Cylinder, 6 x 35

4

1

2F11072

Pin

5

2

1P10271

Locknut, 1-1/2 NF

6

1

2F13473

Pin

7

6

1P10272

Ball Bushing, 1-3/4"

8

2

1P10273

Ball Bushing, 2"

9

4

Grease Fitting

11

1

1P11432

Cushion Valve

12

4

1P14030

Pipe Clamp, 4-hole
