CS18HD

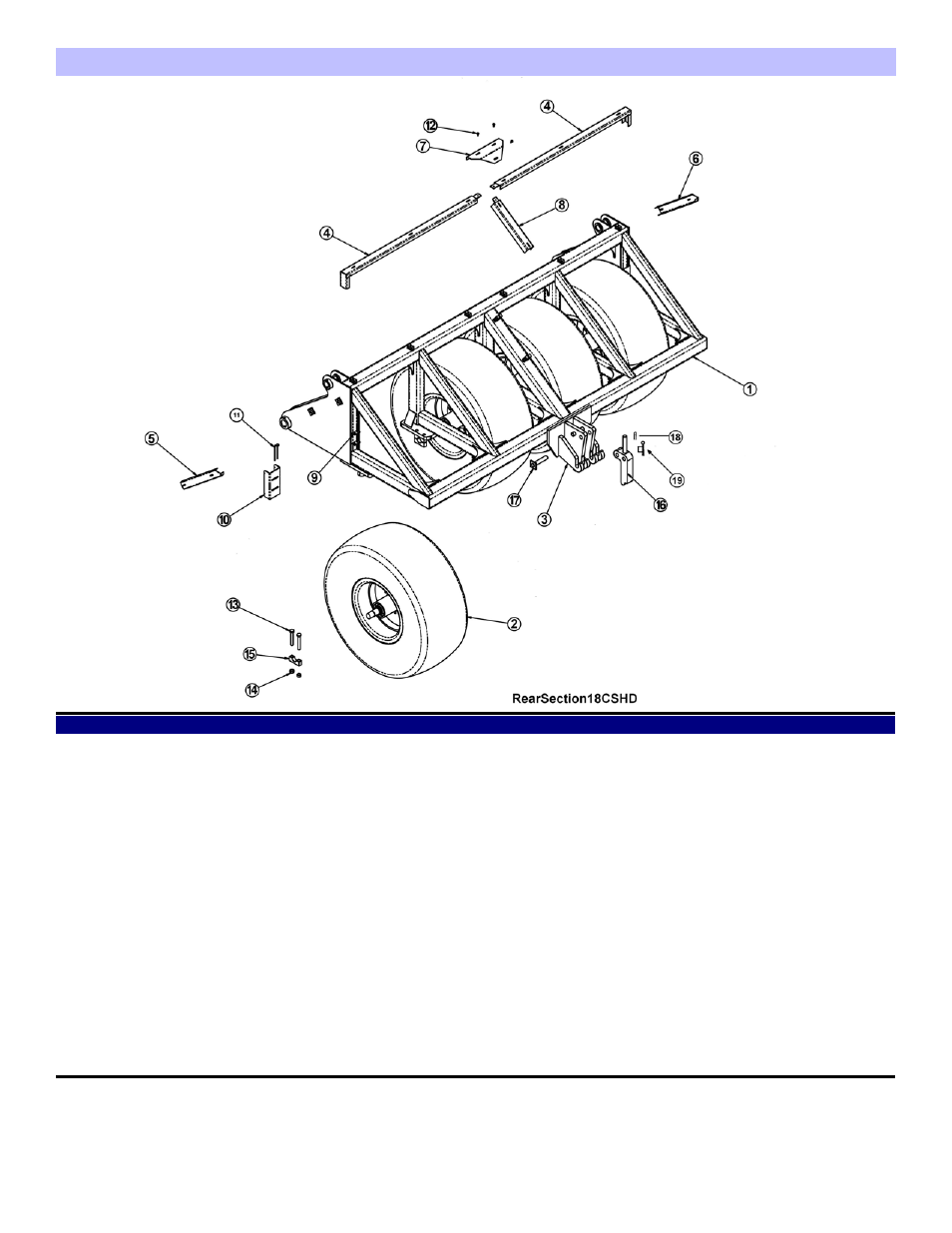

Rear Section Assembly
Key Number Part Number Description
1 600025 Frame Assembly-Rear Section
2 600022 Wheel Assembly
3 600018 Quick Hitch
4 600021 Guard-Rear Section Top
5 500408 Guard-Side LH
6 500405 Guard-Side RH
7 500409 Guard-Top Center
8 600020 Guard-Rear Center
9 A125227 Grommet
10 500415 Transport Lock-Rear Section
11 A125226 Quick Release Pin
12 AFB-00094 3/8 NC Flange Head Bolt
13 AFB-00017 1" NF x 6.5 Lg. Hex Bolt
14 AFN-00001 1" NF Locknut
15 500205 Axle Clamp Block
16 600019 Assembly-Locking Lug
17 A123321-98 Pin-Quick Hitch
18 AFP-00001 Cotter Pin
19 A125006 Safety Snap Pin
Ashland Industries Toll Free: 877-634-4622 Fax: 715-682-9717
Page #11
