I-155 XL2
Bowl & Frame Assembly Part No. A123309
Blade Bolts Required:
Qty Bolts
A123330 (& Ser) PB9P-NC-088-0275 (12) AFN-00019
A123332L & R
PB9P-NC-088-0275 (4) AFN-00019
PB9P-NC-088-0225 (2)
A123357
AFB-00018 (4) AFN-00012

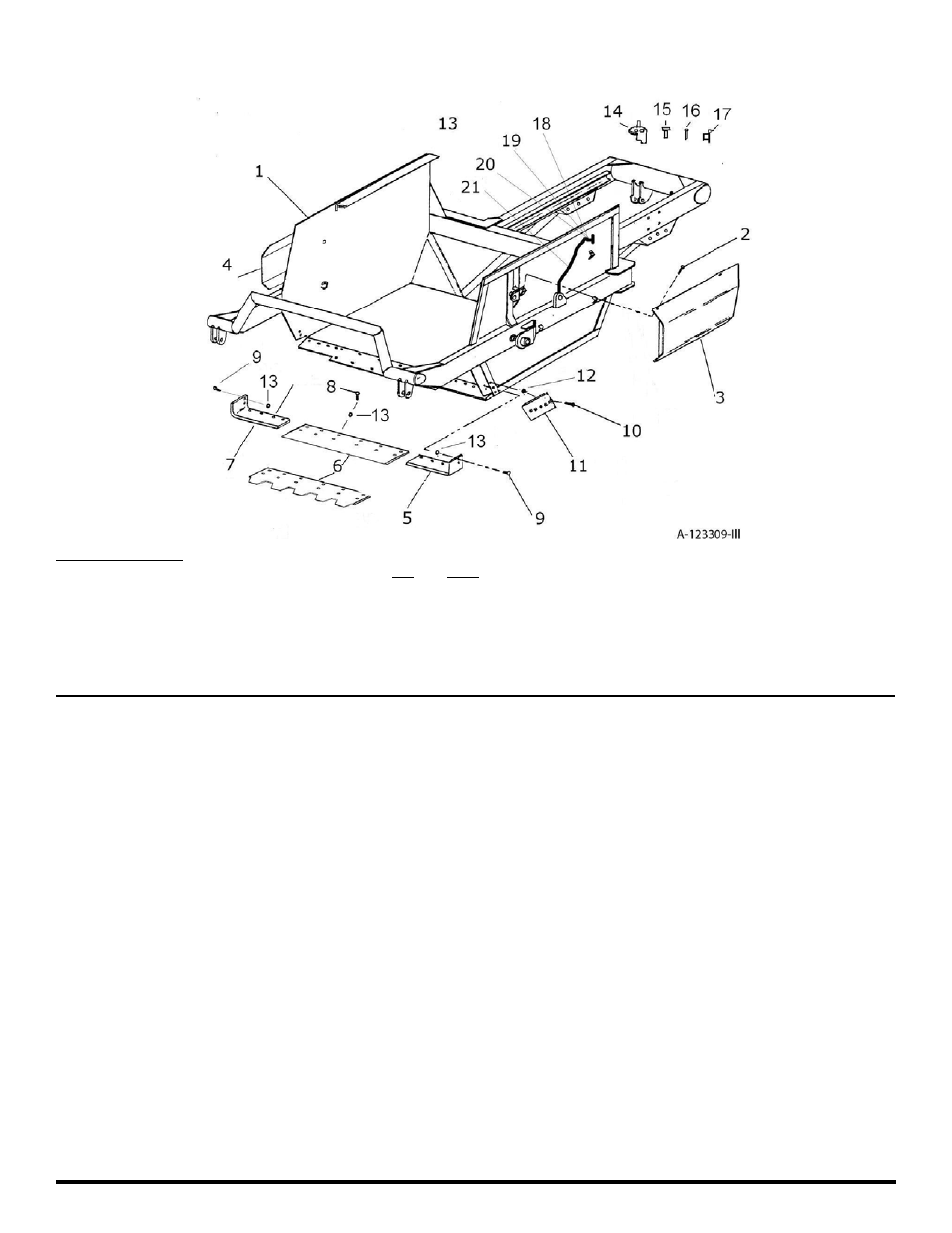

Key Number Part Number Description
1 A123309 "Bowl and Frame, Model I-155
2 AFB-00094 Flanged Bolt: 3/8 NC X 1"
3 A123309-62L Cylinder Guard - Left Hand
4 A123309-62R Cylinder Guard - Left Hand
5 A123332L Left Cutting Edge
6 A123330 Center Cutting Edge, Straight 1-1/8” x 12” x 63”
A123330-SER "Center Cutting Edge, Serrated 1-1/8” x 12” x 63”
7 A123332R Right Cutting Edge
8 PB9P-NC-088-0275 Plow Bolt: 7/8 NC X 2-3/4” -> 12 Required
10 PB9P-NC-088-0225 Plow Bolt: 7/8 NC X 2-1/4”
10 AFB-00018 Bolt, 1” NC x 3” long, (5 per Blade Required)
11 A123357 Bank Shaver/router bit Reversible, L & R
12 AFN-00012 Nut: 1” NC (5 per Blade Required)
13 AFN-00019 Nut: 7/8” NC -> 6 Required
14 A123309-93 3" Locking Lug for Rear Hitch
15 A123309-96 Pin for Lockiing Lug (2)
16 AFP-00001 Pin, Cotter, 1/4" X 3
17 A125006 Safety Snap Pin
18 A125019 Grease Fitting 1/4 x 28.54 Long
19 A125026 Bulkhead Nut
20 A123309-89 Single Hole Tab
21 A125022 18” Grease Line
