Ashland I-110TS2 - Manual (Page 9)

I-110 TS2

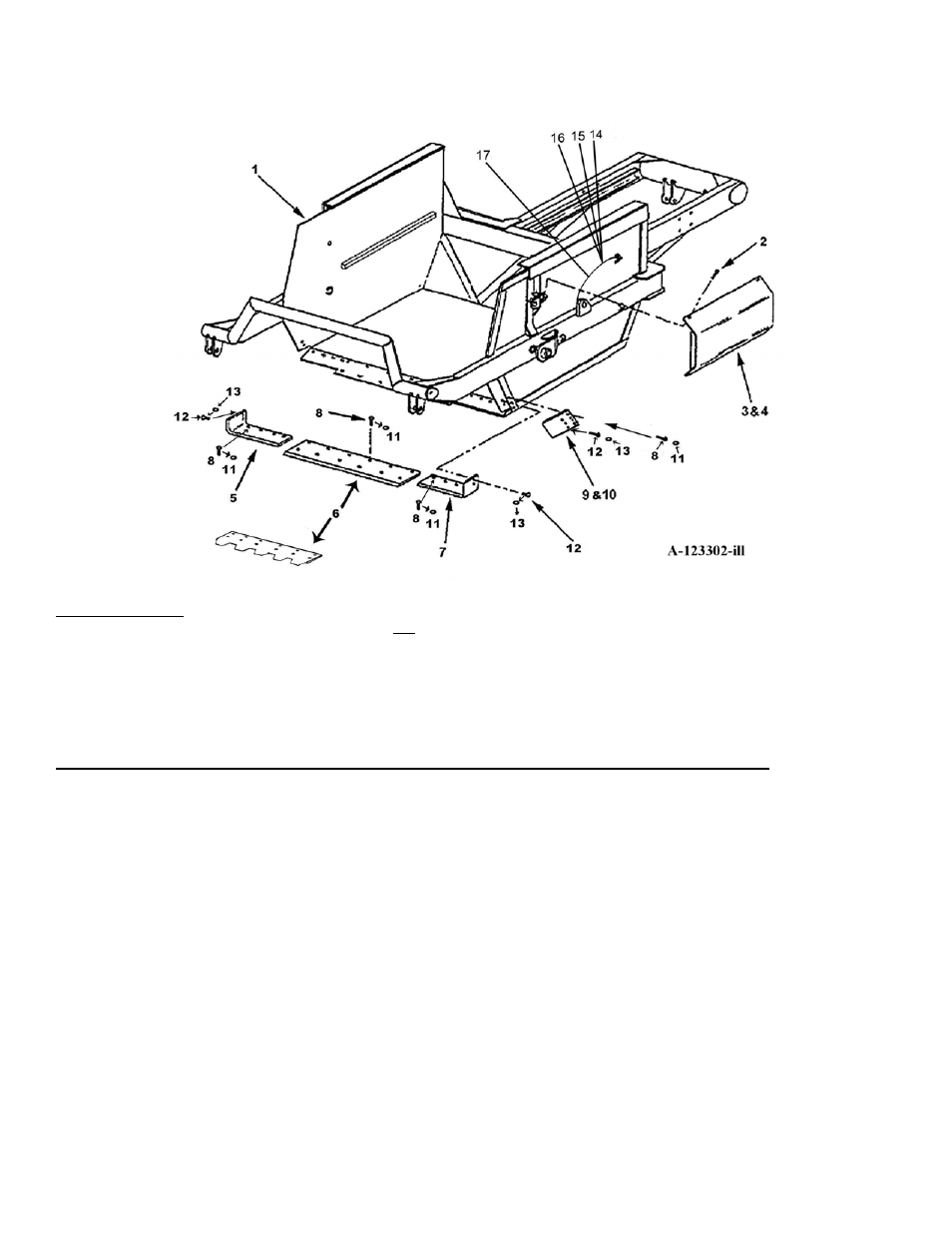

Bowl & Frame Assembly
Blade Bolts Required:
Qty
A123331 (& Ser) PB9P-NC-088-0275 (12)
A123332L & R
PB9P-NC-088-0275 (4)
PB9P-NC-088-0225 (2)
A123338L & R
PB9P-NC-088-0275 (4)
PB9P-NC-088-0225 (3)
Key Number Part Number Description
1 A123302 Bowl and Frame I-110TS
2 AFB-00094 Flange Bolt, 3/8” NC x 1”
3 A123309-62L Apron Cylinder Guard-Left
4 A123309-62R Apron Cylinder Guard-Right
5 A123332R Right cutting edge, 8”
6 A123331 Center cutting edge, 12” x 54”
A123331SER Optional Serrated cutting edge
7 A123332L Left cutting edge, 8”
8 PB9P-NC-088-0275 Plow bolt, 7/8” NC x 2-3/4”
9 A123338L Left Bank Shaver Side Blade
10 A123338R Right Bank Shaver Side Blade
11 AFN-00019 Nut: 7/8” NC
12 PB9P-NC-088-0225 Plow bolt, 7/8” NC x 2-1/4”
13 AFN-00026 Nut: 7/8” NC Jam
14 A125019 Grease Fitting
15 A125026 Bulkhead Nut
16 A123309-89 Single Hole Tab
17 A125022 18" Grease Line
Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717
Page #8
