Ashland 70S User Manual

Page 12

background image

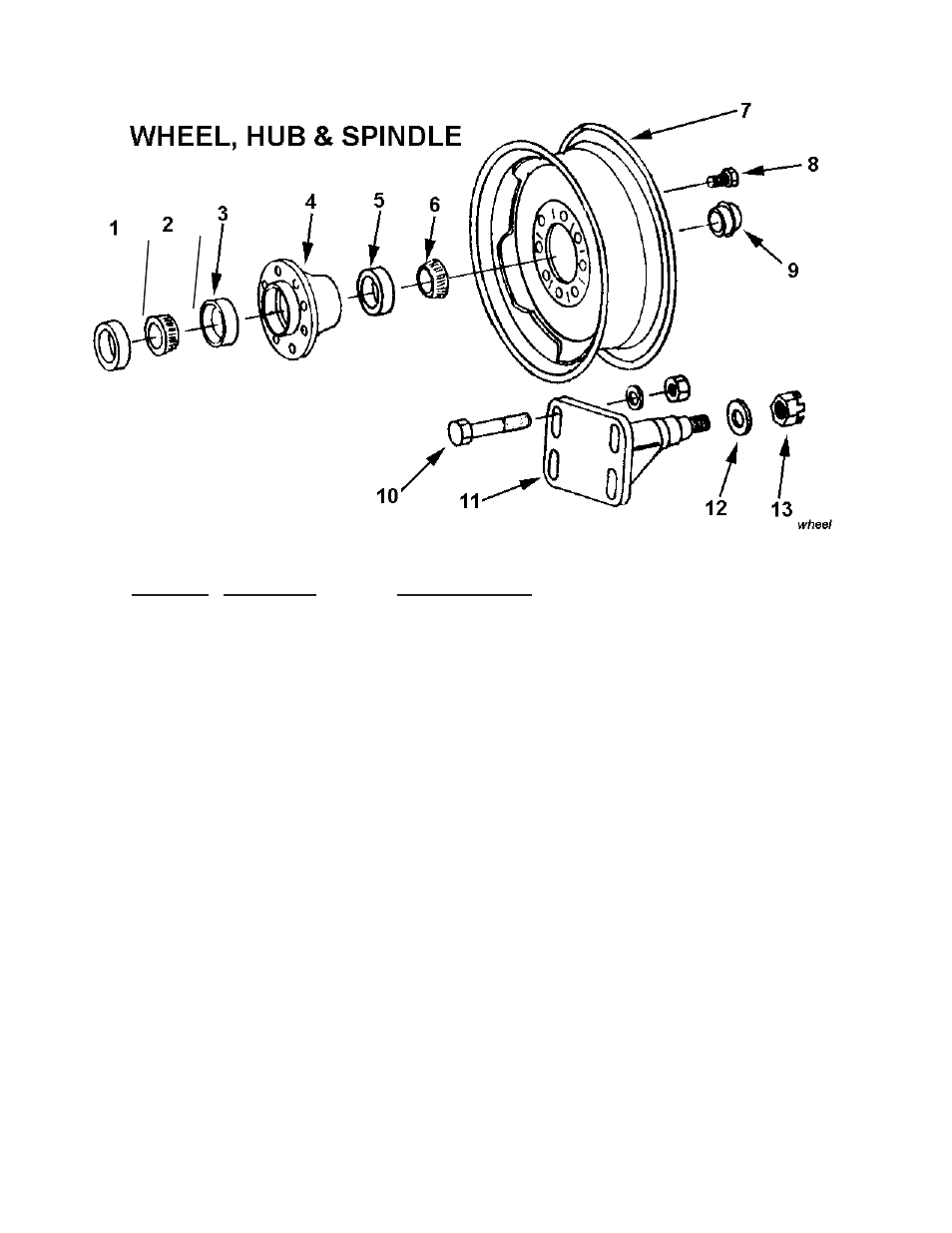

KEY NO. PART NO.

DESCRIPTION

1

A4512

Grease seal ( National 415082 )

2

A4513

Bearing cone (inner) ( Timken 3784 )

3

A4514

Bearing cup (inner) ( Timken 3720 )

4

A4515

Hub (less bearings)

5

A2233

Bearing cup (outer) ( Timken 14276 )

6

A4516

Bearing cone (outer) ( Timken 14137A )

7

*A4521A

Wheel, 20" D.C. (up to sn 20667) Dec 2002

*A125047

Wheel, 22.5” x 8.25 (sn 20668 & up) Jan 2003

A6022

Wheel, 16" x 11" DC (optional)

8

A4519

Wheel bolt, 9/16" NF

9

A2235

Hub cap

10

AFB-00004

Bolt, 3/4" x 6" w/ flat washer & nut

11

A4520

Spindle weldment

12

A2239

Washer, special, 7/8" flat

13

AFN-00005

Nut, 7/8" NF castellated

* (Serial number

break)

12
