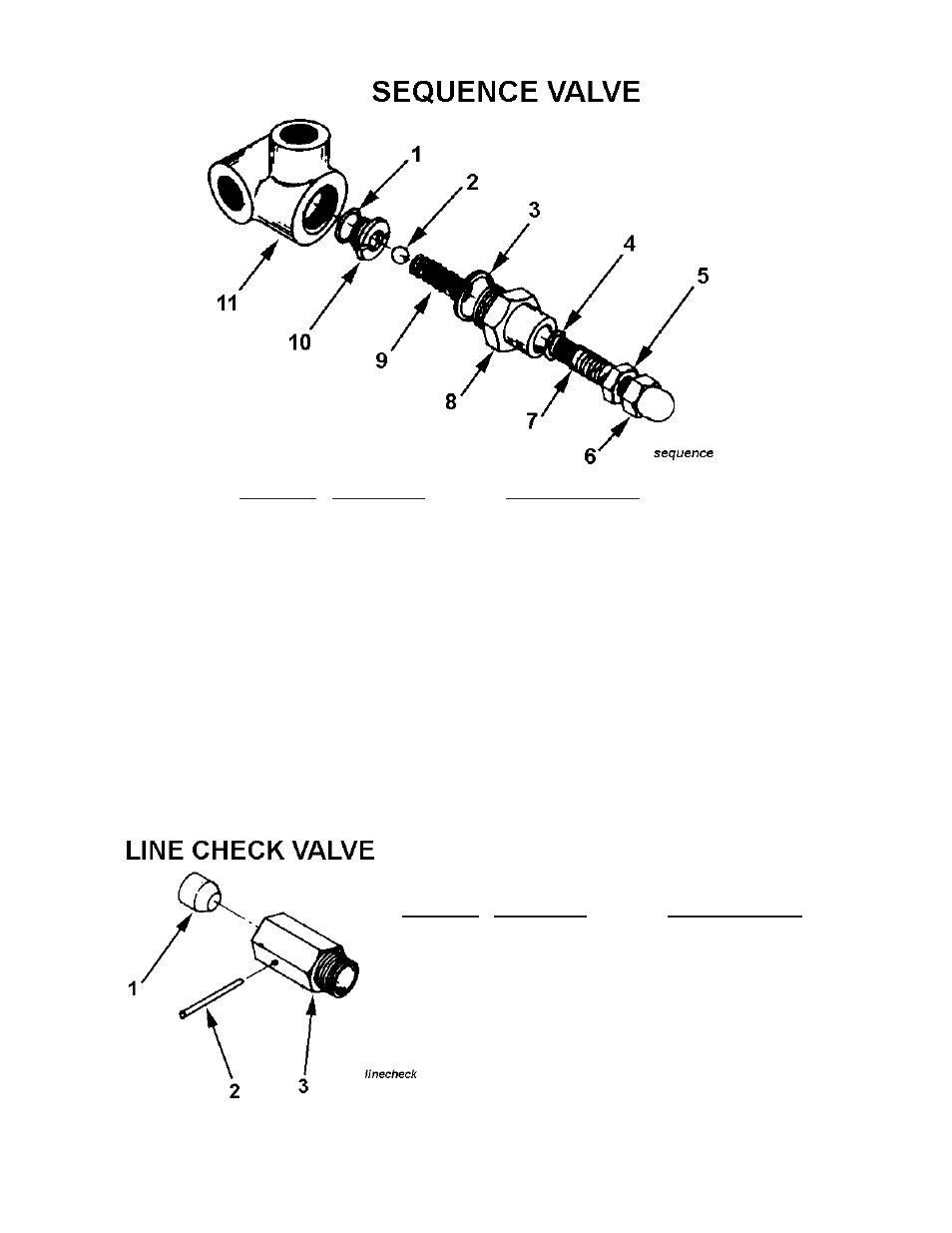

KEY NO. PART NO.

DESCRIPTION

1

A600H25

Check poppet

2

A600H27

Taper pin

3

A600H26

Valve body

A600H28

Complete valve assembly

KEY NO. PART NO.

DESCRIPTION

1

A600H22

Relief seat O-ring

2

A600H20

Ball

3

A600H18

Valve body gasket

4

A600H16

Adjusting screw O-ring

5

A600H14

Jam nut

6

A600H13

Acorn cap

7

A600H15

Adjusting screw

8

A600H17

Valve body

9

A600H19

Spring

10

A600H21

Relief seat

11

A600H23

Valve housing

A600H24

Complete valve assembly

14
