Ethernet Switch MX4-100TX
10/100BASE-TX
american fibertek
2
3
4
SPD
LI
NK
/A
CT
1
PW
R
DC IN
5V
MX4-100TX
MX4 SERIES POWER SOURCE
THIS PRODUCT SHALL BE POWERED BY A LISTED CLASS 2 POWER SUPPLY ONLY.
MX4 series units require a +5VDC power source for proper operation. The DC input is diode protected.
In the USA and in Canada a 5 Volt DC power supply is supplied with this unit. The negative side of the
power input is directly connected to ground. ANSI/NFPA 70 Class 2 wiring is recommended.
MX4 SERIES POWER CONNECTION
Power is supplied to the MX4 series units via a connection on the right side of the unit (refer to the

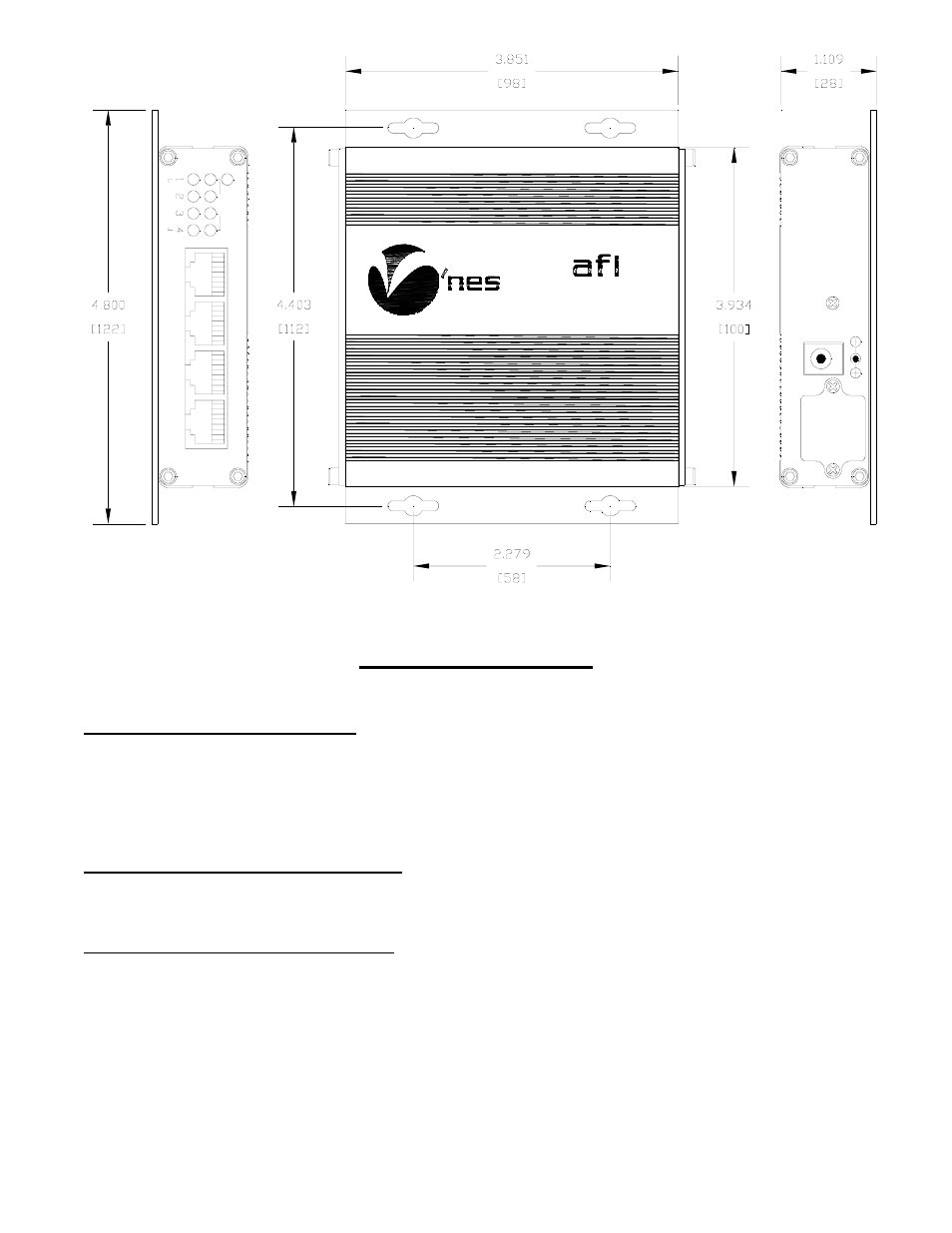

drawing above).
MX4 SERIES DATA CONNECTIONS
The UTP Ethernet input/output connections are made via RJ45 plugs on the left side of the unit. A
maximum CAT5 wire length of 100 meters is permitted.
