FIBER CONNECTION
The fiber optic connection is made via a ST connector located on the back of the unit. Be sure to allow
sufficient room for the required minimum bend radius of the fiber cable used.
VIDEO OUTPUT CONNECTIONS
The video output connections are made via BNC connectors on the back of the unit. The 75
 video
outputs can be looped through typical baseband video inputs of switchers, recorders and other
equipment as required. For proper operation, the outputs must be terminated with 75
. For optimum
performance the video cables should be the shortest length of coax practical.
DATA INPUT / OUTPUT CONNECTIONS

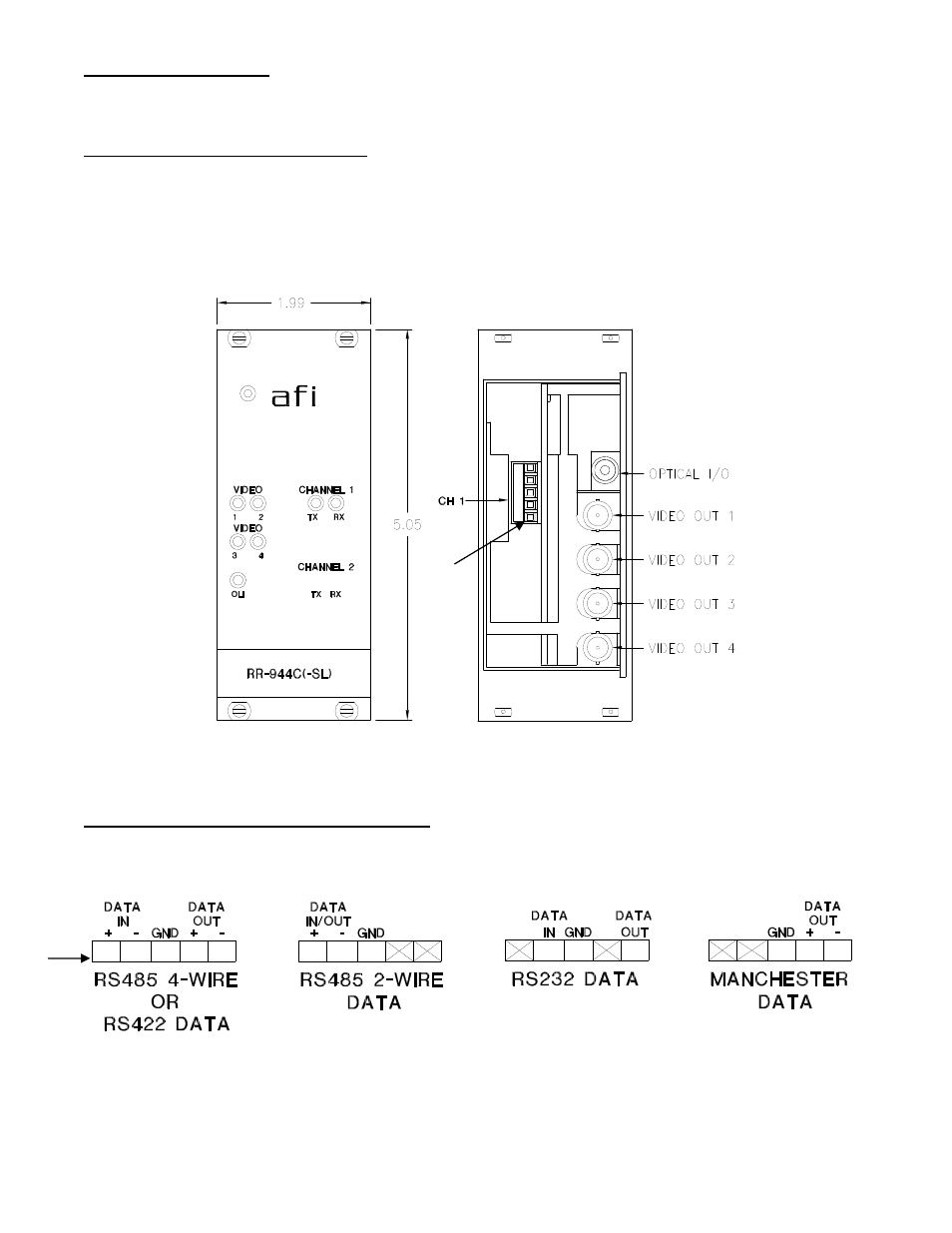

Data input and output connections are made via the terminal block. See the drawings below for proper
orientation of input and output connections.
Pin 1
Pin 1
